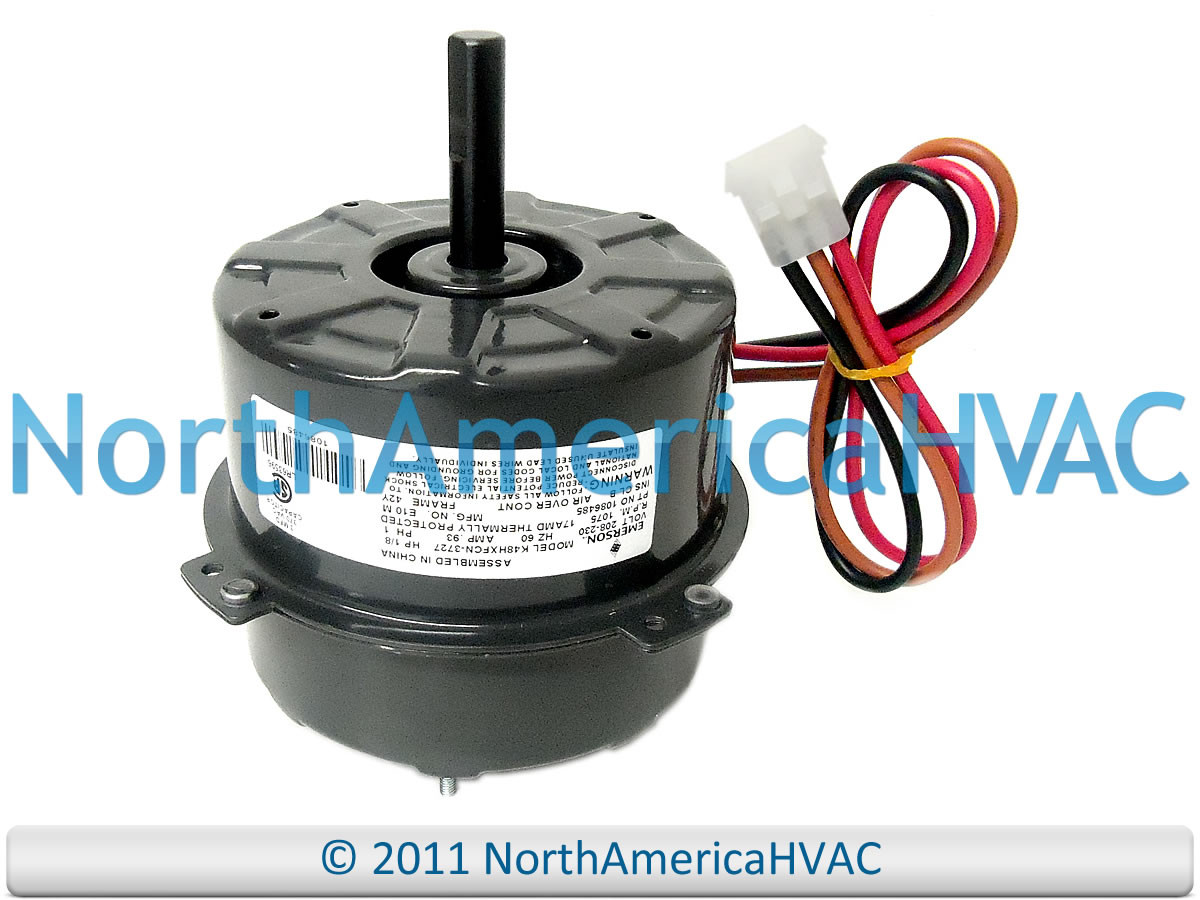

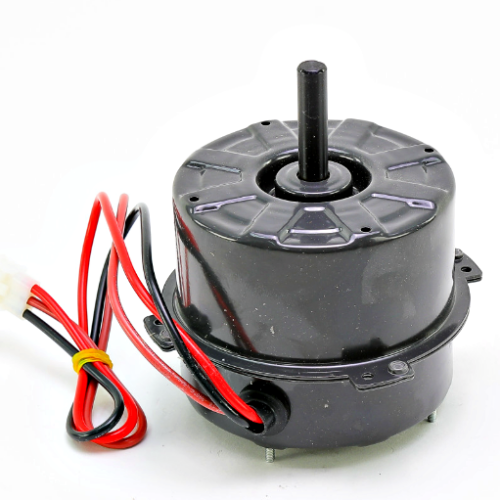

Heil 1086485 Condenser Fan Motor 1/8 HP 230V

The Heil 1086485 is an OEM replacement condenser fan motor designed for residential and light commercial HVAC systems. This permanent split capacitor motor delivers reliable performance for ICP, Heil, Tempstar, Comfort Maker, Arcoaire, Day & Night, and Keeprite air conditioning units.

Key Specifications:

• 1/8 horsepower (0.125 HP)
• 208-230V AC, single phase operation
• 1075 RPM motor speed
• 0.93 amp current draw
• 42Y NEMA frame size (5 inch diameter)
• Clockwise rotation when viewed from shaft end
• 2 inch shaft extension
• Sleeve bearing construction
• Through bolt mounting configuration
• Clamshell housing design
• 3-wire connection with plug connector included

Features:

• Direct OEM replacement part ensuring proper fit and performance
• Permanent split capacitor design for efficient operation
• Pre-wired with power plug for simplified installation
• Engineered for continuous duty operation across varied ambient temperatures
• Single speed operation optimized for condensing unit applications

This motor also cross-references to Emerson part number K48HXFCN-3727 and may be listed as HQ1086485 or HQ1086485EM in some applications. Compatible with numerous NAC, NHP, A-series, and H-series condensing unit models.
