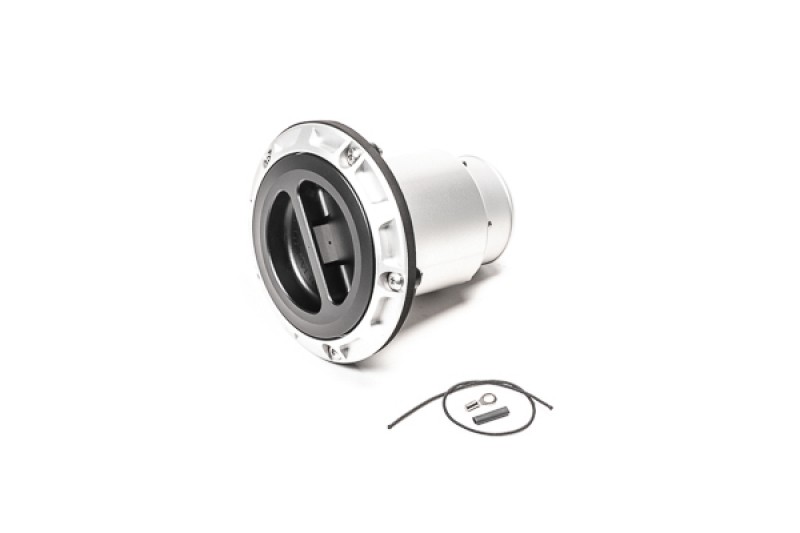

RADIUM Engineering 20-1205-V Remote Mount Fuel Filler 2.25in Vented

The RADIUM Engineering 20-1205-V is a remote mount fuel filler designed for motorsports and high-performance applications where the fuel filler needs to be relocated from the fuel cell or tank to an external surface such as a fender or body panel. This vented system features roll-over protection to prevent fuel spillage if the vehicle becomes inverted.

Key Features:

• Remote mounted fuel filler point with standard screw-off vented cap
• 2.25-inch hose barb connection on backside for fuel filler hose
• Vented cap with integrated roll-over protection valve
• Requires 77mm (3.03-inch) mounting hole
• 4.75-inch flange outer diameter with 4.25-inch PCD bolt pattern
• Anodized aluminum construction with stainless steel hardware
• Compatible with all fuel types including unleaded/leaded gasoline, diesel, AV gas, methanol, ethanol, E15, and E85
• Ozone and flame-resistant gasket included
• Can be upgraded to dry break system with Radium 20-0549-V (sold separately)

What's Included: Vented cap with roll-over protection, flanged fill neck with 2.25-inch hose barb, ozone/flame resistant gasket, anodized aluminum nut ring, and stainless steel M5 mounting bolts. Note that filler hose and tank connection accessories are not included and must be purchased separately.

Installation Note: This product is not CARB approved and is not legal for sale or street use in California and CARB-compliant states. Designed for racing and off-road applications only.
