Pacific Performance Engineering 328053500 10R140 Deep Transmission Pan Ford Super Duty 6.7L Powerstroke

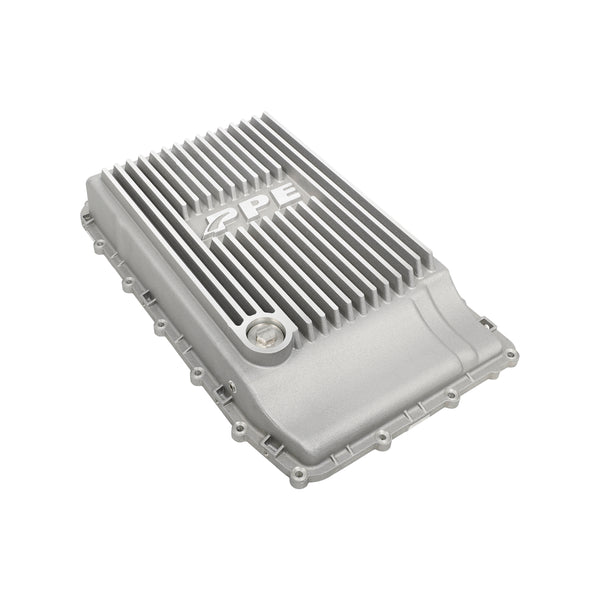

The Pacific Performance Engineering 328053500 Heavy-Duty Cast Aluminum Deep Transmission Pan is designed to protect and extend the life of the 10R140 transmission in 2020-2025 Ford Super Duty 6.7L Power Stroke diesel trucks. Excessive heat is the leading cause of transmission failure, as rising temperatures decrease fluid viscosity and weaken the protective lubricating film on gears and bearings. This premium PPE transmission pan dramatically increases cooling capacity and fluid volume to keep your 10-speed transmission running cooler and stronger.

Key Features:

• Adds 8 quarts of additional fluid capacity for superior thermal management and heat absorption
• Cast from high-grade A356.0-T6 heat-treated aluminum alloy for exceptional strength and thermal conductivity
• Deep external cooling fins (3/4-inch tall) maximize heat-wicking surface area and enhance impact resistance
• Internal baffles (1-inch deep) increase fluid contact with aluminum surfaces for improved heat transfer and reduce fluid sloshing
• Cross-bracing structure formed by external fins and internal baffles provides superior strength and load distribution
• Intelligent flat-bottom design allows complete fluid drainage during service
• 304 stainless steel drain plug with high-temperature neodymium magnet captures harmful ferrous metal particles
• CNC-machined gasket groove ensures precise OEM fitment with factory rubber gasket
• Includes fluid level check standpipe and fluid fill adapter for simplified maintenance
• Cast-in gussets provide additional upper oil pan flange support and increased rigidity

The 2020 and newer Ford Super Duty Power Stroke delivers impressive performance with 1,050 lb-ft of torque and up to 43,000 pounds GCVR capability. This increased power generates significant transmission heat and load. The PPE cast aluminum pan provides far superior heat dissipation and impact resistance compared to the fragile factory plastic pan, which must be discarded with every service. This permanent upgrade makes future transmission fluid changes quick and mess-free with its convenient drain plug system.

What's Included: Heavy-duty cast aluminum transmission pan, fluid fill adapter and plug, fluid level check standpipe, magnetic drain plug with Viton O-ring, and all mounting hardware.

Fitment: 2020-2025 Ford F-250, F-350, and F-450 Super Duty with 6.7L Power Stroke diesel engine and 10R140 transmission. Uses OEM rubber gasket and filter for simplified installation.
