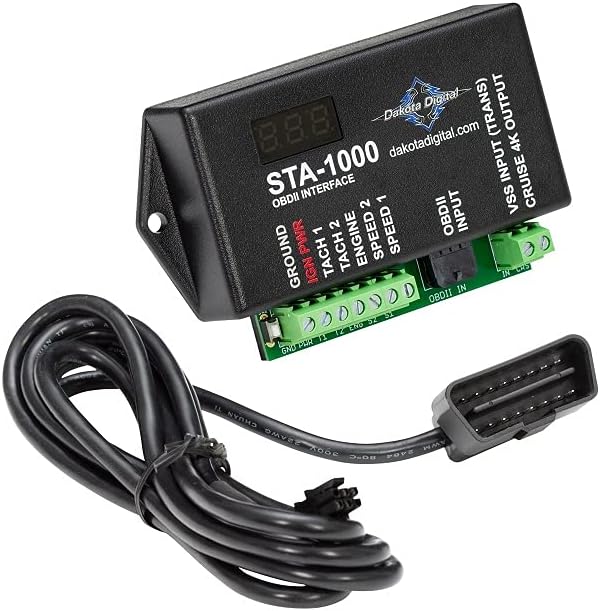

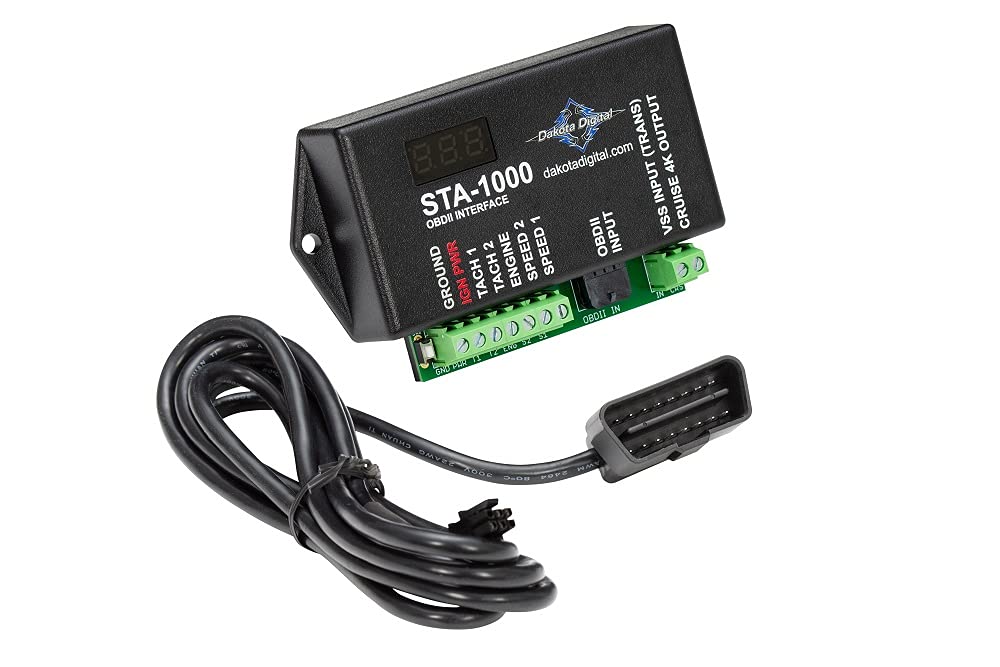

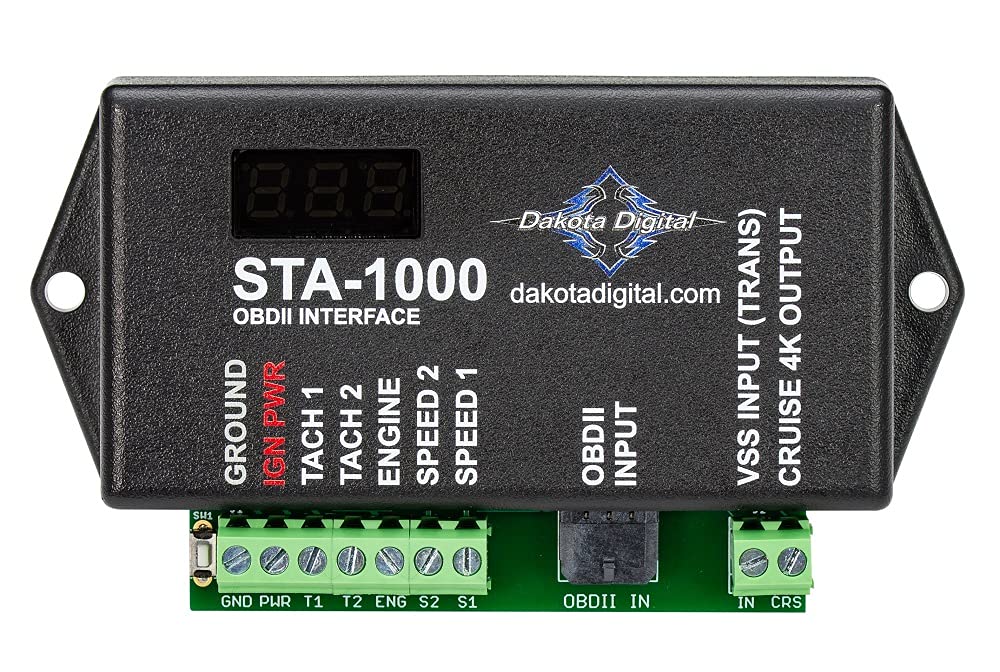

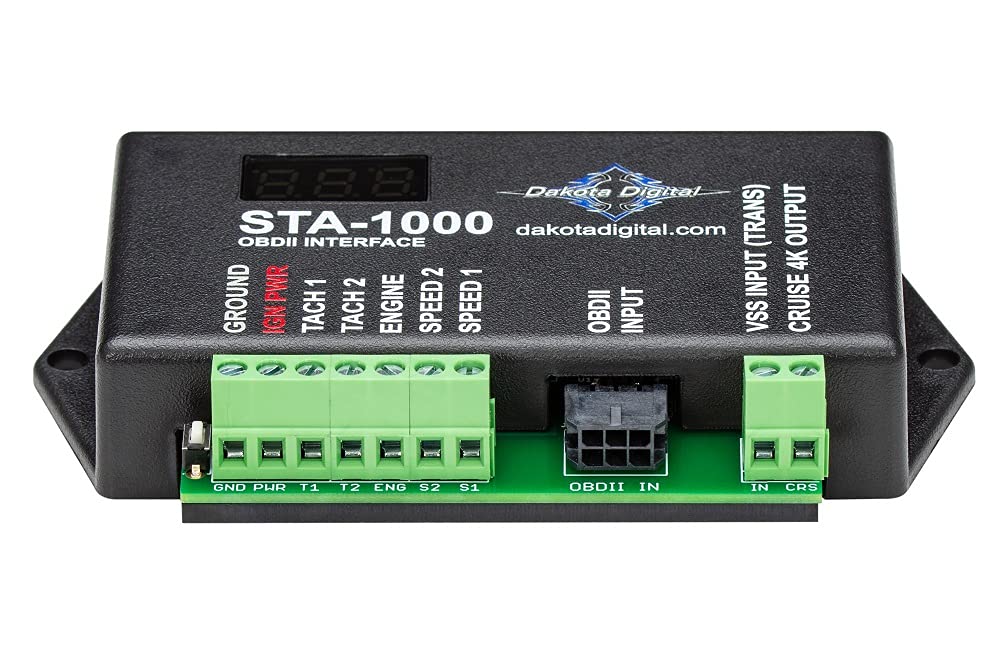

Dakota Digital STA-1000 OBD-II Speedometer Tachometer Interface Module

The Dakota Digital STA-1000 is an OBD-II interface module designed to simplify late-model drivetrain integration with aftermarket gauge systems. This compact module plugs directly into your vehicle's OBD-II diagnostic connector and converts digital engine data into traditional analog signals for speedometer, tachometer, and check engine light outputs.

Key Features:

• Provides user-adjustable speedometer and tachometer outputs for aftermarket instruments
• Compatible with OBD-II protocols including SAE J1850 VPW, SAE J1850 PWM, and ISO 15765 CAN
• Works with GM 1996-up, Ford 1996-up, and select Chrysler 2000-up OBD-II systems
• Supports all vehicles 2008 and newer using CAN OBD-II protocol
• Check engine light output provides grounded signal to activate aftermarket warning lights
• Includes fixed VSS (Vehicle Speed Sensor) output for aftermarket cruise control systems
• Compact design measures 4-3/4" x 3" x 1" for easy concealment in vehicle interior
• User-calibrated outputs match virtually any aftermarket gauge configuration

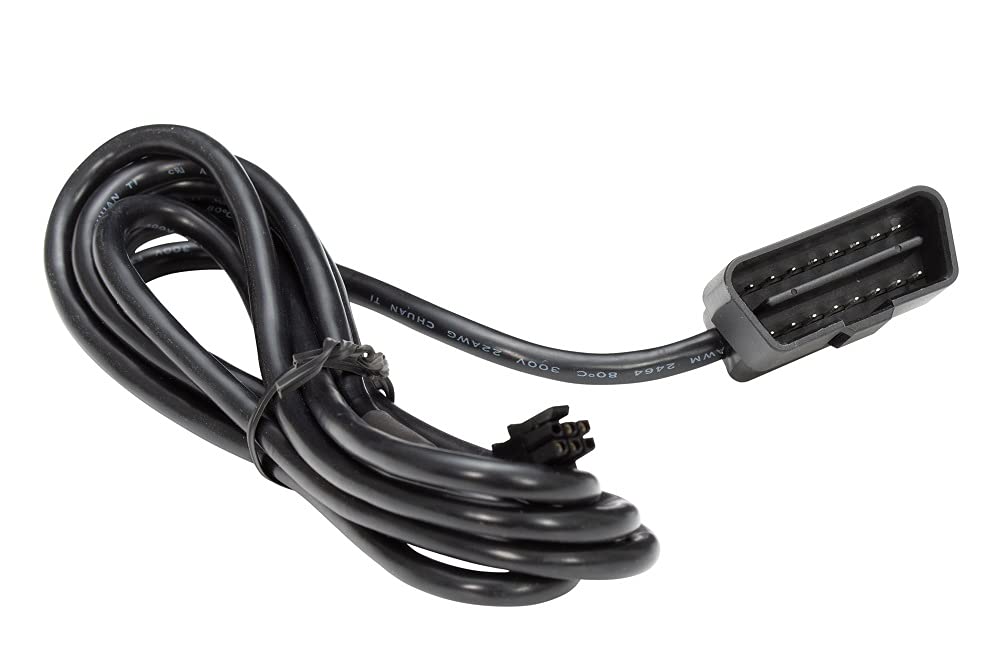

The STA-1000 eliminates the need to locate and tap into factory wiring harnesses for speed and RPM signals. Simply connect the included OBD-II cable to your vehicle's diagnostic port, calibrate the outputs using the built-in controls, and connect to your choice of aftermarket gauges. This module must be mounted inside the vehicle interior, not in the engine compartment. Note that vehicles using ISO 9141-2 or J1939 protocols are not compatible with this interface.
