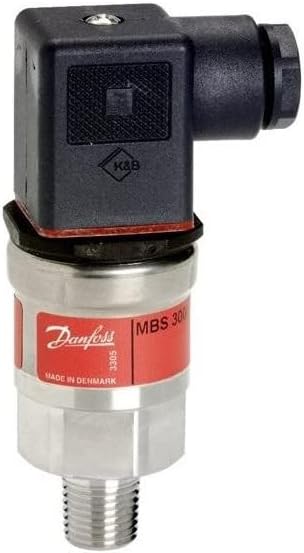

Danfoss 060G1143 MBS 3000 Pressure Transmitter 0-200 PSI 4-20mA 1/4" NPT

The Danfoss 060G1143 is a compact MBS 3000 series pressure transmitter engineered for reliable performance in demanding industrial and hydraulic applications. This sealed gauge pressure sensor measures pressure ranges from 0 to 200 PSI (0 to 13.8 bar) and delivers a standard 4-20mA current output signal for integration with control systems and monitoring equipment.

Key Features:

• MBS 3000 series compact design for industrial applications
• Pressure range: 0-200 PSI (0-13.8 bar) sealed gauge
• 4-20mA current output signal for reliable transmission
• 1/4"-18 NPT pressure connection for standard installations
• DIN-plug electrical connection for secure wiring
• Stainless steel construction (AISI 316L) for corrosion resistance
• Excellent vibration stability and robust construction
• High degree of EMC/EMI protection for harsh environments
• Resistant to pressure peaks and liquid hammer

Built with acid-resistant stainless steel wetted parts and enclosure, the MBS 3000 transmitter delivers accurate pressure measurement in severe conditions. The compact design and industry-standard connections make installation straightforward while the sealed gauge reference ensures consistent performance across varying atmospheric conditions.
