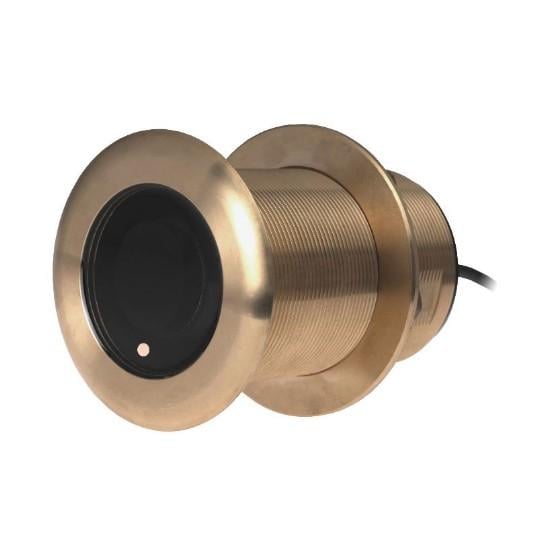

Airmar B60-20-MM Bronze Low Profile Thru-Hull Transducer 20° Tilt 600W 50/200 kHz

The Airmar B60-20-MM is a low-profile bronze thru-hull transducer with a 20° tilted element, built as a Mix and Match model for use with a separately selected Mix and Match cable. It is a 600 W, dual-frequency (50/200 kHz) depth and water temperature transducer for fiberglass or wood hulls.

The ceramic element is fixed at an angle inside the housing. When the transducer is installed nearly flush with the hull, the tilt corrects for the hull's deadrise angle. This points the beam straight down for strong echo returns and more accurate depth readings.

Key Features:

• Depth and fast-response water temperature sensing
• 600 W power rating
• Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Low-profile bronze housing extends only 5 mm (3/16") outside the hull
• No effect on your boat's running performance
• Well suited to center-console or trailered boats
• Tilted Element thru-hull mounting

Specifications:

• Power rating: 600 W
• Housing: Bronze
• Functions: Depth, temperature
• Hull material: Fiberglass or wood
• Max deadrise angle: 24°
• Max vessel LOA: up to 8 m (26')
• Hole size: 60 mm (2-3/8")
• Usable shaft length: 68.5 mm (2.70")
• Acoustic window: Urethane
• Conventional beam: 45°/12°
• Frequency: Conventional dual frequency
• Tilted element: Yes
• Retractable housing: No
• Common use: Leisure/yachting, fishing
• Weight: 1.4 kg (3 lbs)

A Mix and Match cable is required and must be selected separately. A stainless steel housing version (SS60) is available for use with all hull materials.
