Camburg Engineering CAM-020104 Rear Axle Housing Brake Caliper Mounting Tabs 4.00" Tube 14" Rotor

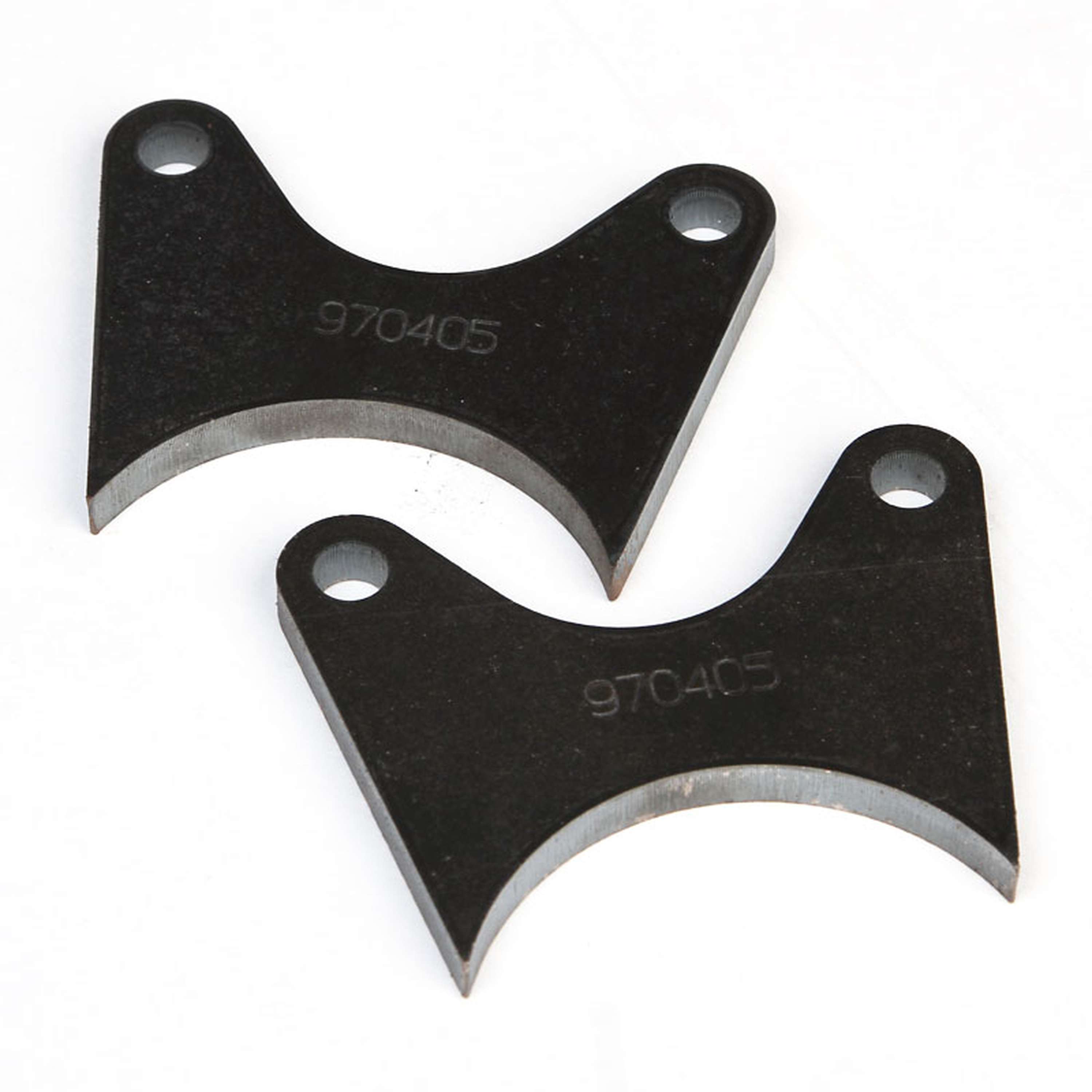

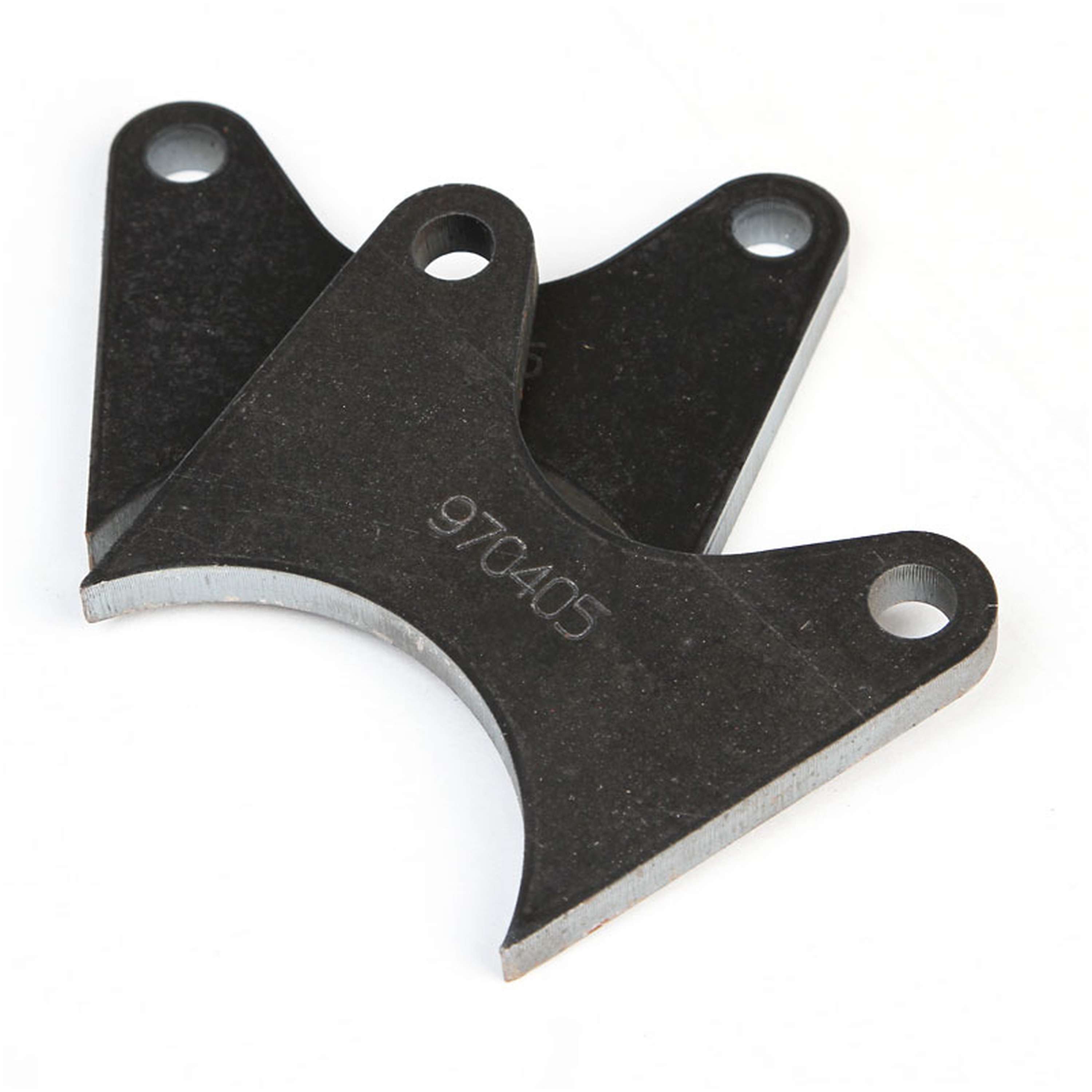

The Camburg Engineering CAM-020104 brake caliper mounting tabs are precision-engineered components designed for custom rear axle housing builds. These tabs are CNC laser cut from thick 3/8" steel to ensure exceptional strength and durability for high-performance and off-road applications.

Key Specifications:

• Axle housing tube size: 4.00 inches
• Rotor diameter: 14 inches
• Caliper mounting spacing: 3.50 inches (Wilwood spacing)
• Through-bolt design using 7/16" bolts
• Material: 3/8" thick steel plate
• Sold as a pair

Installation and Compatibility:

These tabs are designed for Wilwood's 3.5" lug spacing and can be MIG or TIG welded to your rear axle housing tubes. They also work with radial mount calipers with the proper machined adapters.

Compatible Brake Calipers:

• Wilwood 4 Piston Superlite
• Wilwood 6 Piston Superlite (with adapter #250-6309)
• Wilwood Aero6 (with adapter #250-14046)
• Wilwood Aero6-ST (with adapter #250-14046)

These are the same professional-grade caliper tabs used by Camburg Engineering when building their custom rear axle assemblies, ensuring proven performance and fitment for serious off-road and racing applications.
