Camburg Engineering CAM-010061 4130 TT Bolt-on Spindle Snout Block

The Camburg Engineering 4130 TT Bolt-On Spindle Snout Block is designed for building custom spindles and uprights using a bolt-on hub spindle snout. CNC machined in-house from aircraft-quality 4130 chromoly steel, this component is built for strength and precision in off-road and racing applications.

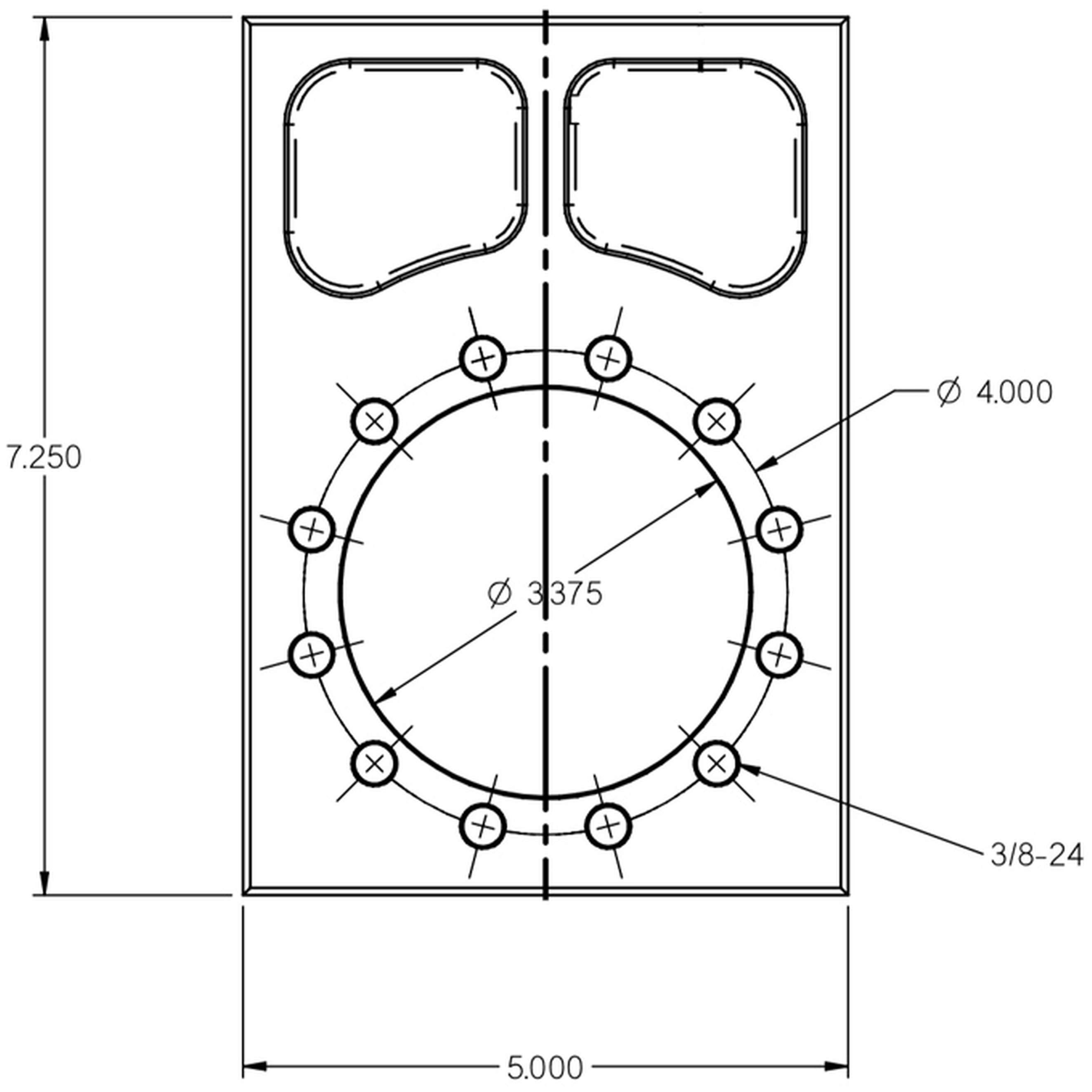

Key Specifications:

• 5/8-inch thick 4130 chromoly construction
• Dimensions: 5 inches x 7.25 inches
• Industry standard Dana 44 bolt pattern, doubled up (12 on 4-inch with 3.375-inch ID bore)
• 3/8-24 bolt holes
• Taller and thicker than standard square versions with weight-reducing pockets

Design Features:

• All sides and top/bottom surfaces are machined for complete parallelism
• CNC machined (not laser or waterjet cut)
• Compatible with all Camburg 12-bolt spindle snouts and many others

Important Installation Note: The spindle bore is machined undersized and will need to be final machined for a slight press fit after welding and/or heat treatment. Camburg recommends using mil-spec AS MS21250 series 12-point bolts for snout attachment.

This precision-engineered component is ideal for custom suspension fabrication, off-road racing builds, and high-performance desert truck applications where reliability and strength are critical.
