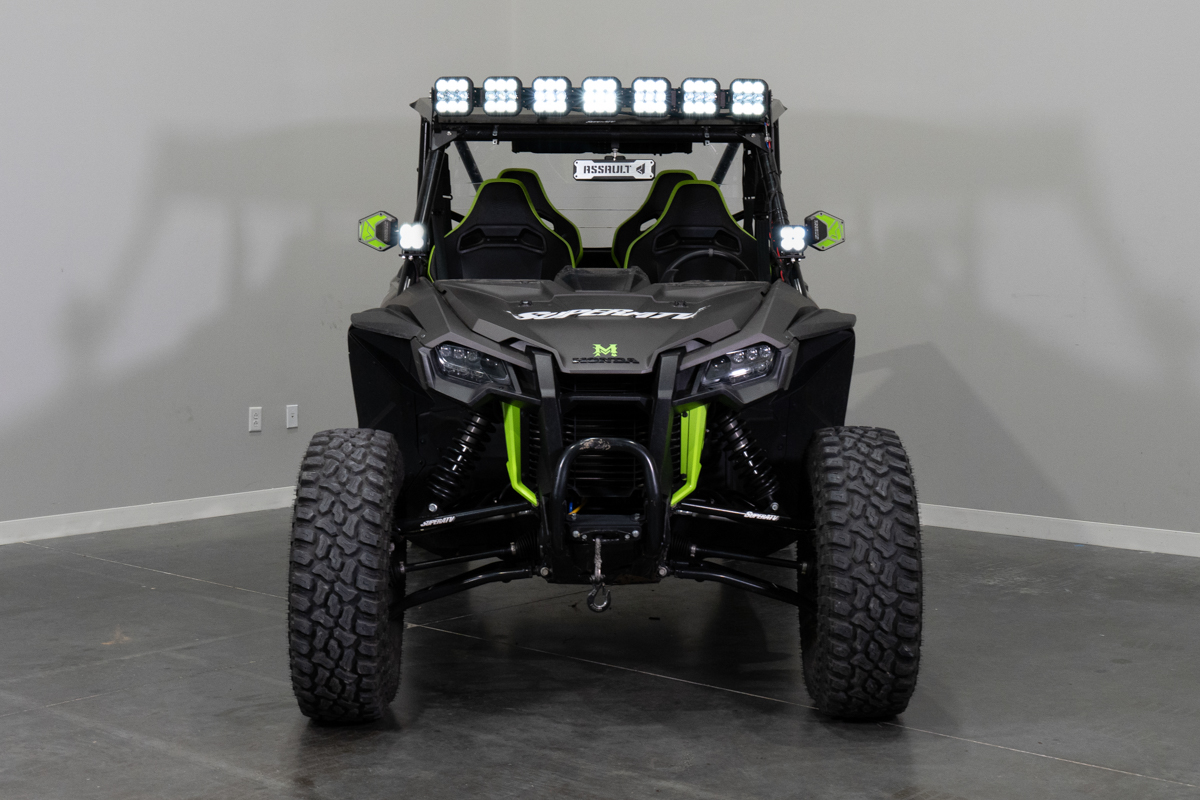

Diode Dynamics DD7918 SS5 Sport CrossLink Roof Yellow Combo Lightbar Kit for Honda Talon

The Diode Dynamics DD7918 SS5 Sport CrossLink Roof Lightbar Kit is a complete seven-pod LED light bar system engineered specifically for the 2019–2024 Honda Talon. Featuring selective yellow (3000K) output in a versatile Combo beam pattern, this kit delivers focused long-range illumination alongside wide-area flood coverage — ideal for off-road use in fog, dust, or low-visibility conditions.

Perfect Bolt-On Fitment

The application-specific mounting brackets are CAD-designed to bolt directly into factory mounting points near the roof. No cutting or drilling is required, making for a clean, professional installation on any 2019–2024 Honda Talon.

Patent-Pending CrossLink Technology

The CrossLink system links all seven SS5 LED pods together using a single-piece CNC aluminum connector, providing extreme rigidity while remaining fully adjustable for both straight and curved configurations. There is no need to purchase a special linking variant — inset threaded mounts are built into every SS5 pod.

Combo Beam Pattern

The Combo optic combines Driving and Flood beam patterns into one. A focused 30×20-degree driving beam reaches far downrange, while flood optics on the top and bottom expand coverage to a full 70×30-degree pattern, filling in the surrounding area for all-around visibility.

Selective Yellow Output

The yellow lens produces a 3000K color temperature for high-contrast illumination in poor weather. Note: Due to the yellow lens, this kit includes an Amber backlight color.

Key Features:

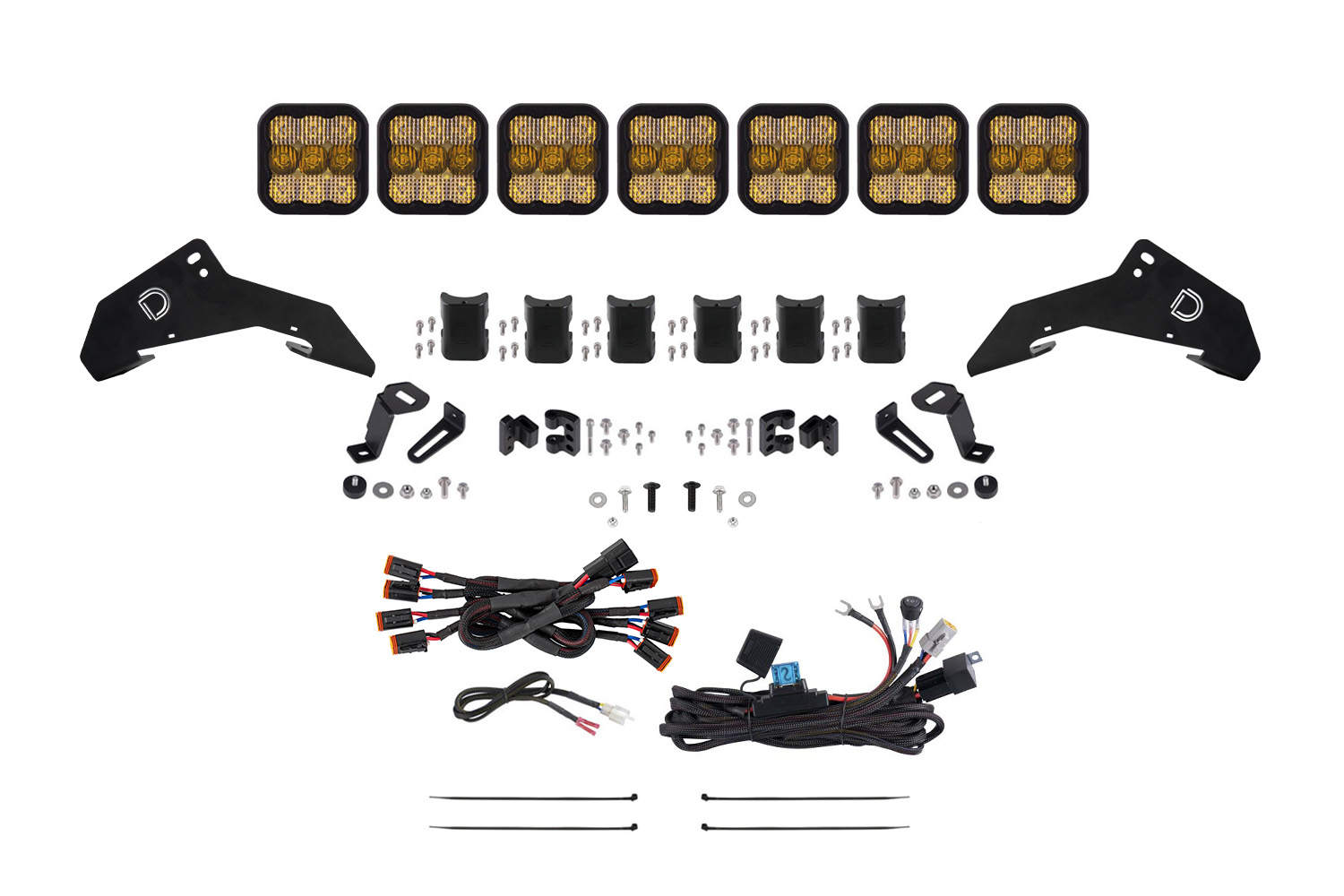

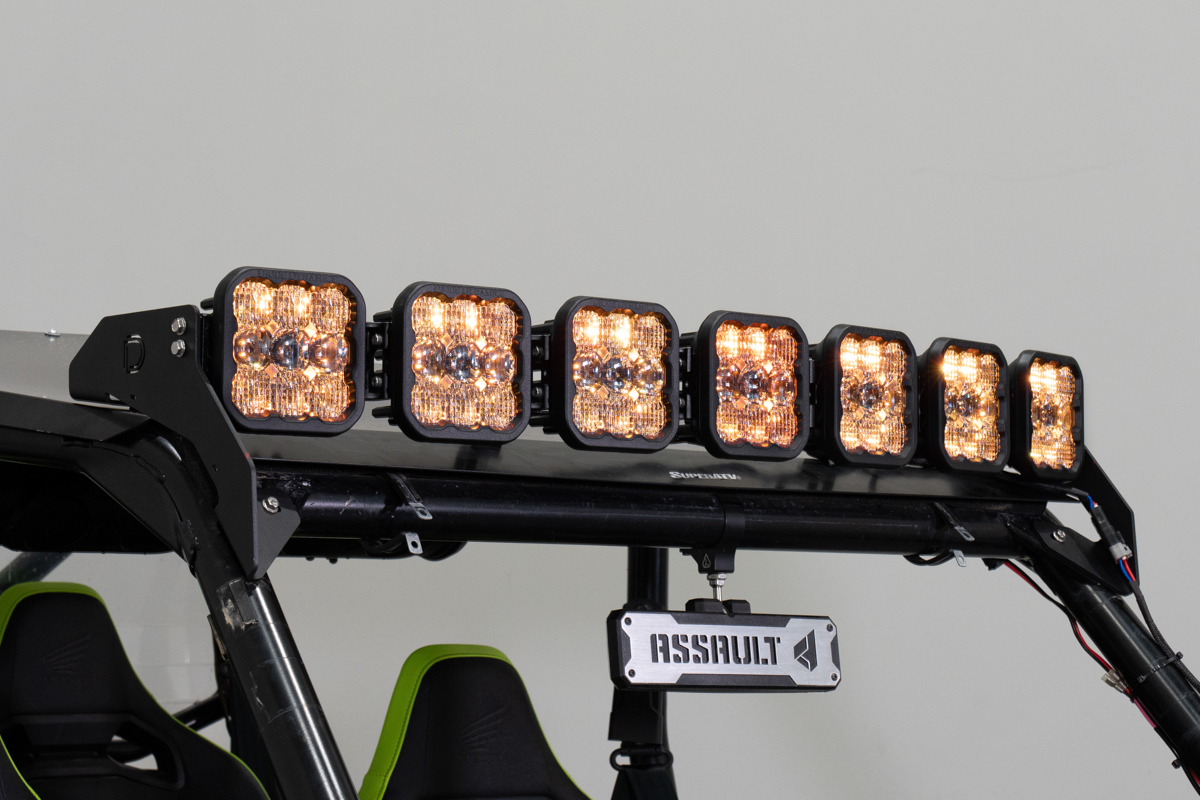

• Mounts seven linked SS5 Sport LED pods above the roof panel
• Bolt-on fitment using factory mounting points — no cutting or drilling
• Patent-pending CrossLink single-piece CNC aluminum linking system — fully adjustable
• Combo beam pattern: 30×20° driving + 70×30° flood coverage
• Selective yellow 3000K output with Amber backlight
• Pin-fin heatsink design for thermal management
• Custom-engineered TIR optics for maximum efficiency and focus
• High-intensity automotive-grade LEDs — 40W total (Sport model, 9 LEDs per pod)
• Integrated Deutsch-style connector
• Durable powder-coated aluminum construction
• Aux switch adapter wire included for aftermarket switch bank control
• Tested from -40°F to 185°F; vibration, moisture, and corrosion tested to SAE standards
• Assembled in the USA

Snap-on covers are available separately to protect your SS5 pods from dirt, dust, and trail debris when not in use. Replacement lenses are also available if you wish to change the beam pattern or color in the future.
