Forced Performance 2025160-0502010 FP Black HTZ Turbocharger Internal Wastegate - 84mm 10cm

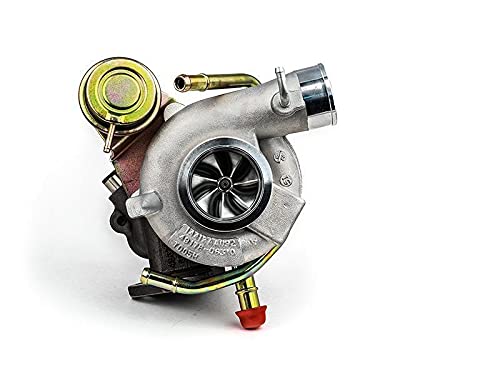

The Forced Performance FP Black turbocharger is a high-performance upgrade engineered for Subaru WRX and STI models, delivering exceptional power while maintaining near-stock fitment. This journal bearing turbocharger features the advanced 82mm HTZ compressor wheel paired with the signature 84mm Flow Advancement Port (FAP) compressor cover, coupled to a 10cm² turbine housing with internal wastegate configuration.

Key Specifications:

• Compressor Wheel: 82mm HTZ with 59.1mm inducer and 82mm exducer
• Turbine Wheel: 67.3mm inducer with 58.8mm exducer
• Flow Rating: 71 lbs per minute
• Power Capability: Up to 575 WHP
• Compressor Cover: 84mm Flow Advancement Port design
• Turbine Housing: 10cm² with internal wastegate
• Bearing System: FP journal bearing CHRA
• Actuator: Stock canister style 15 PSI (18 PSI TiAL MVI upgrade available)

Included Components:

• Type 1 oil feed line with banjo bolts and hardware
• Downpipe and up-pipe gaskets
• Complete installation hardware

Important Installation Notes: The 84mm compressor cover requires TGV (Tumble Generator Valve) delete for proper fitment in the stock turbo location. Forced Performance recommends using their dedicated 84mm inlet, as the compressor housing is slightly larger than standard 3-inch applications and may not be compatible with other brands' inlet hoses. The Type 1 oil line is designed for applications where the oil feed location on the cylinder head feeds only the turbocharger (non-AVCS configuration).

This turbocharger is built to order according to exact specifications. Build times vary by model and configuration options. For off-road and competition use only.
