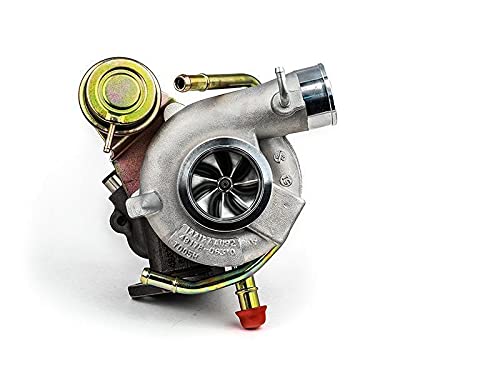

Forced Performance 2025150-0502010 FP Black HTZ Turbocharger Internal Wastegate - 84mm 8cm

The Forced Performance FP Black HTZ Turbocharger represents one of the largest stock-location turbochargers available, delivering exceptional performance for high-horsepower builds. This turbocharger features the 82mm HTZ compressor section with the 84mm Flow Advancement Port compressor cover coupled to the 8cm² turbine section, flowing 71 lb/min and capable of producing upwards of 575 WHP.

Technical Specifications:

• 82 HTZ compressor wheel with 59.1mm inducer and 82mm exducer
• Turbine wheel measurements: 67.3mm inducer / 58.8mm exducer
• 84mm Flow Advancement Port (FAP) compressor cover
• 8cm turbine housing with internal wastegate
• FP journal bearing CHRA
• Flow rating: 71 lb per minute

What's Included:

• Type 1 oil feed line with banjo bolts and hardware
• New downpipe and up-pipe gaskets
• Stock canister style 15 PSI actuator (18 PSI TiAL MVI actuator upgrade available)

Installation Notes:

• The 84mm compressor housing requires a TGV delete for installation
• FP recommends using their 84mm inlet, as the compressor housing is slightly larger than 3" and other brands' inlet hoses are not compatible
• Type 1 oil line is used when the oil feed location off the back of the head only feeds the turbo

This turbocharger nearly maxes out the stock location possibilities and is designed for serious performance applications. All Forced Performance turbochargers are built to order to exact specifications and build times vary by model and options.

Competition Use Only: This product is intended for competition use only and is not legal for street use or highway applications.
