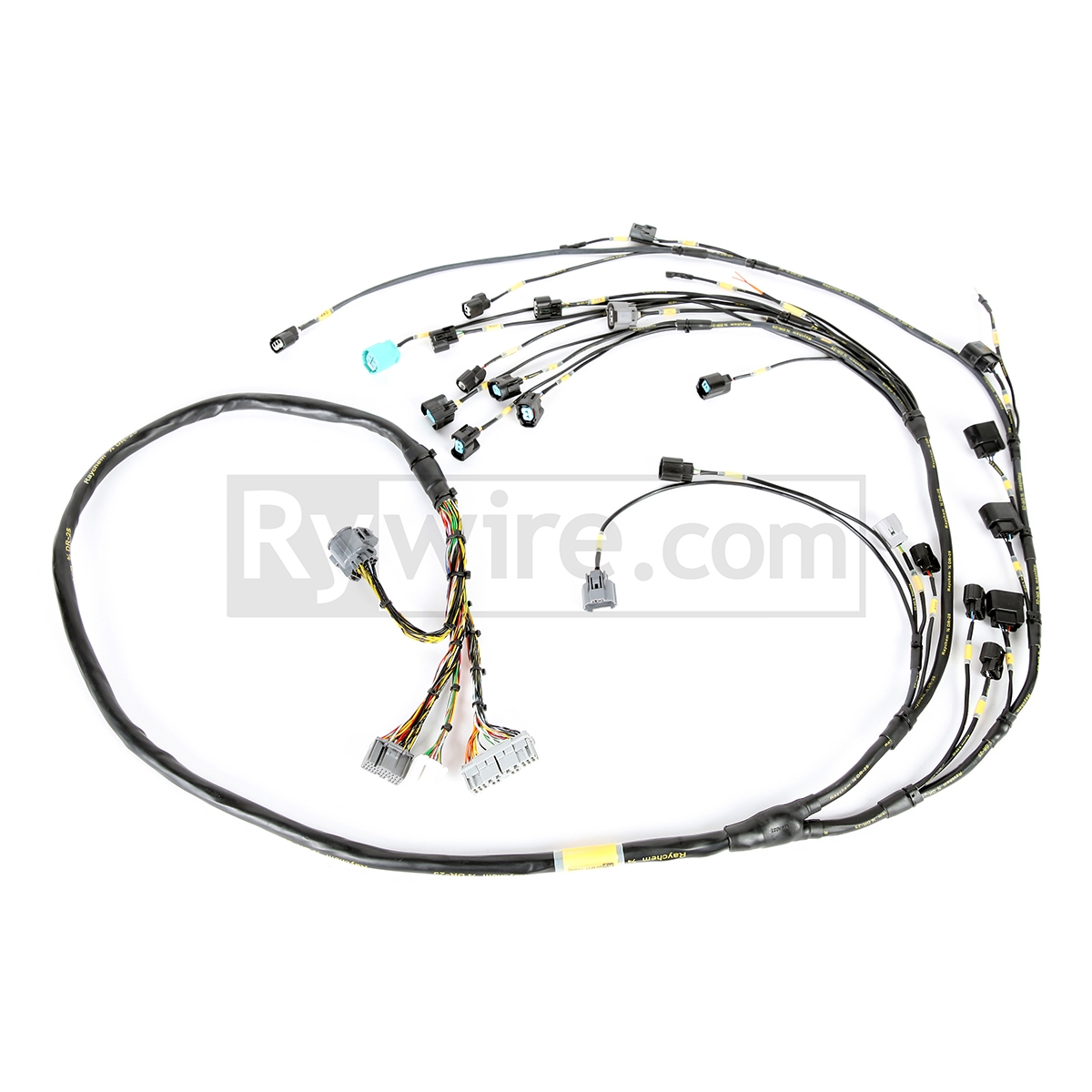

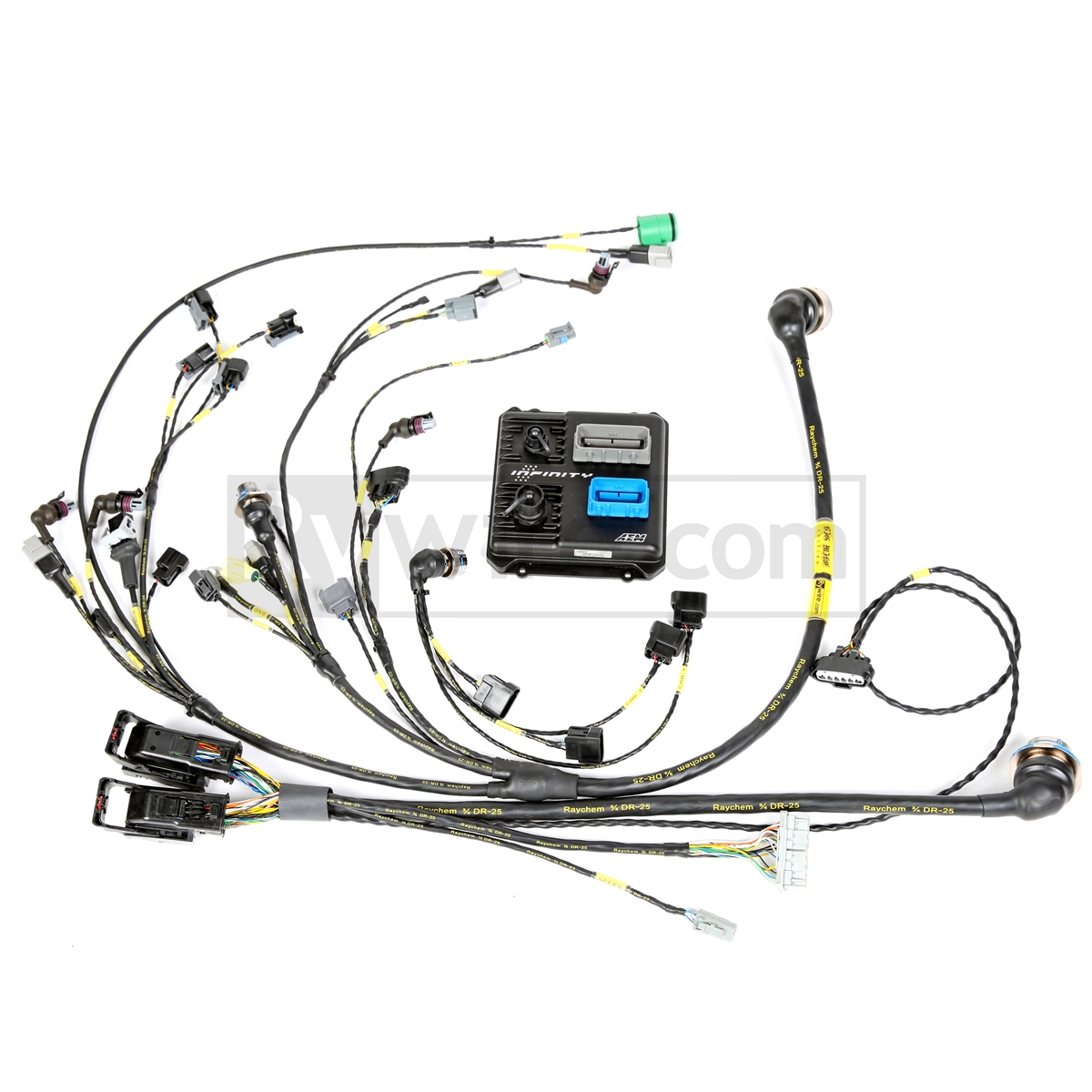

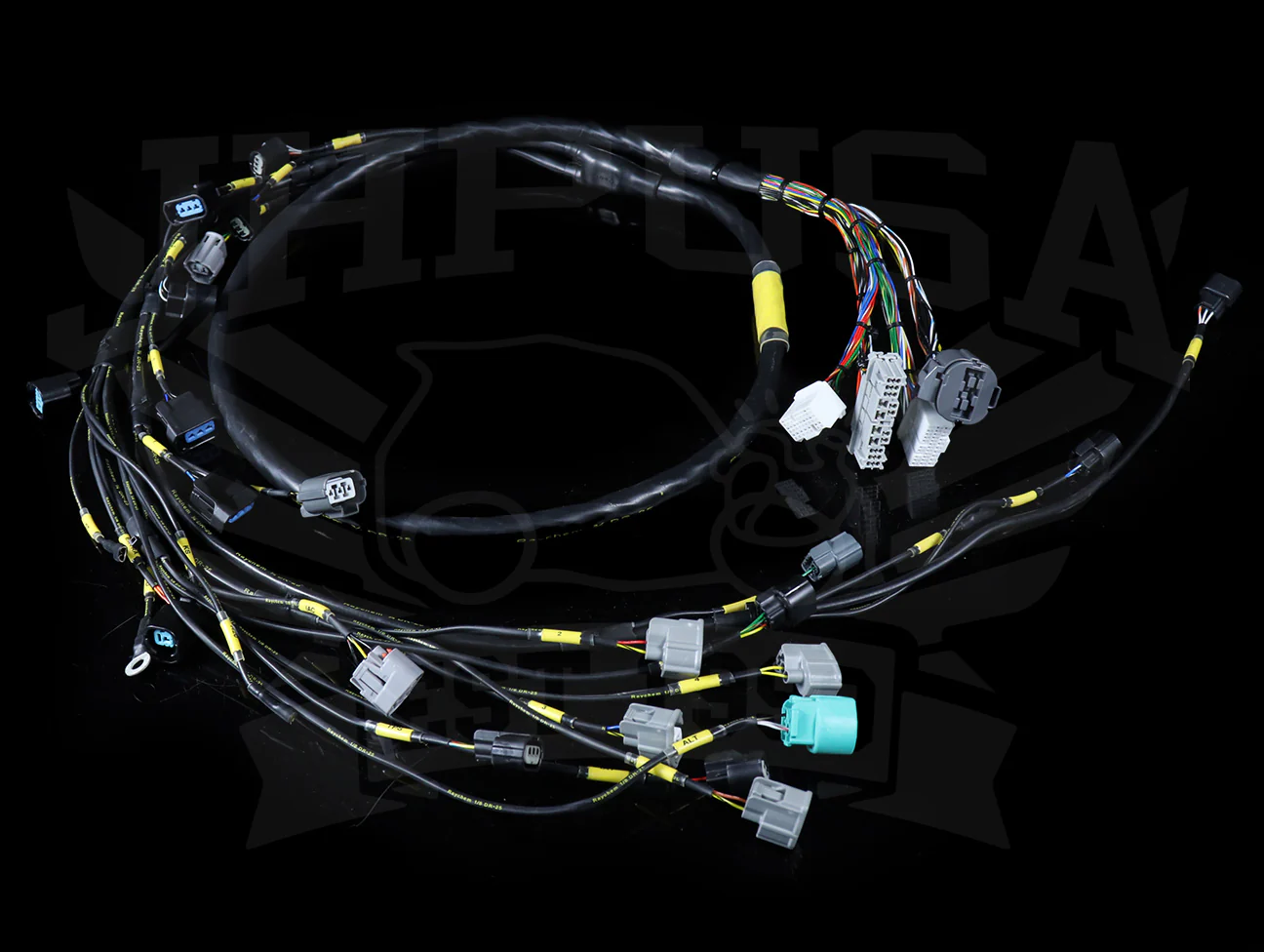

Rywire RY-K2-MILSPEC-CUSTOM Mil-Spec K-Series Engine Harness Version 2 Custom Configuration

The Rywire RY-K2-MILSPEC-CUSTOM is a custom-configured mil-spec K-Series engine harness built to customer specifications. This Version 2 design facilitates universal chassis compatibility with flexible routing preferences, allowing the harness to be routed through the center or toward the right side of the firewall. This routing flexibility makes it ideal for both right-hand drive and left-hand drive applications, and accommodates aggressive exhaust manifold configurations.

Mil-Spec Construction Features:

• Mil-Spec Teflon-coated wire with ETFE insulation (Tefzel) designed for aerospace applications
• Standard factory wire colors for easy identification and troubleshooting
• Maximum heat rating of 200°C for extreme temperature resistance
• High chemical and radiation resistance
• Premium Raychem DR-25 heat shrink covering with adhesive-lined wire junctions to prevent moisture intrusion
• 100% quality tested pin-to-pin with resistance checking to ensure no voltage fluctuations
• Pneumatic crimped connectors for OEM-quality connections every time
• White identification labels on each connector for easy installation

Custom Configuration Options:

• Customizable component connector types to match specific engine configurations
• Optional VSS location configuration (02-04 rear-mount or 05+ front-mount style)
• Optional one-piece charge harness connecting starter and alternator to battery
• Optional mil-spec firewall-mounted quick disconnect connector for easy engine removal
• Custom injector plug types available
• Chassis-specific adapter configuration

What's Included:

• Complete K-Series engine harness with all necessary engine connectors
• Connectors for VTEC solenoid, VTC, sensors, coils, ECU, and all engine components
• Custom-configured options as specified at time of order

Important Notes:

• No core exchange required
• Requires a separate chassis-specific ECU adapter harness (sold separately)
• Follows OEM-style configuration for reliable performance
• Made in the USA with premium materials throughout
• Warrantied and guaranteed to work with excellent phone support for installation and troubleshooting
• Non-refundable due to custom configuration

This custom mil-spec harness represents the highest quality wiring solution available for K-Series engine swaps, combining aerospace-grade materials with expert craftsmanship and customer-specific configuration options.
