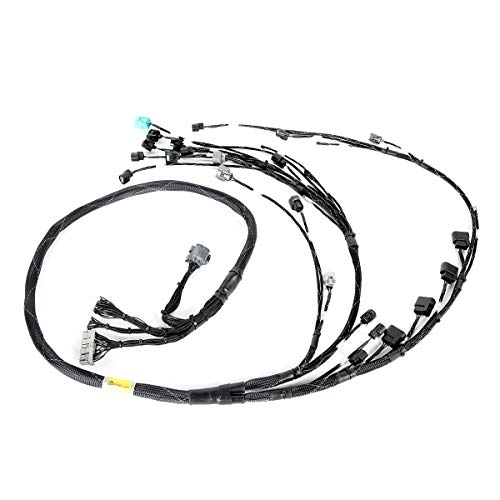

Rywire RY-B1-MILSPEC-W/QUICK-CUSTOM Honda B/D-Series OBD1 Mil-Spec Engine Harness with Quick Disconnect

The Rywire RY-B1-MILSPEC-W/QUICK-CUSTOM is a cross-compatible OBD1 Mil-Spec engine harness designed for both Honda D-Series and B-Series engines, featuring an integrated firewall-mounted quick disconnect system for easy engine removal and customization. This custom-configured harness is built to order with your specific component and chassis adapter selections.

Premium Mil-Spec Construction:

• Mil-Spec Teflon coated wire with maximum heat rating of 200°C featuring ETFE insulation (Tefzel) designed for aerospace applications
• High chemical and radiation resistance for extreme performance environments
• Loomed with Raychem DR-25 heat shrink covering and adhesive-lined wire junctions to keep moisture out
• Pneumatic crimped connectors with yellow identification labels for easy installation
• 100% quality tested pin-to-pin and resistance checked to ensure no voltage fluctuations

Quick Disconnect Feature:

• Firewall-mounted Mil-Spec connector allows easy engine removal for quick engine changes and customization
• Quick disconnect plug provides clean firewall separation and attaches to the quick disconnect plate
• Ideal for race applications requiring frequent engine swaps

Custom Configuration Options:

• Custom backside sub-harness (chassis adapter) specific to your chosen vehicle chassis
• Multiple fuel injector plug types available including Bosch EV1/Honda OBD1 and others
• Optional 1-piece charge harness adds starter and alternator leads to the fuse box through firewall
• Optional VTEC pressure switch plug for cleaner engine bay appearance

All Rywire engine harnesses are made with OBD1 (92-95) computer connectors. The backside chassis adapter separates from the main harness, allowing the engine harness to be used on multiple chassis provided the engine uses the same components. Made in the USA. All Mil-Spec harnesses are made to order.
