sPOD 870036 HD/BantamX Power Management System 2024+ Toyota Tacoma

The sPOD 870036 HD/BantamX vehicle-specific power management kit provides seamless integration for the 2024-on Toyota Tacoma, delivering advanced electrical control for all your accessories directly from the cabin. This comprehensive system combines the BantamX control module with the HD touchscreen panel for intuitive operation and robust power distribution.

Advanced Power Management:

The BantamX system features 8 independent circuits, each rated at 30 amps for a total capacity of 100 amps, providing reliable power distribution for lighting, winches, air compressors, and other accessories. The 16-position terminal block offers flexible wiring options, while integrated low-voltage cutoff (LVCO) protection with optional override safeguards your vehicle's battery from discharge. A 100-amp in-line fuse provides additional circuit protection.

Smart Control Technology:

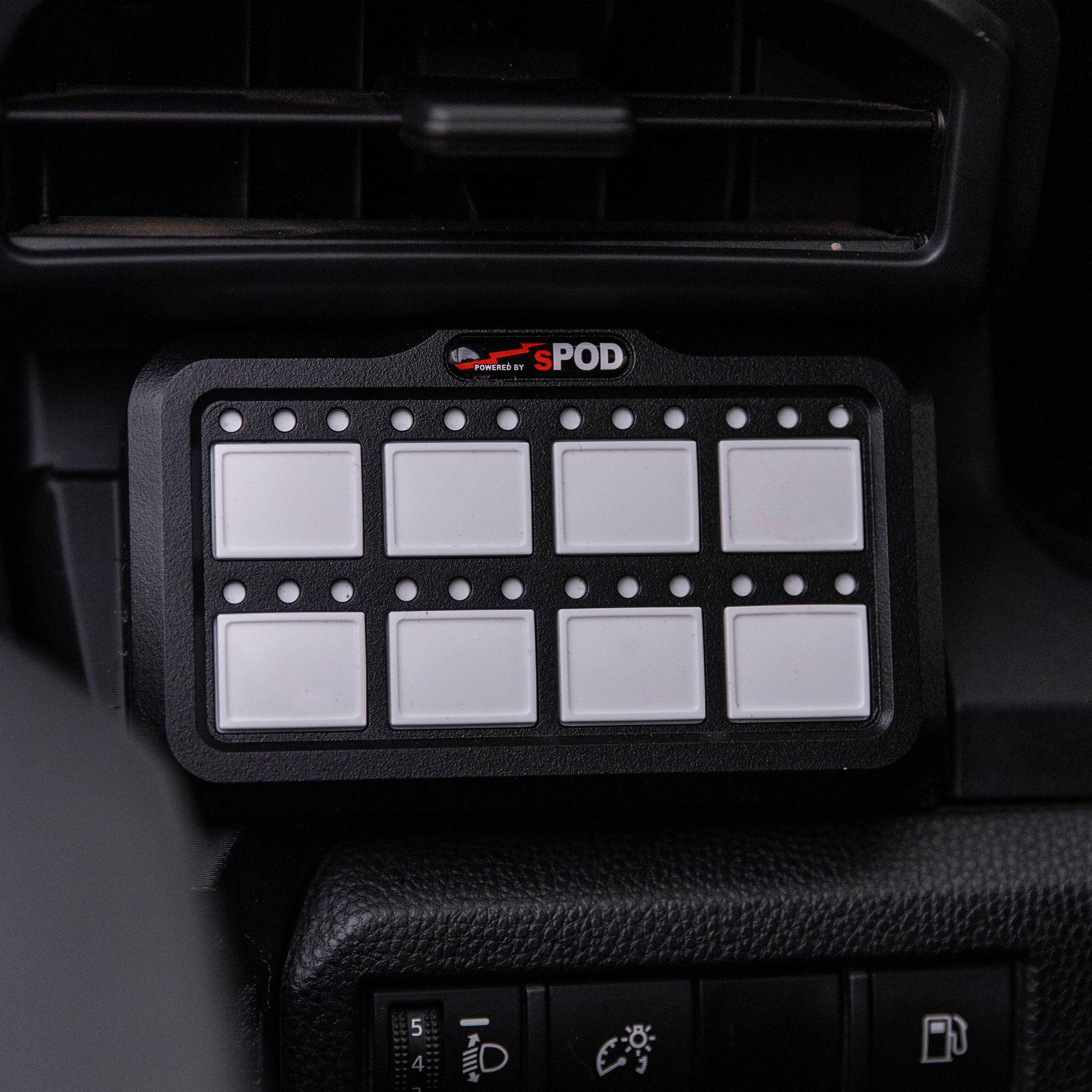

Built-in Bluetooth connectivity enables wireless programming and control through the sPOD mobile app for iOS and Android devices. Customize each circuit with advanced programming options including dimming, strobing, flashing patterns, memory settings, and switch linking. The HD smart panel features an adjustable RGB backlight to match your interior aesthetic and provides tactile control at your fingertips.

Expandable Architecture:

The system is designed for scalability, supporting expansion up to 32 channels controlled by a single BantamX unit. Two controller ports allow multi-controller compatibility for maximum versatility. Power-saving deep sleep mode reduces parasitic draw when the vehicle is off.

Simplified Installation:

Vehicle-specific design ensures straightforward installation in the 2024+ Tacoma cabin. A single ethernet cable connects the BantamX module to the HD touchscreen panel—no complex relay mounting, wire looms, or individual circuit fuses required. The included mounting bracket and hardware provide everything needed for a clean, professional installation.

Key Features:

• Vehicle-specific fitment for 2024 and newer Toyota Tacoma models
• 8 circuits rated at 30A each with 100A total capacity
• Bluetooth-enabled wireless control via sPOD mobile app
• HD touchscreen panel with customizable RGB backlighting
• Extensive programming options: dimming, strobing, flashing, memory, switch linking
• Integrated low-voltage cutoff battery protection with override capability
• Expandable up to 32 channels with single controller
• Dual controller ports for multi-controller setups
• Single ethernet cable connection for simplified installation
• 16-position terminal block for flexible wiring
• 100A in-line fuse protection
• Compatible with 12V and 24V DC systems
• Power-saving deep sleep mode
• 5-year manufacturer warranty

What's Included:

• BantamX control module
• HD touchscreen switch panel
• 36-inch battery cable set
• Ethernet cable
• Vehicle-specific mounting bracket
• Complete installation hardware
