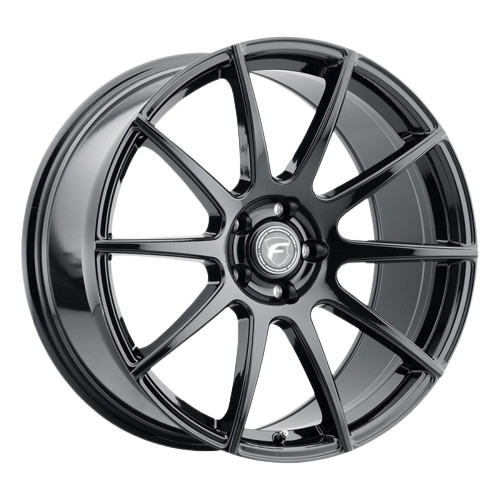

Forgestar F20100565P40 CF10 Deep Concave Wheel 20x10.5 5x114.3 +40mm Offset Gloss Black

The Forgestar CF10 Deep Concave Wheel in 20x10.5 sizing (Part Number F20100565P40) is a high-performance wheel engineered for both street and track applications. Part of Forgestar's CF10 series, this race-inspired multi-spoke wheel features lightweight monoblock construction with a deep concave profile for an aggressive, bold appearance.

Key Specifications:

• Size: 20 inches diameter x 10.5 inches width
• Bolt Pattern: 5x114.3mm (5x4.5")
• Offset: +40mm (ET40)
• Backspacing: 7.32 inches
• Center Bore: 72.56mm (hub rings provided)
• Finish: Gloss Black
• Construction: Flow Formed Monoblock

Advanced Manufacturing Technology:

Forgestar's proprietary Rotary Forged Flow Forming process uses specialized equipment that spins the initial casting, applies heat to the outer portion, and uses steel rollers pressed against the rim area to shape it. The combination of heat, pressure, and spinning creates a rim with strength similar to a fully forged wheel. The pressure applied during flow forming changes the mechanical properties of the cast rim, so its strength and impact values become comparable to forged wheels, resulting in up to 15% less weight compared to standard cast wheels.

Performance Benefits:

• Lightweight construction ideal for street, drag racing, and track applications, with Forgestar's process delivering a wheel that's 15% lighter than most standard cast wheels
• Weight savings of approximately 6-10 pounds per wheel reduces unsprung weight, improving handling, braking, and acceleration
• Deep concave design provides bold styling and aggressive stance
• Compatible with tire pressure monitoring sensors (TPMS) and allows clearance for most high-performance brake caliper upgrades
• Load rated at 1520 pounds per wheel, considerably higher than typical cast wheels

What's Included:

• One (1) Forgestar CF10 wheel
• Center cap included
• Hub rings provided by Forgestar

Important Installation Note:

All Forgestar wheels are drilled to cone seat specifications. Conical/tapered lug nuts are required for proper installation.

Warranty:

Forgestar Performance Wheels are backed by a lifetime structural warranty to the original retail purchaser. A limited one-year manufacturer's warranty guarantees wheels will be free from defects in materials and workmanship under normal and reasonable use.

This 20x10.5 fitment is popular for modern performance coupes, sedans, and muscle cars including Ford Mustang, Chevrolet Camaro, Toyota GR Supra, Nissan Z, BMW 3/4 Series and M models, Audi S4/S5, and similar builds. The deep concave profile and custom offset options allow for perfect fitment on both stock and modified vehicles.
