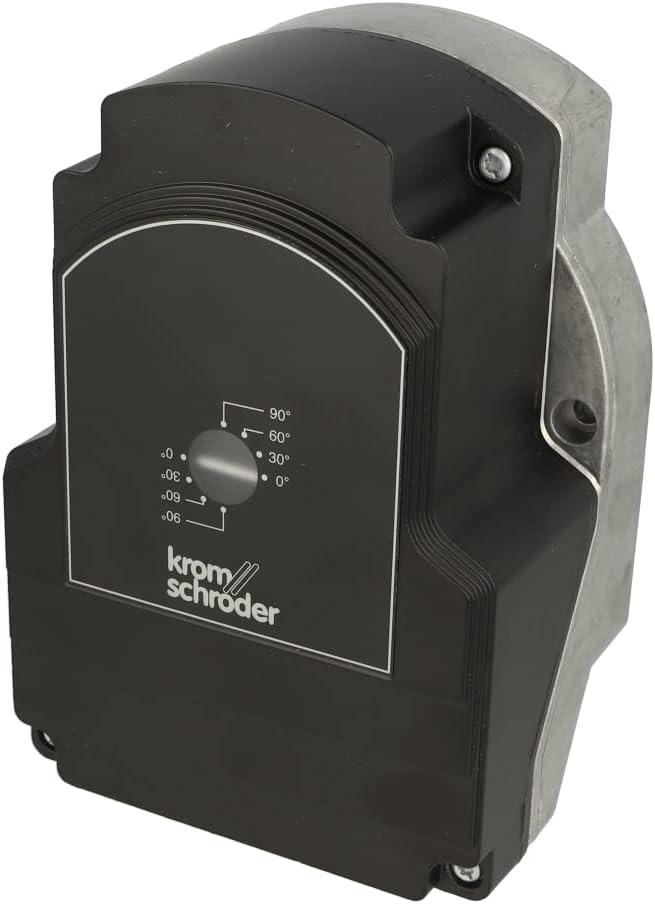

Kromamericas 88300080 IC20-30Q3E Electric Rotary Actuator 120VAC 30 Second 3Nm Torque

The Kromamericas 88300080 (IC 20-30Q3E) is a precision electric rotary actuator designed for industrial combustion control applications requiring accurate positioning between 0 and 90 degrees of rotation. This actuator delivers reliable performance in modulating gas and air flow control systems, making it ideal for burner management and process heating equipment.

Key Specifications:

• Power Supply: 120 VAC, 50/60 Hz (-15/+10% tolerance)
• Running Time: 30 seconds for full 90-degree travel
• Torque Output: 3.0 Nm holding torque
• Control Input: Continuous control via 4-20 mA, 0-20 mA, or 0-10 V signals
• Protection Rating: IP65 weatherproof enclosure
• Power Consumption: 8.4/9.5 VA
• Rotation Range: Adjustable 0 to 90 degrees

Features and Benefits:

• Three-point step control and continuous modulation for precise flow regulation
• Automatic/manual mode changeover switch for easy commissioning and setup
• External position indicator for visual confirmation of actuator position
• Electronic positioning function with adjustable cable break behavior
• Spacious connection chamber simplifies wiring and installation
• Direct mounting capability to Kromschroder BVG, BVH, BVA, and BVGF butterfly valves
• Suitable for control ratios up to 10:1

This actuator is engineered for industrial combustion systems where high temperature accuracy and controlled circulation are critical. The IC20 series provides dependable positioning feedback and robust construction for demanding continuous-duty applications in furnaces, boilers, and process heating systems.
