Diode Dynamics DD8050 SS3 Pro LED Fog Light Kit White SAE Fog ABL

The Diode Dynamics SS3 Pro LED Fog Light Kit (DD8050) is a direct-replacement LED fog light upgrade engineered for a clean, factory-style installation. Designed and assembled in the USA, these 3" angled LED pods deliver a significant output boost over stock halogen fog lights while maintaining full SAE compliance for legal on-road use.

At the heart of the SS3 Pro is a custom-engineered TIR (Total Internal Reflection) optic that collects all available light from the high-intensity LED emitters and directs it precisely where it's needed. Unlike traditional reflector-based designs that scatter light and generate glare, the TIR optic also serves as the primary outer lens — eliminating the extra transmission loss of a separate cover lens for maximum efficiency. The result is a tightly controlled 80°x8° SAE Fog beam pattern, purpose-built to illuminate the road surface ahead without blinding oncoming drivers.

The Pro tier runs at 36 watts / 2.7 amps per pod, powered by a constant-current driver for stable output across a wide 9–30V operating range. Premium LED emitters (Cree XP-L HI / Osram Boost HX) are cooled by a passive pin-fin aluminum heatsink and fully sealed to an IP69K waterproof rating for long-term durability in all weather conditions. An integrated Deutsch DT-style connector provides a secure, weatherproof electrical connection.

Installation is fully plug-and-play using the included custom-molded brackets and H11 wire adapters — no cutting, splicing, or modification required. The kit also includes an angled bezel for a seamless, OEM-style appearance in the factory fog light opening. ABL (Amber Backlight) is built in, adding a distinctive accent glow at 0.4 watts / 0.03 amps.

Key Features:

• Pro-tier output: 36W per pod with Cree XP-L HI / Osram Boost HX emitters
• Advanced TIR optics: Serves as both optic and outer lens for maximum light transfer efficiency
• SAE J583-compliant fog beam pattern — legal for on-road use
• SAE J575 durability tested — built for long-term reliability
• IP69K waterproof and high-pressure wash rated
• Pin-fin heatsink for passive thermal management
• Integrated Deutsch DT-style connector for secure, weatherproof wiring
• Powdercoated aluminum die-cast housing with polycarbonate lens and rubber gasket
• Amber Backlight (ABL) included
• White SAE Fog beam — 80°x8° spread
• Operating temperature: -40°F to 185°F (-40°C to 85°C)
• Plug-and-play installation with custom-molded brackets and H11 adapters
• Engineered and assembled in the USA

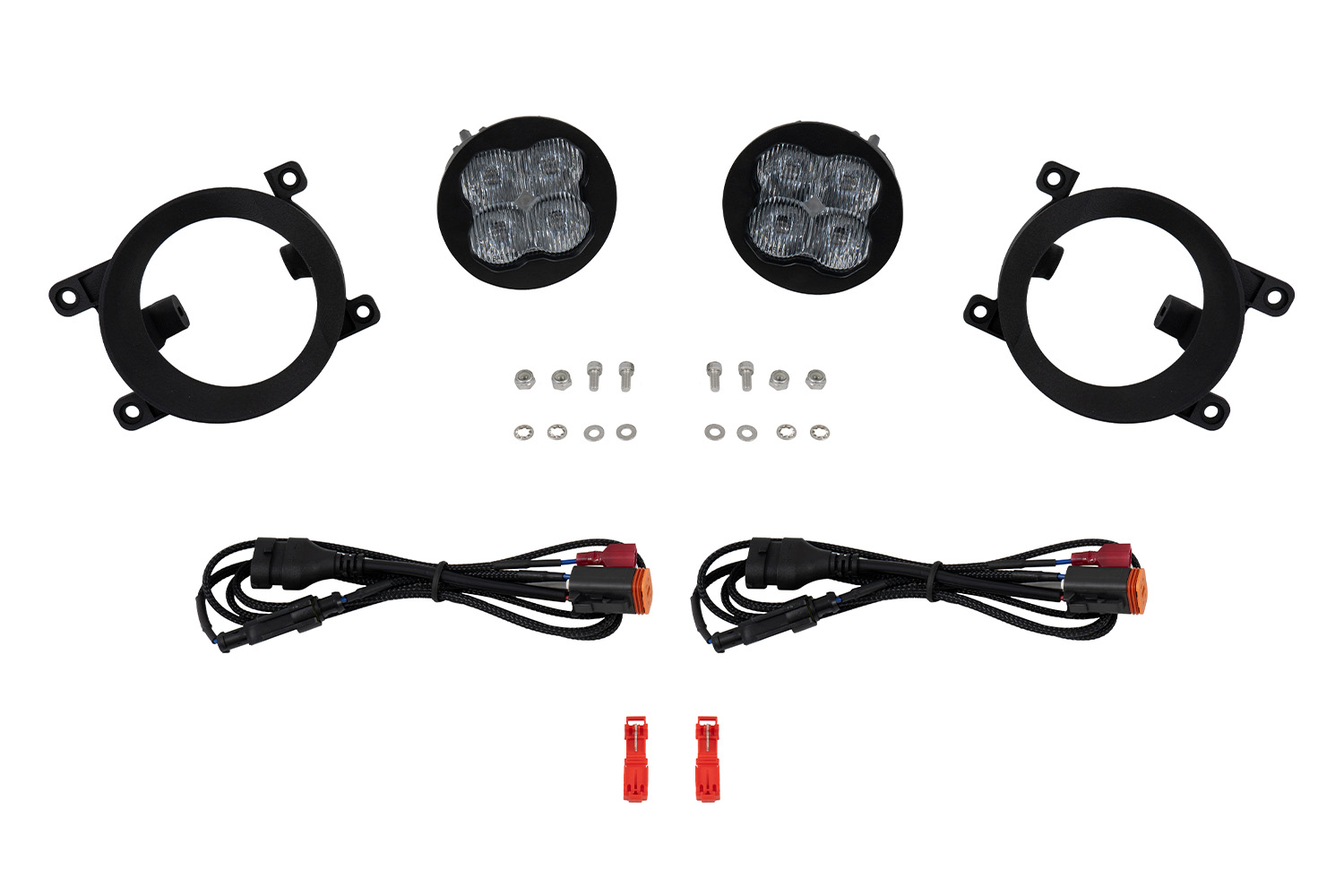

What's Included:

• Two (2) SS3 Pro 3" Angled LED Pods
• Two (2) Type B vehicle-specific brackets
• Two (2) H11 2-pin Deutsch DT adapters
• One (1) H11 4-pin DT backlight tap wire kit
• Mounting hardware and installation guide

Specifications (per pod):

• Main Beam Power: 36W (Pro)
• Backlight Power: 0.4W
• Operating Voltage: 9–30V DC
• Beam Angle: 80°x8° Fog
• Intrusion Rating: IP69K
• Compliance: SAE J575, SAE J583
• Unit Weight: 0.56 lb | Kit Weight: 0.81 lb
