Diode Dynamics DD8048 SS3 Sport LED Fog Light Kit White SAE Fog ABL

The Diode Dynamics DD8048 SS3 Sport LED Fog Light Kit is a direct-replacement LED fog light upgrade featuring advanced TIR (Total Internal Reflection) optics engineered for maximum output, beam precision, and road-legal SAE compliance. Designed and assembled in the USA, this kit delivers a clean, factory-style appearance with dramatically improved illumination over stock halogen fog lights.

Advanced TIR Optics Technology

Unlike traditional reflector-based or simple lens designs that scatter light and reduce efficiency, the SS3's custom-engineered TIR optic captures all light from the LED emitter and directs it precisely where it's needed — drastically cutting glare while maximizing usable output. The TIR optic also functions as the primary outer lens, eliminating the light loss that occurs when passing through a secondary cover lens.

SAE-Compliant Beam Pattern

The SAE Fog beam pattern spans an 80° x 8° spread, designed using optical simulation modeling to produce a highly functional, road-legal output. This kit meets SAE J583 standard for foglamps and SAE J575 durability requirements, making it fully legal for on-road use.

Key Features:

• Advanced TIR optics — high efficiency, focused beam, serves as both optic and outer lens
• SAE J583 compliant fog beam pattern (80° x 8°)
• SAE J575 durability tested for long-term reliability
• IP69K waterproof rating — withstands high-pressure washing and harsh weather
• Pin-fin passive heatsink design for effective thermal management
• Powdercoated aluminum die-cast housing for durability and corrosion resistance
• Integrated Deutsch DT-style connector for secure, weatherproof electrical connection
• Polycarbonate lens with rubber gasket seal
• Operating voltage: 9–30V DC with constant current driver
• Operating temperature: -40°F to 185°F (-40°C to 85°C)
• Sport tier beam power: 14.5 watts / 1.1 amps at 12.8V
• Backlight power: 0.4 watts / 0.03 amps at 12.8V
• Engineered and assembled in the USA

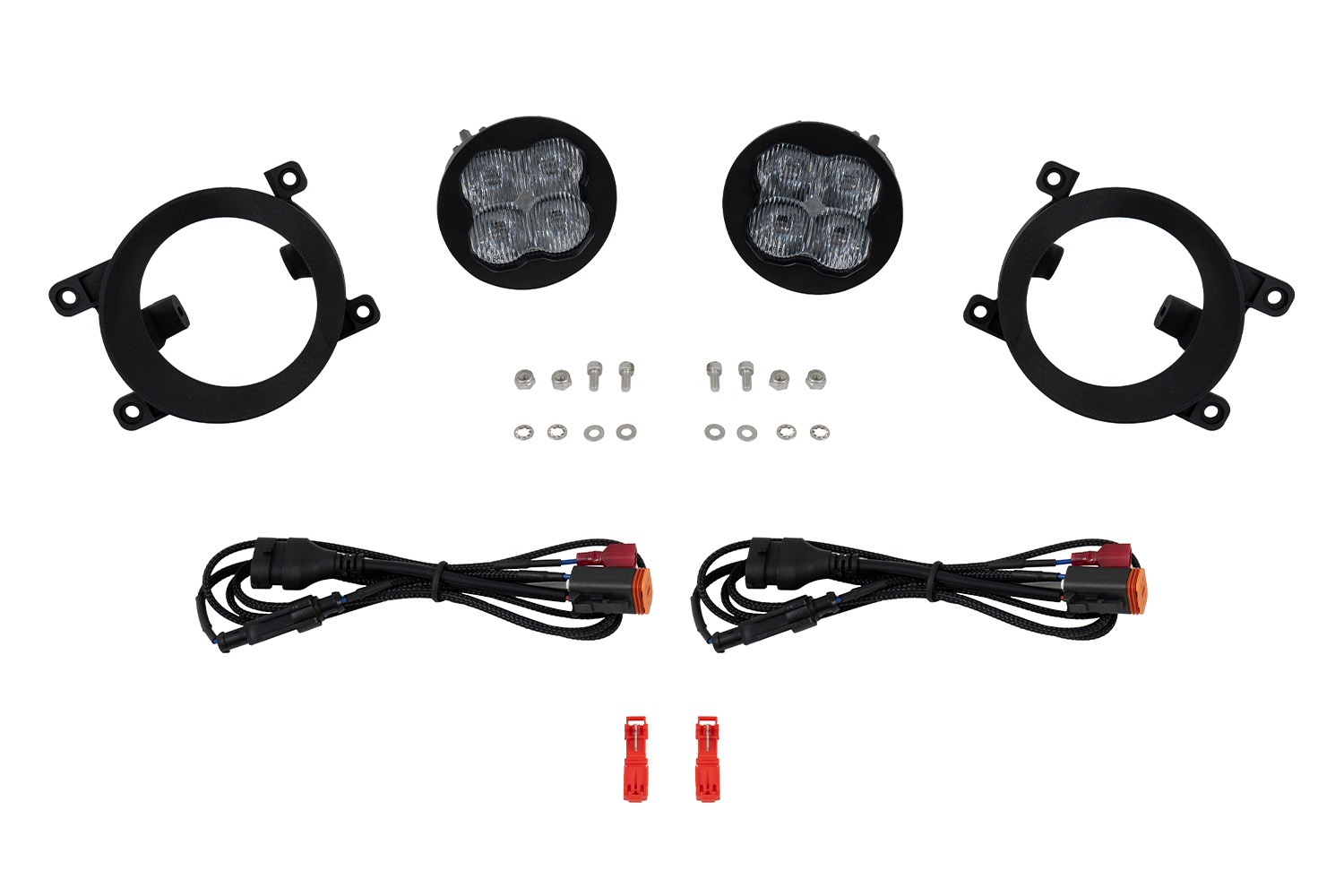

What's Included:

• Two (2) SS3 Sport 3-inch angled LED pods
• Two (2) Type B mounting brackets
• Two (2) H11 2-pin DT adapters
• One (1) H11 4-pin DT backlight tap wire kit
• Mounting hardware and installation guide

The SS3 Sport kit installs using existing factory mounting points with no cutting or modification required. Wire adapters connect directly to factory bulb sockets for a true plug-and-play installation. Backed by an 8-year warranty, this kit is engineered to OEM fit standards with a significant performance upgrade over stock fog lights.
