Diode Dynamics DD7998 SSC2 Pro Yellow SAE Fog LED Pod Kit with ABL

The Diode Dynamics DD7998 SSC2 Pro Type HN Kit delivers a serious upgrade over factory fog lighting with SAE-compliant, selective yellow LED output engineered for real-world performance. Designed and assembled in the USA, this kit pairs Diode Dynamics' proven Stage Series SSC2 Pro pods with Foxbeam Lighting's custom 3D-printed mounting brackets for a clean, factory-style installation.

Advanced TIR Optics

Unlike conventional reflector or simple lens designs that waste light to internal loss and glare, the SSC2 Pro's custom-engineered Total Internal Reflection (TIR) optics collect and direct every lumen precisely where it's needed. The SAE Fog beam pattern delivers high-intensity output across an 80-degree spread, fully illuminating the road ahead with minimal scatter.

Selective Yellow Output

This kit is configured in selective yellow at approximately 3000K color temperature — a popular choice for fog light applications where high contrast in rain, fog, and low-visibility conditions is essential. The amber backlight (ABL) feature fully illuminates the TIR optic housing, providing a distinctive and modern accent look separate from the main beam.

Key Features:

• Advanced TIR optics for maximum efficiency and focused beam output
• SAE J583-compliant fog beam pattern — road legal when properly aimed
• Selective yellow (3000K) output with integrated amber backlight (ABL)
• Pin-fin heatsink design for effective thermal management
• Integrated Deutsch-style connector for secure, weatherproof wiring connections
• Durable powdercoated aluminum construction for long-term durability
• High-intensity automotive-grade LEDs engineered for consistent performance
• Tested from -40°F to 185°F including vibration, moisture intrusion, and corrosion testing
• Designed, tested, and assembled in the USA

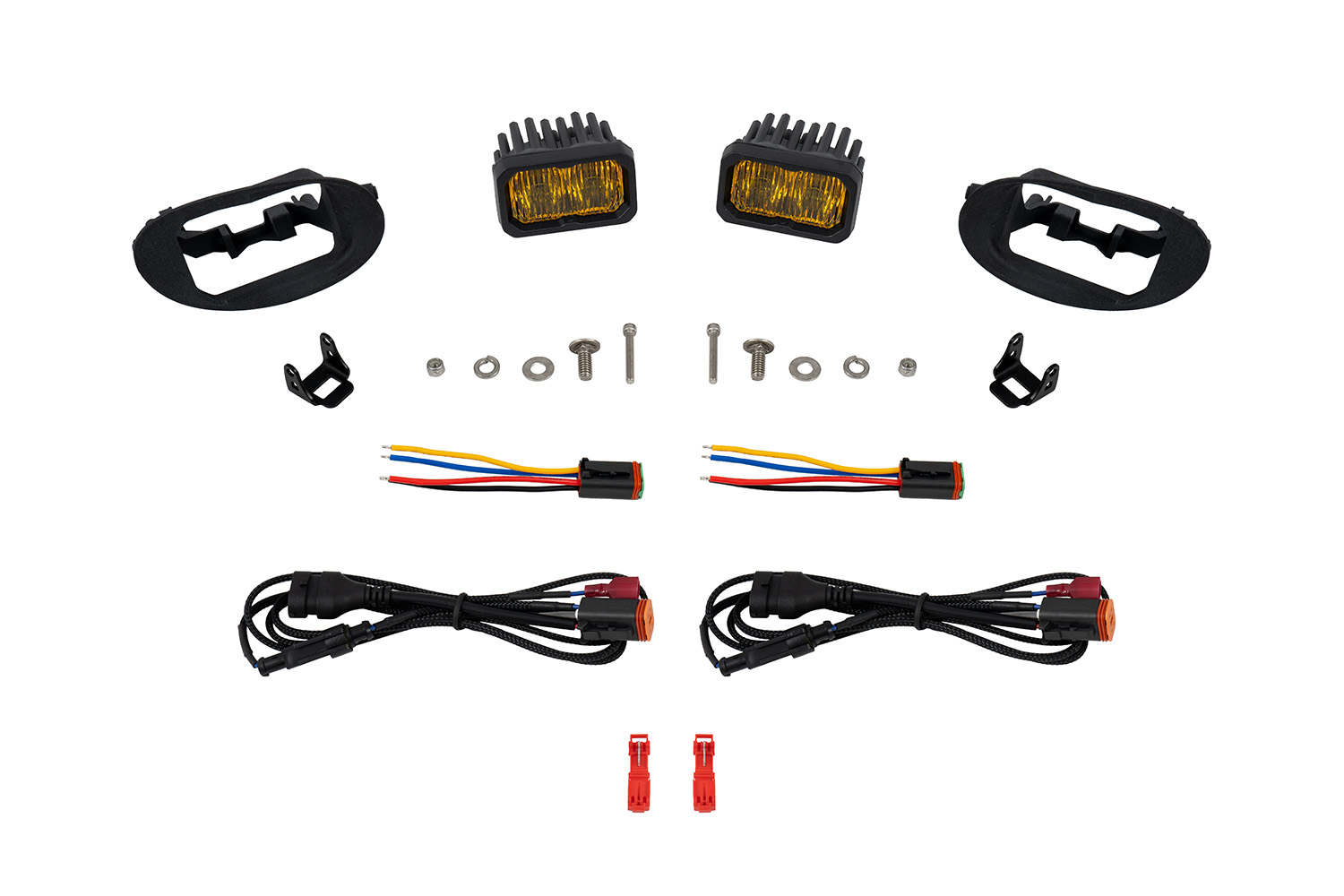

The SSC2 Type HN kit uses Foxbeam Lighting's Nylon SLS 3D-printed brackets that bolt directly into the factory fog light opening — no cutting, drilling, or custom fabrication required. Wire adapters are included to connect directly to factory bulb sockets for a true plug-and-play installation.
