Diode Dynamics DD7997 SSC2 Pro Type HN White SAE Fog LED Pod Kit with ABL

The Diode Dynamics DD7997 is a Stage Series SSC2 Pro Type HN SAE Fog Light Kit featuring advanced LED pod technology engineered for a clean, factory-style upgrade to your existing fog light housing. Developed in partnership with Foxbeam Lighting, this kit delivers high-intensity white illumination with an SAE-compliant fog beam pattern, all in a plug-and-play design that bolts directly into place with no modifications required.

The SSC2 Pro's SAE Fog beam pattern delivers an extremely wide field of view with high-intensity output across an 80-degree spread, making it an ideal direct replacement for factory fog lights. When installed as a pair and aimed per your state's regulations, the fog pattern meets SAE J583 standard as a road-legal foglamp. The cool white 6000K output matches most factory LED lighting for a seamless, modern appearance.

At the core of each pod are advanced TIR (Total Internal Reflection) optics that collect light directly from the LED emitter and direct it precisely on target — eliminating the internal light loss and glare associated with traditional reflectors or basic lenses. The Pro power level steps up output significantly compared to the Sport variant, with double the total wattage for maximum brightness.

Key Features:

• Advanced TIR optics for high efficiency, maximum focus, and reduced glare
• SAE-compliant road-legal output — meets SAE J583 Foglamp standard
• Pro power level with high-intensity automotive-grade LEDs
• SAE Fog beam pattern with approximately 80-degree wide spread
• Adaptive Backlight (ABL) — amber backlight illuminates the TIR optic for a distinctive accent appearance
• Pin-fin heatsink design for efficient thermal management
• Durable powdercoated aluminum construction

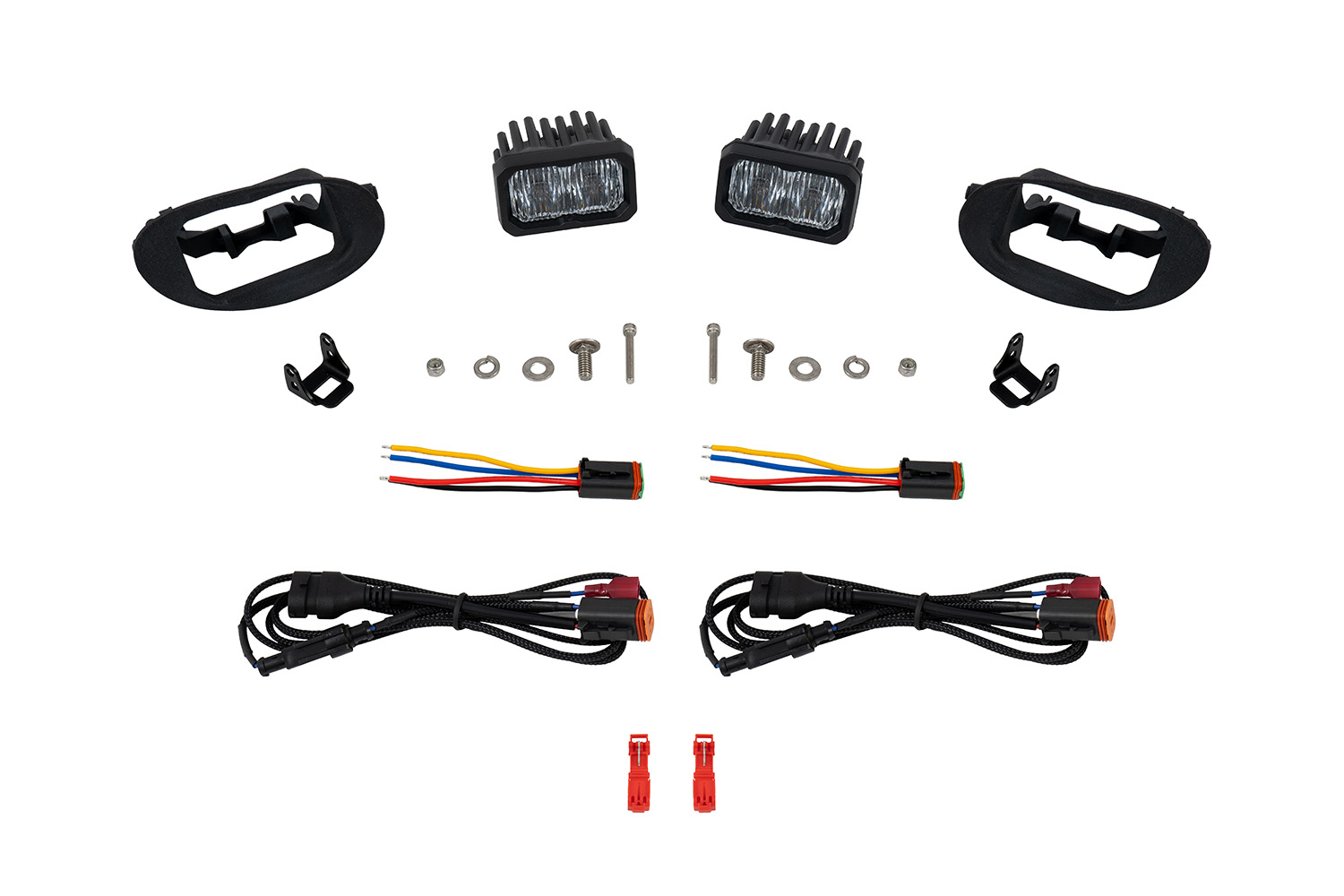

• Integrated Deutsch-style connector with included wire pigtail
• One-piece 3D-printed Foxbeam Nylon SLS mounting bracket for factory-fit appearance
• Wire adapters included — connects directly to factory bulb sockets, no additional wiring needed
• Engineered, tested, and assembled in the USA
• Tested from -40°F to 185°F with SAE-standard vibration, moisture, and corrosion resistance

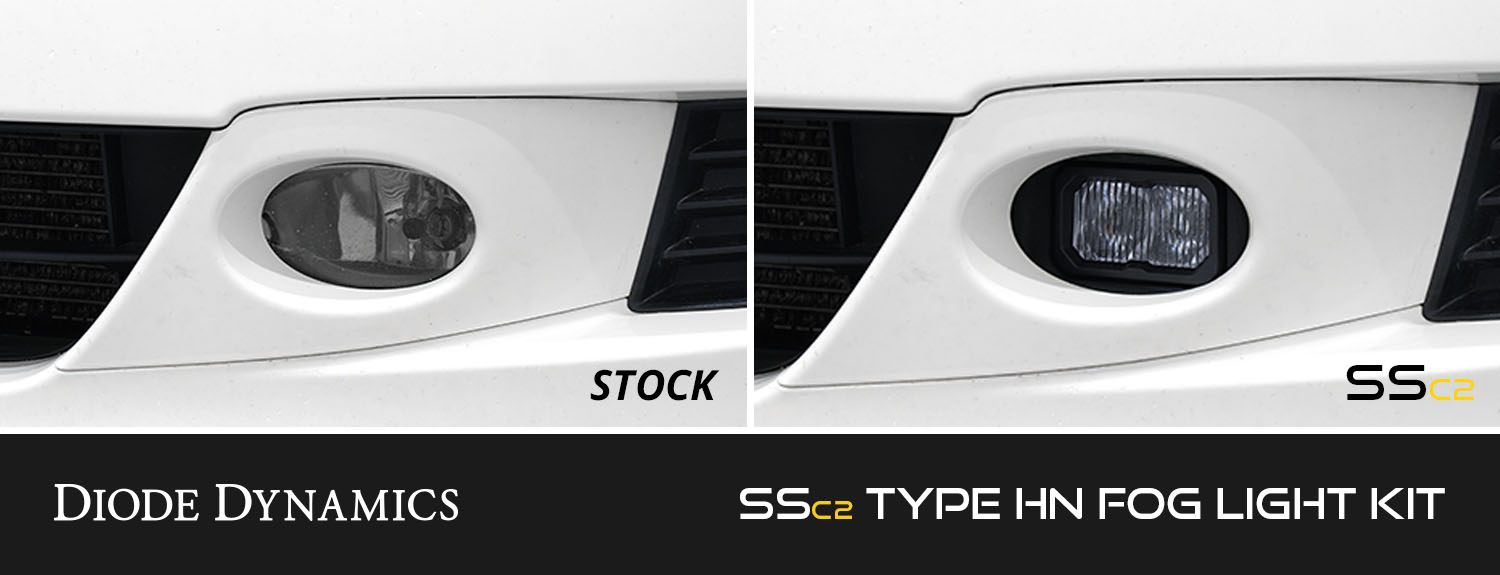

Installation is straightforward: remove the factory fog light assembly and bolt this kit in its place. Included wire adapters plug into your existing factory bulb sockets, making this a true plug-and-play upgrade. The Diode Dynamics SSC2 Pro Type HN fog light pod kit is backed by Diode Dynamics' limited warranty and is designed to deliver reliable, long-lasting performance on the road.
