Diode Dynamics DD7990 SS3 Pro Type Y Kit ABL White SAE Fog Light Kit

The Diode Dynamics DD7990 SS3 Pro Type Y Fog Light Kit delivers superior LED illumination with a bolt-on, plug-and-play design developed in partnership with Foxbeam Lighting. Built around Diode Dynamics' proven Stage Series 3-inch LED pod platform, this kit pairs high-output Pro-level pods with Foxbeam's precision Nylon SLS 3D-printed Type Y mounting brackets for a clean, factory-style installation that is dramatically brighter than stock.

At the heart of this kit are custom-engineered TIR (Total Internal Reflection) optics that collect all usable light from each LED emitter and direct it precisely where needed — drastically reducing glare while maximizing road illumination and overall efficiency. Unlike traditional reflectors or simple lenses that scatter light and waste output, the SS3's TIR optic serves as both the primary optic and outer lens in a single unit, eliminating the light loss associated with a secondary lens.

The Pro-level configuration features nine high-intensity automotive-grade LEDs per pod producing 36 watts of total power — more than double the output of the Sport model — for exceptional visibility in fog, rain, or low-light conditions. The SAE Fog beam pattern delivers an ultra-wide 80-degree spread of high-intensity white light, meeting SAE J583 standards as a road-legal fog lamp when properly installed and aimed.

Each SS3 Pro pod also includes an Amber Backlight (ABL) feature that fully illuminates the TIR optic face in a brilliant amber glow, giving the lights a modern, distinctive look when used as a daytime running accent or secondary function light.

Key Features:

• Advanced TIR optics for maximum efficiency, focus, and reduced glare
• Pro-level output: nine high-intensity LEDs, 36 watts per pod
• Amber Backlight (ABL) fully illuminates the optic face for a modern accent look
• SAE J583-compliant White Fog beam pattern for legal on-road use
• Pin-fin heatsink design for effective thermal management
• Integrated Deutsch-style connector for weatherproof, secure wiring connections
• Durable powdercoated aluminum construction for corrosion resistance
• Foxbeam Nylon SLS 3D-printed Type Y mounting brackets for a factory-style fit
• Plug-and-play installation — wire adapters connect directly to factory bulb sockets, no cutting or splicing required
• Engineered and assembled in the USA
• Tested to SAE standards for operation from -40° to 185°F, including vibration, moisture, and corrosion resistance

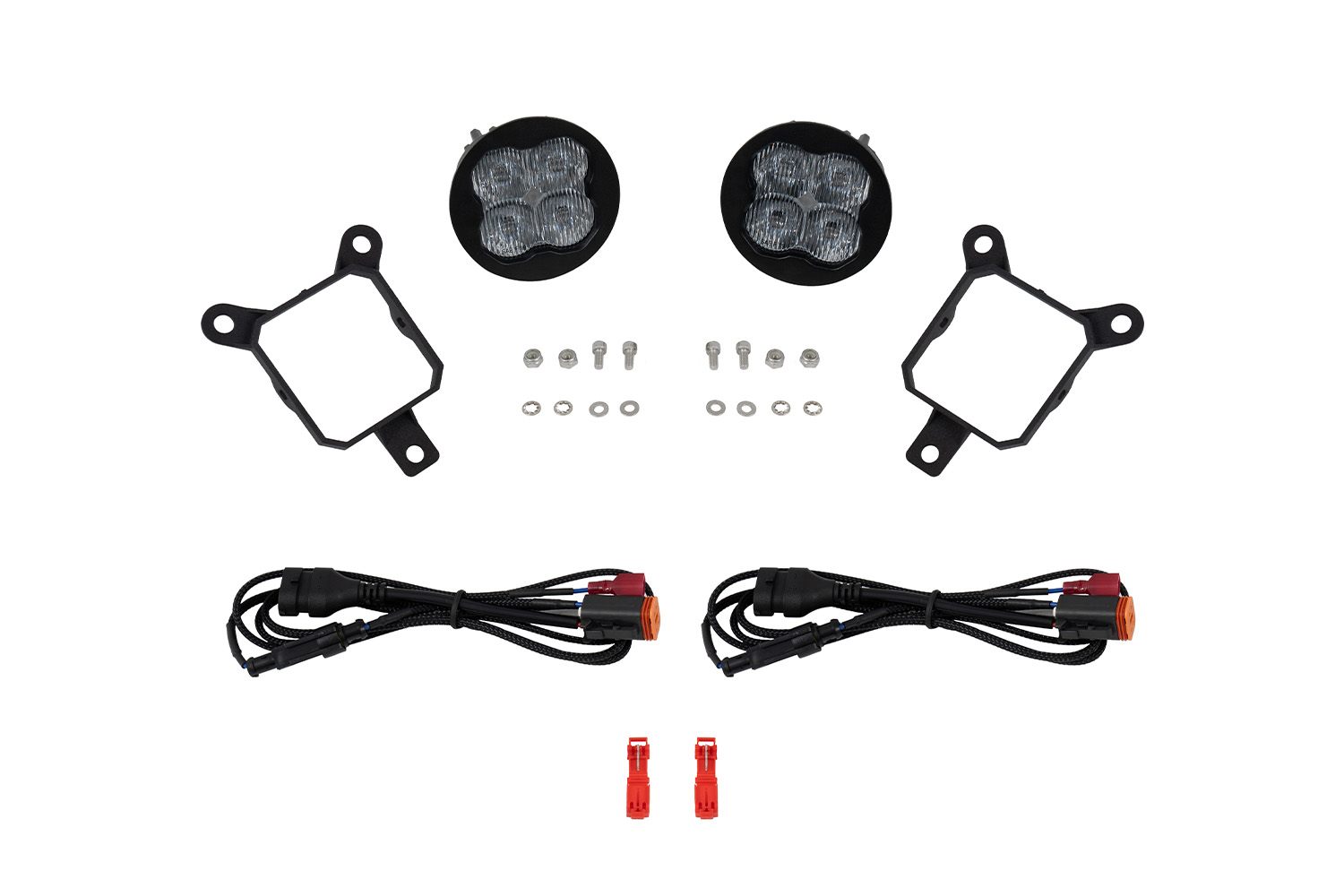

What's Included:

• Two (2) SS3 Pro 3-inch LED pods (White, SAE Fog beam)
• Two (2) Foxbeam Type Y 3D-printed mounting brackets
• Wire adapter harness (connects to factory fog light sockets)
• Backlight tap wire kit
• Mounting hardware and installation guide

The SS3 Pro Type Y Kit is backed by Diode Dynamics' industry-leading warranty, making it a confident long-term upgrade for drivers who demand SAE-compliant, road-legal fog light performance with a premium factory-integrated appearance.
