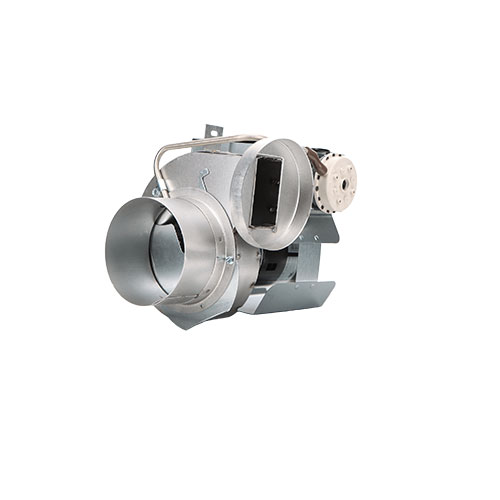

Field Controls PVG-600 24V Power Venter 5 Inch Inlet for Gas Appliances

The Field Controls PVG-600 is an ETL Listed power venter designed for sidewall venting of a single 24 VAC controlled furnace, boiler, or water heater burning natural or LP gas. This unit may also be used to vent a single 24 VAC controlled gas fired furnace or boiler and a 30 millivolt residential gas fired water heater.

Key Features:

• 5 inch inlet and outlet diameter
• Maximum heater BTU input capacity of 610,000 BTU/H for gas appliances
• Includes built-in pressure switch and post purge controls
• All controls are built into the unit
• 115V AC operation with galvanized steel construction
• ETL Listed for safety and quality
• Compatible replacement for Tjernlund HSUL-1, HST-1, and HS1 models

How It Works: When the thermostat or aquastat calls for heat, the power venter starts and the pressure switch senses sufficient airflow before allowing burners to start. The venter draws combustion air through the system and forces gases outside through an external vent hood. After the thermostat is satisfied, the post purge control clears the venting system of combustion gases.

Installation Requirements: A vent hood is required to terminate the vent system and is sold separately. For proper maintenance, the PVG-600 motor must be lubricated annually with six drops of SWG Superlube (Part #46226200).
