ARB 1205K BP51 2-Inch Suspension Lift Kit with Bypass Shocks

The ARB 1205K is a complete Old Man Emu BP51 suspension lift kit engineered specifically for 2005-2023 Toyota Tacoma models. This comprehensive system delivers 2 inches of lift front and rear while dramatically improving ride quality, control, and off-road performance through ARB's advanced bypass shock technology.

Revolutionary BP51 Bypass Technology:

At the heart of this system are BP51 (Bypass 51mm) shock absorbers featuring patent-pending internal bypass technology with remote reservoirs. These position-sensitive shocks provide exceptional comfort for daily driving while delivering significant end-zone damping for superior chassis control on demanding off-road terrain. The 51mm big bore design and remote oil reservoirs ensure consistent performance during extended off-road use by maximizing heat dissipation.

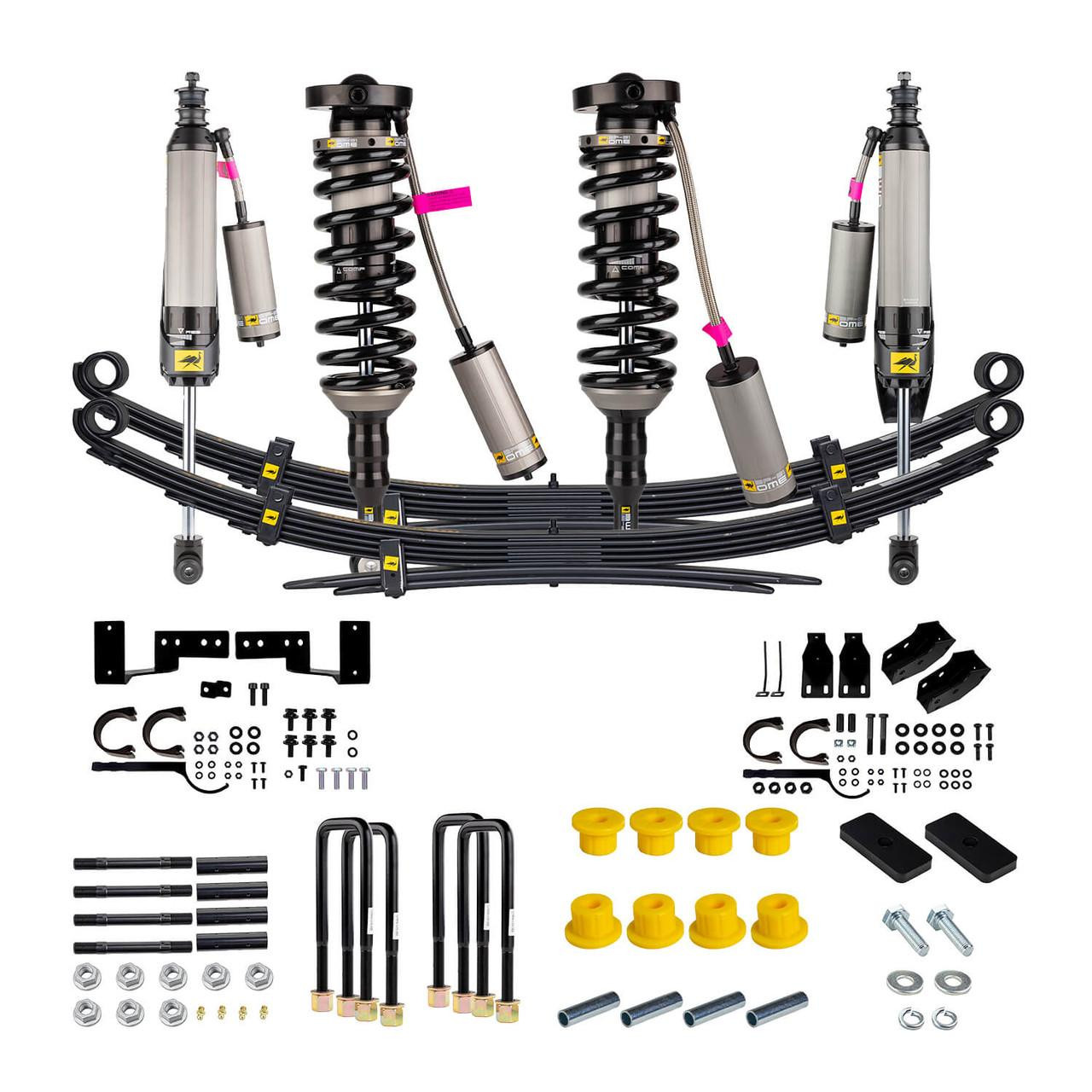

Complete Kit Components:

• Two front BP51 coilover shock absorbers with springs (left and right)
• Two rear BP51 bypass shock absorbers with remote reservoirs (left and right)
• Two rear leaf springs rated for 660 lbs constant load
• Front and rear BP51 shock fitting kits with mounting hardware
• Four leaf spring U-bolts
• Two leaf spring bushing kits
• Rear driveshaft spacer

Fully Adjustable Performance:

Each BP51 shock absorber features independent compression and rebound adjustment across a wide range of settings, allowing you to custom-tune the suspension for varying loads, terrain conditions, and driving preferences. This kit is specifically calibrated for front loads of 0-330 lbs and rear loads up to 660 lbs, making it ideal for vehicles with aftermarket armor, roof racks, camping gear, and other accessories.

Premium Construction:

Manufactured entirely in-house by ARB using state-of-the-art machinery, the BP51 shocks feature 6061-grade aluminum bodies with Type III hard anodized finish for maximum heat dissipation and corrosion resistance. Custom lower mount brackets accommodate the large shock body diameter while providing proper clearance to the axle.

Bolt-On Installation:

This is a complete tuned and matched suspension system designed for direct bolt-on installation with no vehicle modifications required. The integrated kit eliminates guesswork in component selection while accommodating additional vehicle weight that would cause sag with factory suspension.
