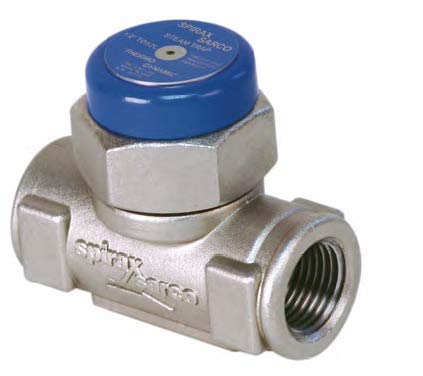

Spirax Sarco 54771C Thermodynamic Steam Trap - TD52L 1/2

Manufacturer

Part Number

54771C
Sale Price

$530.99

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Spirax Sarco TD52L is a rugged and compact thermodynamic disc steam trap designed for efficient condensate removal in industrial and HVAC steam systems. This 1/2" NPT trap features an in-line horizontal flow pattern configuration and is ideal for steam main drainage, steam tracing systems, process equipment, and outdoor installations subject to freezing conditions.

Construction and Materials:

  • Hardened stainless steel body construction (ASTM A743 Grade CA40F)
  • Electroless nickel plated finish with Cool Blue cap for easy identification
  • Monolithic body design with integral seat eliminates internal leaks
  • Single moving part: hardened stainless steel disc for long service life

Performance Specifications:

  • Maximum operating pressure: 600 PSI
  • Maximum temperature rating: 800°F (427°C)
  • Condensate capacity: Up to 1,250 lbs/hr at rated pressure
  • Compact dimensions: 2.7" length × 1.7" width
  • Minimum operating pressure: 3.5 PSI for satisfactory operation

Operating Principle:

The thermodynamic trap cycles periodically to discharge condensate very near to steam temperature. On start-up, incoming pressure raises the disc and cool condensate plus air is immediately discharged. As hot condensate flows through, flash steam is released creating a low pressure area under the disc. Simultaneously, pressure builds in the chamber above the disc, forcing it closed. The cycle repeats as pressure decreases through condensation, ensuring continuous automatic operation.

Key Features and Benefits:

  • Unaffected by waterhammer, superheat, freezing, or corrosive condensate
  • Blast discharge action with clean, tight shutoff
  • Audible "click" as disc seats allows easy performance verification
  • Resists corrosion and can withstand vibration
  • Suitable for superheated steam applications
  • Operates reliably in any mounting position

Installation Notes:

Install in horizontal position as close as possible to equipment being drained. A 20-mesh strainer should be installed upstream along with full-port isolating valves upstream and downstream. Maximum back pressure should not exceed 80% of inlet pressure for proper operation.

Part was in excellent condition, brand new with current FIA approval. Shipped quickly with no issues.

Quick shipping and good price.

First time so ...

Quick ship, good quality

I sincerly hope the picture is not close to actual part. part number matches what I want , but image is no where close. thanks, steve
