Furuno TZT10X 10" Hybrid Touch Multifunction Display Chartplotter Fishfinder

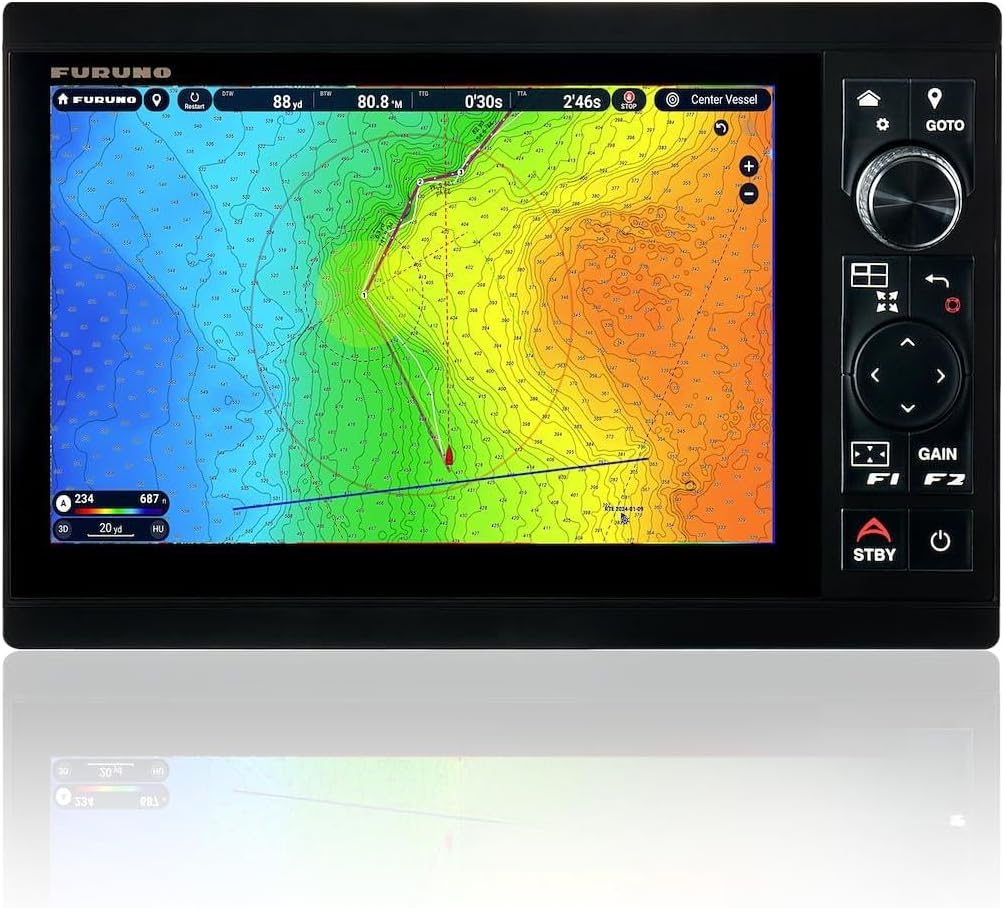

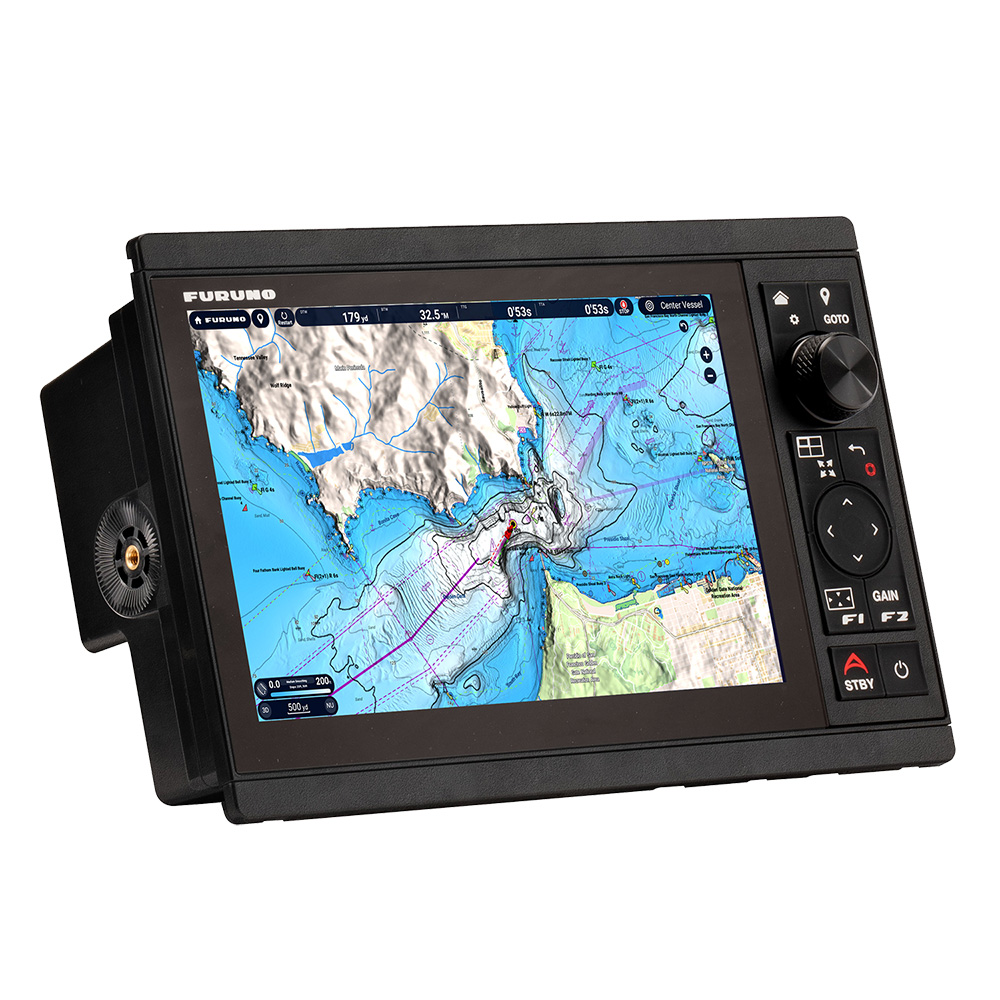

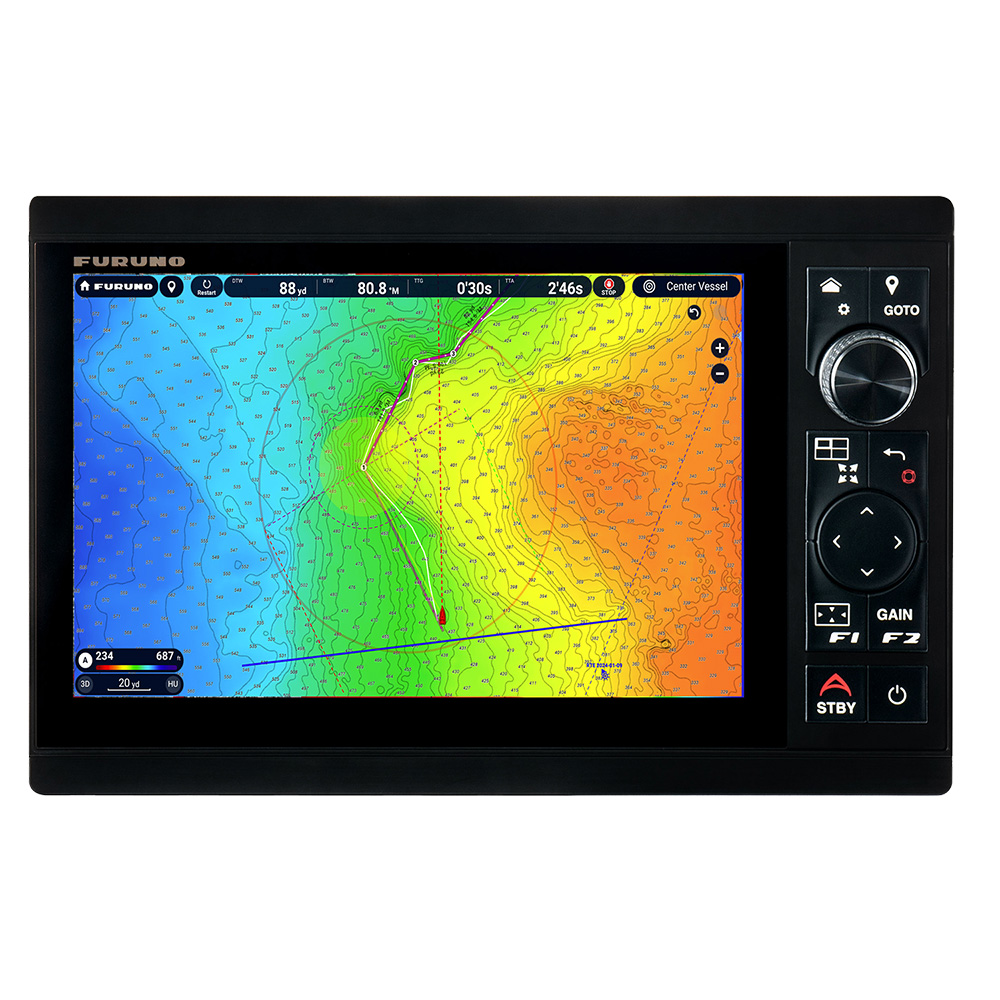

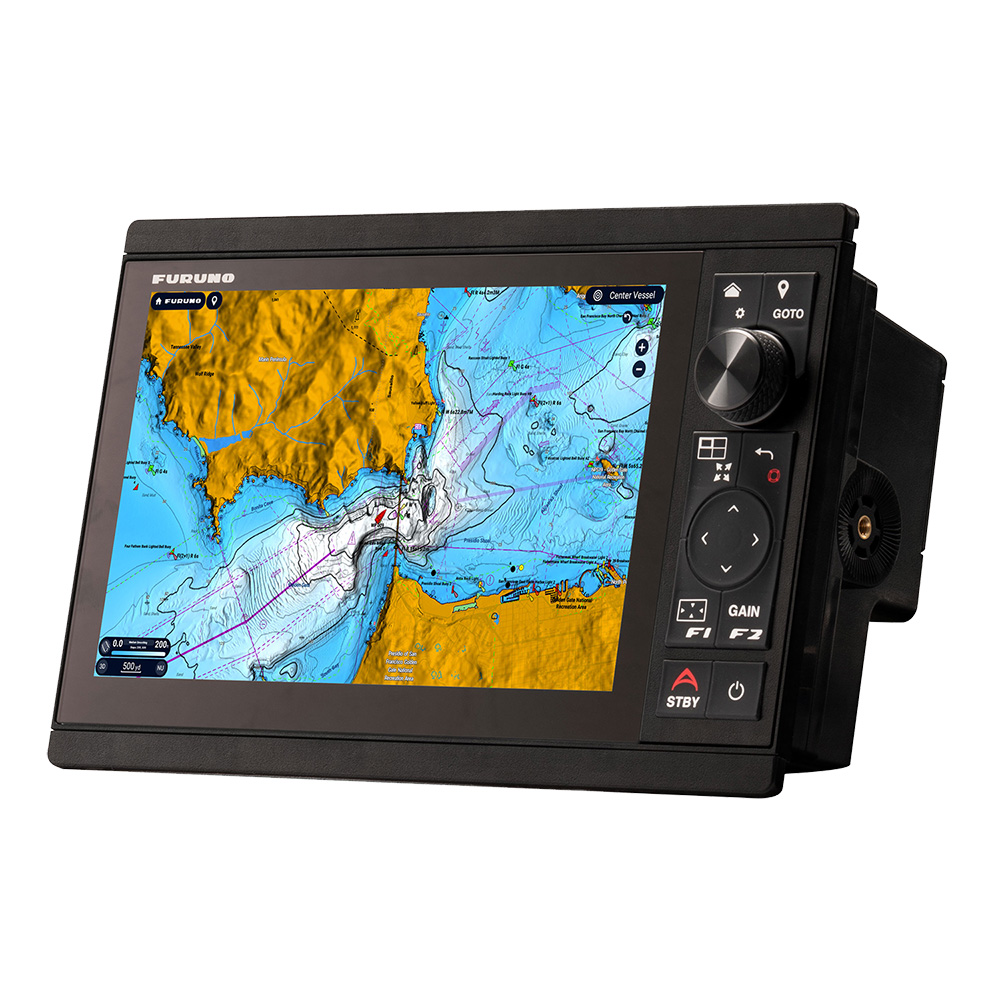

The Furuno TZT10X is a 10" hybrid-control multifunction display (MFD) that combines a chartplotter, fishfinder, radar display and side-scan sonar in one unit. It brings the multi-touch capability of NavNet TZtouchXL together with Furuno's RotoKey control knob and dedicated buttons, so it is easy to operate in any sea conditions.

Key Features:

• 10.1" wide color TFT multi-touch IPS LCD with WUXGA 1920 x 1200 resolution and typical brightness of 900 cd/m2
• Hybrid controls: multi-touch screen plus RotoKey knob and dedicated buttons
• Hexacore processor for rapid response
• TZ MAPS charts with raster, vector, satellite photo and bathymetric content. Charts can be purchased and updated directly from the MFD with an internet connection
• BathyVision bathymetric data, configurable down to 3 inches between contours, with custom depth shading for fishing charts
• AI Routing that plans routes based on the boat's draft and navigational obstacles
• Risk Visualizer and AI Avoidance Route when connected to an NXT radar, with routes that can be sent to a Furuno NavPilot autopilot
• Built-in dual channel 1 kW TruEcho CHIRP and CW fishfinder
• Built-in 235 kHz or 455 kHz CHIRP side-scan
• Fish-It, Drift-It and Follow-It features
• Up to ten Page Builder configurations and a 6-way split screen
• Video converter kits can stream compatible sonar video data to the MFD

Sonar Expansion: The 2 kW/3 kW DFF3-UHD TruEcho CHIRP Network Fish Finder can be added for deeper-water performance. With the BT-5 Booster Box, output power can be raised to 5 or 10 kW for high-power transducer options.

Specifications:

• Display colors: 16,770,000 (chartplotter), 64 (radar/fishfinder)
• GPS/WAAS: 72-channel GPS receiver plus 1 SBAS channel, L1 (1575.42 MHz), 10 Hz position update, accuracy of 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
• Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only)
• Memory: 30,000 user points, 100,000 ship's track points, 200 planned routes (500 points per route)
• Radar: Head-up and North-up modes (heading input required), 100 ARPA targets (radar dependent)
• Fishfinder: CW 50/200 kHz, CHIRP 40 to 240 kHz, 300/600 W or 1 kW transducer (matching box MB1100 required for some transducers)
• Side-scan: CHIRP 220-240 kHz / 445-465 kHz, display range of 750 feet to each side
• Connections: 1 NMEA 2000 port, 1 NMEA 0183 serial output port, 1 LAN port (1000 BASE-T), 1 USB 3.0 port, 1 video input (NTSC/PAL), 2 AUX I/O ports, 1 micro SDXC slot, IEEE 802.11b/g/n wireless LAN
• Transducer connections: 1 x 12-pin for CHIRP/CW, 1 x 12-pin for side-scan
• Environment: -15°C to +55°C operating temperature (IEC60945), IP56 waterproofing
• Power: 12-24 VDC
• Languages: multiple, including English, French, German, Spanish, Italian, Japanese and more

The TZT10X suits boaters who want a compact, high-resolution helm display with touch and tactile control, detailed charting and built-in fishfinding.
