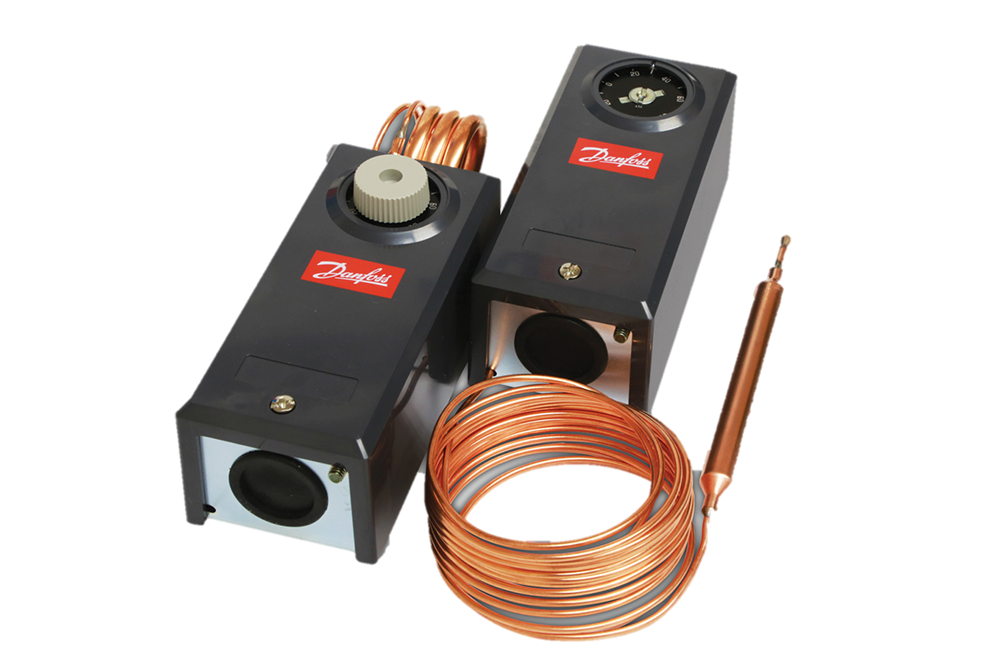

Danfoss 060-5234 KPU1B Low Pressure Switch SPDT Manual Reset 36" Capillary

The Danfoss 060-5234 is a KPU1B low pressure switch designed for commercial refrigeration and air conditioning systems. This reliable control provides protection against excessively low suction pressure, helping to safeguard your HVAC equipment from potential damage.

Key Specifications:

• Pressure range: 28 inHg to 100 PSIG (vacuum to positive pressure)
• Fixed differential: 10 PSI
• SPDT (Single Pole Double Throw) contact configuration
• Manual reset function for safety compliance
• 36-inch capillary tube for remote sensing
• 1/4-inch female flare connection
• Contact rating: 24 Amps at 240 VAC
• Maximum working pressure: 250 PSI
• IP30 enclosure rating

Features and Benefits:

• Snap-action electrical contacts for reliable switching
• Fail-safe dual bellows design prevents refrigerant loss
• Manual trip allows electrical function testing without tools
• Exceptional repeatability with less than 0.1 PSI drift even after 400,000 cycles
• Suitable for commercial refrigeration, air conditioning, supermarket refrigeration, and food processing applications
• Ambient temperature range: -40°F to 122°F
• UL, cUL, and CE approved

The 36-inch capillary tube allows for flexible installation where remote pressure sensing is required. The manual reset function ensures that once the switch trips due to low pressure, the system cannot automatically restart until an operator manually resets the control, providing an important safety feature for critical applications.
