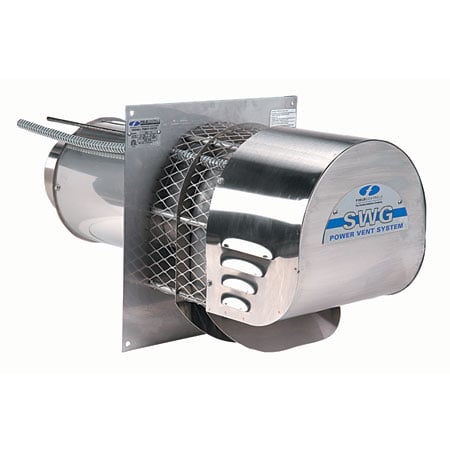

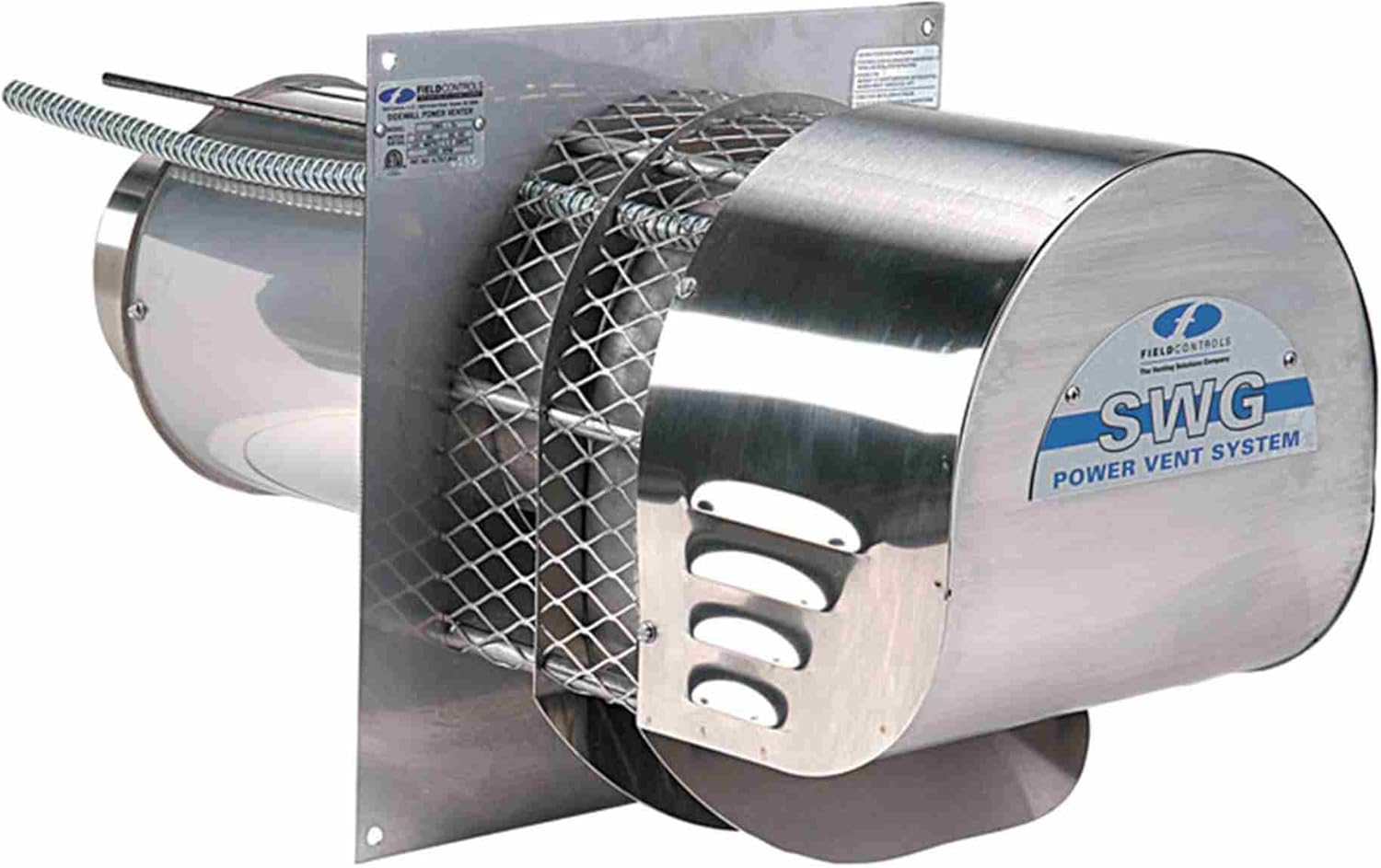

Field Controls SWG-6 Power Venter 6" Inlet 416,000 BTU/HR 115V 46234300

The Field Controls SWG-6 power venter (also called a sidewall power vent or draft inducer) vents the combustion gases from gas or oil furnaces, boilers and water heaters. It combines the motor, blower and vent hood in one unit. It mounts on the outside of the building and pulls flue gases through the outside wall using 100 percent negative pressure.

Key Features:

• Rated for up to 416,000 BTU/HR input and 2.65 GPH maximum oil
• 6-inch inlet
• 115V, 60Hz, 2.1A, 228W motor running at 3100 RPM
• Thermal protection
• 100 percent negative pressure in the vent pipe
• Standard galvanized pipe can be used instead of stainless steel
• Manufacturer part number 46234300

The SWG-6 must be sized to match the input firing rate of the appliance or appliances it serves. Firing rates are usually published in the appliance manufacturer's installation manual.
