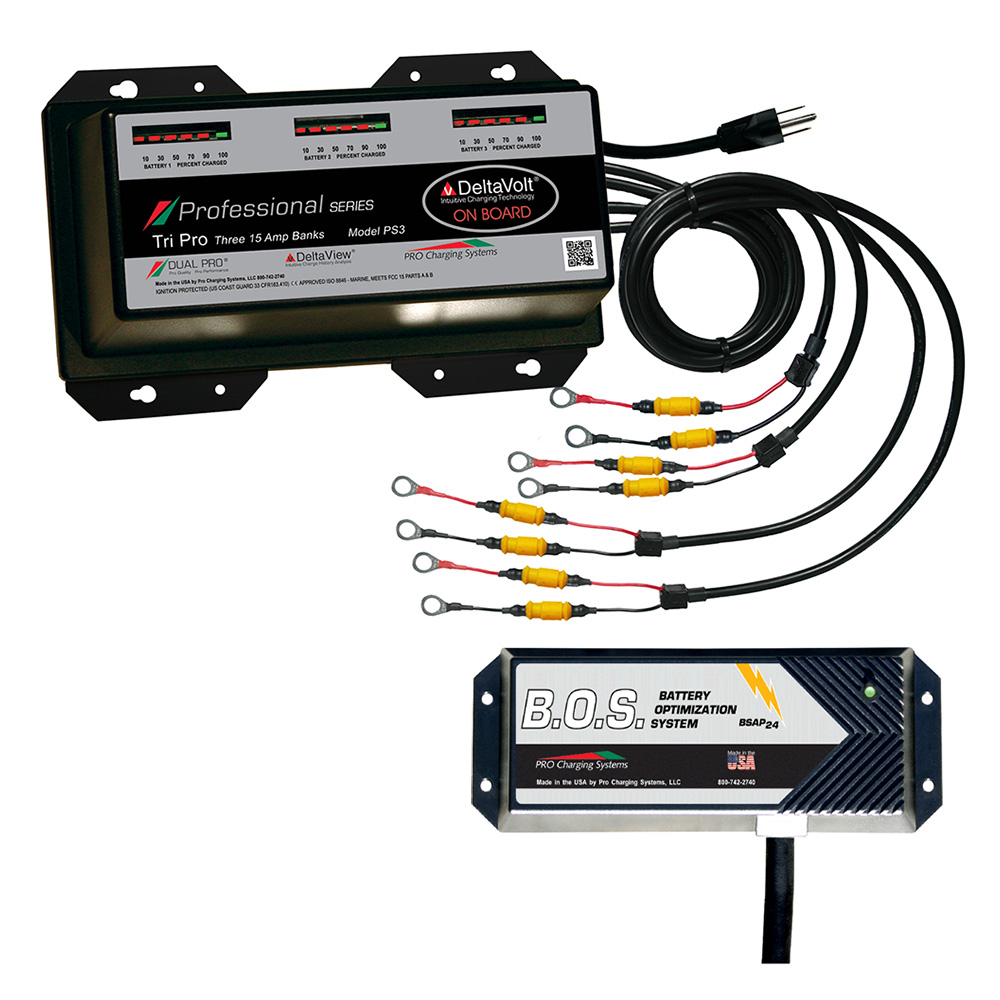

The Dual Pro PS3/BOS12V3 is a complete battery management solution combining the Professional Series PS3 3-Bank Battery Charger (45A total, 15A per bank) with the innovative B.O.S. (Battery Optimization System) for 12V-36V applications. This powerful kit ensures your battery pack stays balanced and performs at peak efficiency, dramatically extending battery life and runtime.
B.O.S. Battery Optimization System - 3-Bank
The B.O.S. system actively shuttles energy between batteries wired in series to maintain equal voltage across your entire pack. Batteries naturally fall out of balance during use, especially when trolling motor batteries power accessories or assist cranking batteries. The proprietary BSAP-24 algorithm accurately predicts which battery needs additional energy and automatically balances the pack before, during, and after charging. This prevents premature failure caused by unbalanced packs and can quadruple runtime on the water.
B.O.S. Key Features:
- 12V configuration supporting up to 3 batteries in series
- Battery Selection and Prediction (BSAP-24) algorithm
- Transfer rate up to 7.5A between batteries
- Self-powered with less than 1mA sleep mode
- Compatible with any battery chemistry (flooded, AGM, gel)
Professional Series PS3 Charger - 45A Total Output
The PS3 delivers 15 amps per bank across three independent charging outputs, providing reliable, fully automatic multi-stage charging. Trusted by over 50 boat manufacturers and professional tournament fishermen, this waterproof charger features DeltaVolt® Intuitive Charging Technology that adapts to your batteries' needs. The rugged, fully sealed construction handles harsh marine environments in both fresh and saltwater.
PS3 Charger Features:
- 45A total output with 3 independent 15A banks
- DeltaVolt® microprocessor-controlled charging technology
- Approved for wet cell and AGM batteries
- Fully automatic multi-stage charging with maintenance mode
- Temperature-compensated for optimal performance
- LED indicators show state of charge for each bank
- Zero spark technology and reverse polarity protection
- Waterproof construction with no installation restrictions
- On-board diagnostic codes for troubleshooting
- ISO 8846 Marine certified and US Coast Guard ignition protected (33 CFR 183.410)
- FCC Parts A & B interference-compliant
- 5-foot DC charge cables, 3-foot AC power cord
Applications:
Ideal for marine vessels, golf carts, RVs, utility vehicles, solar power systems, and any application requiring multiple batteries in series. The combination of intelligent charging and active balancing makes this the ultimate solution for maintaining peak battery performance and maximizing lifespan.
Plug it in and forget it - the PS3/BOS12V3 automatically handles everything to keep your batteries charged, balanced, and ready for action.
