Supco LCV LOGiT Current and Voltage Data Logger, AC Voltage and Current Recorder

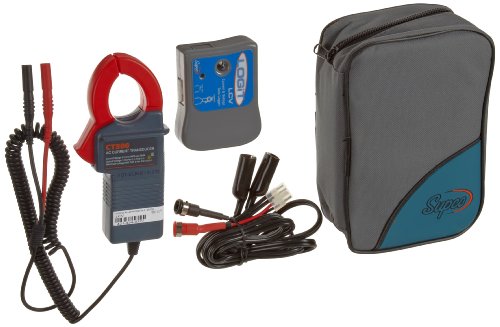

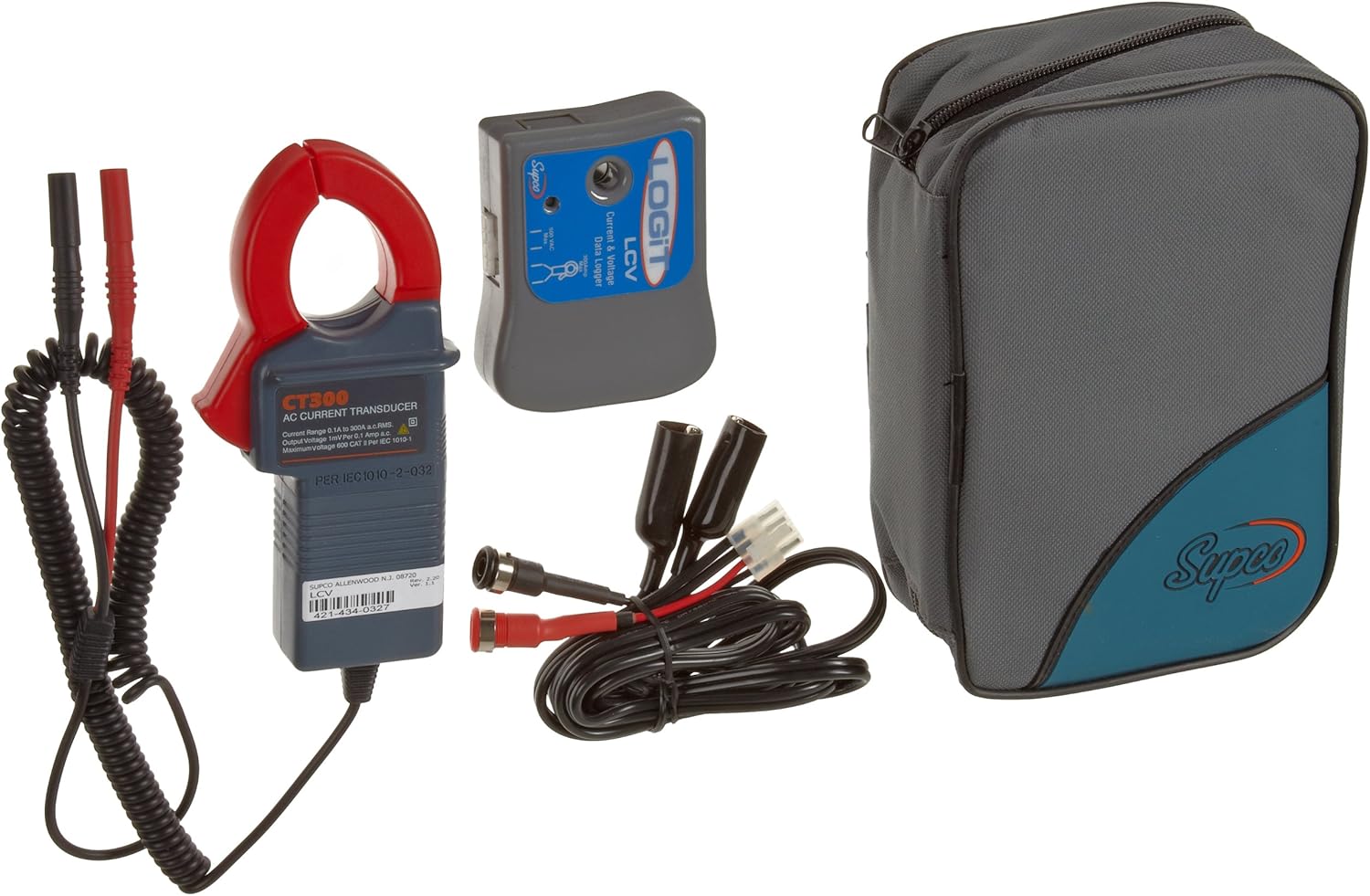

The Supco LCV LOGiT current and voltage data logger is a compact AC voltage and AC current data logger from the LOGiT series. It records external voltage and current on single-phase systems, so it suits troubleshooting, intermittent problems and checking power conditions. It measures 3" long x 2-1/2" wide x 1-3/32" high.

Key Features:

• Measures AC voltage from 0 to 500 V, with 0.1 V resolution and ±1 V accuracy
• Measures AC current from 0 to 300 A, with 0.1 A resolution and ±5% accuracy
• Stores 10,750 readings when logging voltage and current together, or 21,500 readings when logging a single channel
• Over and under alarms for both current and voltage
• Real-time data monitoring while connected to a PC, or stand-alone logging
• Selectable sample rate, with data export to Excel or text files
• Current and voltage are factory calibrated, and single-point offset calibration is available through software
• Can be combined with two other LCV units to measure three-phase systems

The LCV logs one phase at a time. A separate LOGiT software and interface package is needed to configure the logger and download data, and it is sold separately.
