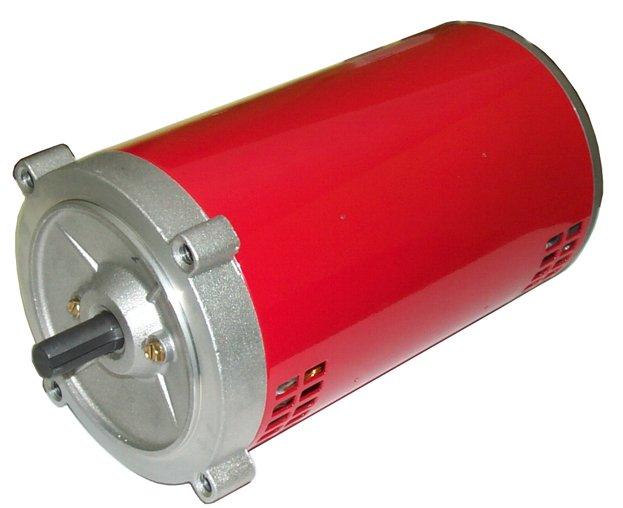

Rotom CP-R1370 Circulator Pump Motor 3/4 HP 1725 RPM 230/460V

The Rotom CP-R1370 is a 3/4 horsepower circulator pump motor designed for hot water boiler and booster pump applications. This universal replacement motor operates at 1725 RPM and features a durable open drip-proof (ODP) enclosure for reliable performance in demanding environments.

Key Specifications:

• Power: 3/4 HP
• Speed: 1725 RPM
• Voltage: 208-230/460V
• Amperage: 5.6/2.8 amps at 208-230V, 2.8 amps at 460V
• Frequency: 60 Hz
• Frame: 56C
• Shaft: 5/8" diameter x 1.2" length with keyed shaft
• Mounting: C-Face flange with 5-7/8" bolt circle
• Bearings: Ball bearing construction
• Rotation: Reversible (CW/CCW)
• Motor Diameter: 6.5"
• Body Length: 9.2"

OEM Cross References: This motor replaces Armstrong 831012-083 and Bell & Gossett 111049. Note: When replacing Bell & Gossett pumps, adapter T6-10023SL may be required to accommodate shaft size differences.

Built with quality ball bearings and featuring ambient air thermal cooling, this motor provides dependable operation for commercial and industrial circulating pump systems. Single-speed design with reversible rotation offers flexible installation options.
