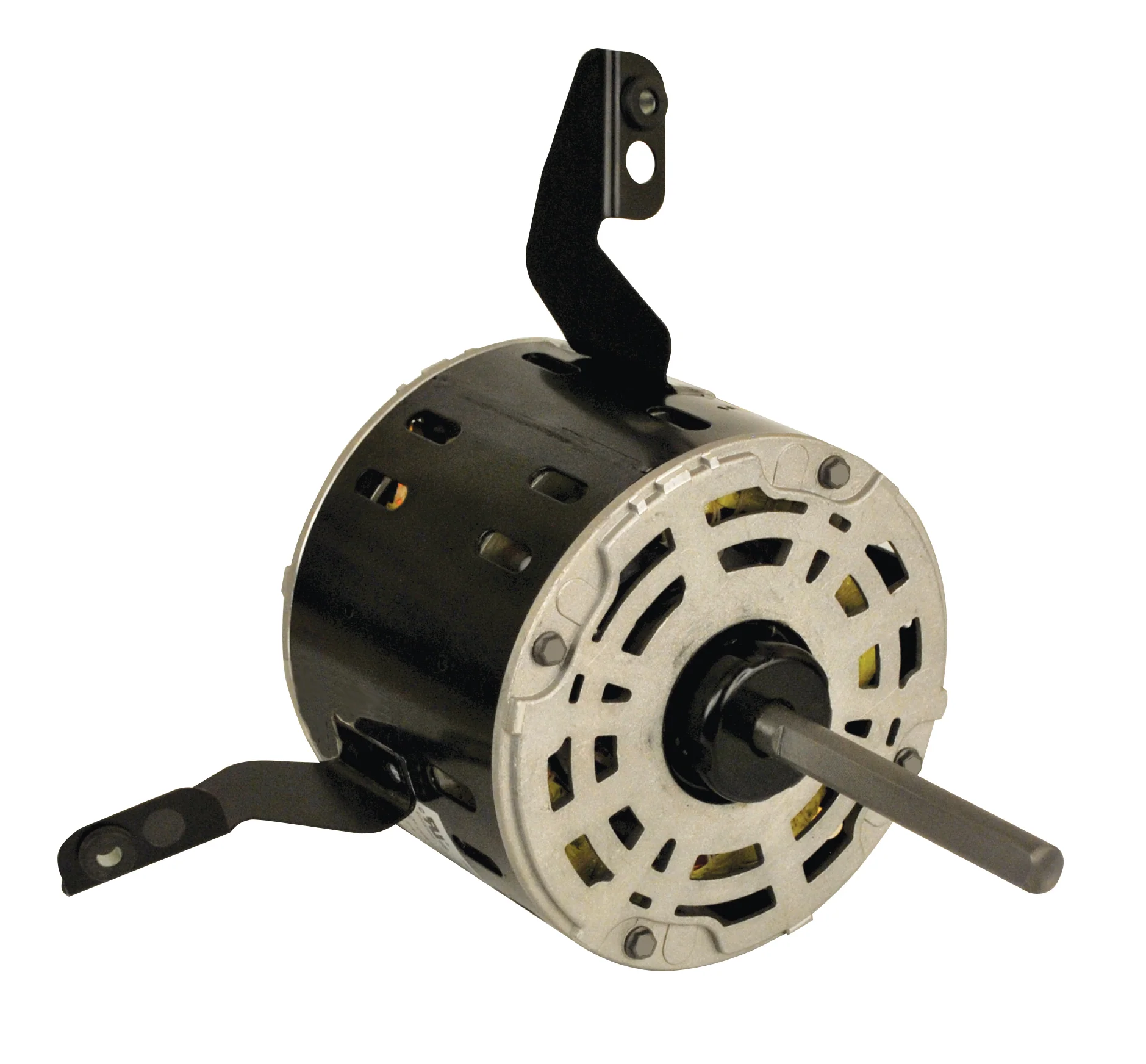

MARS 10687 1/2 HP 3-Speed Torsion Flex Furnace Blower Motor 115V

The MARS 10687 is a 1/2 horsepower, 3-speed, 48 frame torsion flex mount motor designed for direct drive furnace blower applications. This motor is engineered for reliable and efficient performance in HVAC systems with a permanent split capacitor (PSC) design suitable for various blower applications.

Key Features:

• Unique torsion flex mounting speeds installation while the special steel of the torsion flex bracket absorbs vibration for quieter operations
• Electrically reversible rotation with 3 speeds
• Sleeve bearing construction with 4-1/2 inch long, 1/2 inch diameter shaft
• Torsion mount sleeves and grommets included for easy installation
• Class B insulation with thermal overload protection
• 36-inch lead wires for flexible installation options

Technical Specifications:

• Horsepower: 1/2 HP
• Voltage: 115V
• RPM: 1075
• Full Load Amps: 7.5
• Capacitor Required: 10 MFD 370V (not included)
• NEMA Frame Size: 48
• Motor Diameter: 5-1/2 inches
• Phase: Single Phase, 60 Hz
• Standards: CUL Listed

This motor is suitable for continuous fan duty in direct drive furnace blower applications, providing energy-efficient and reliable performance for residential and light commercial HVAC systems.
