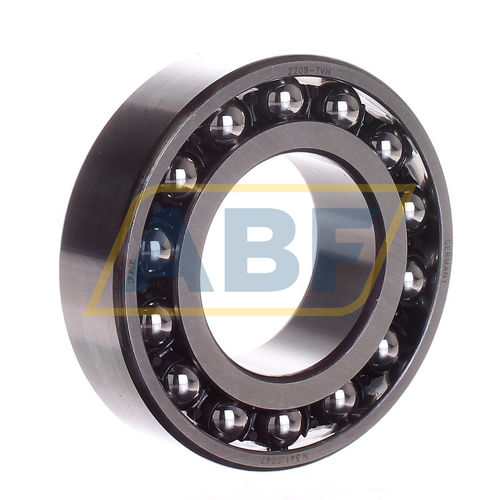

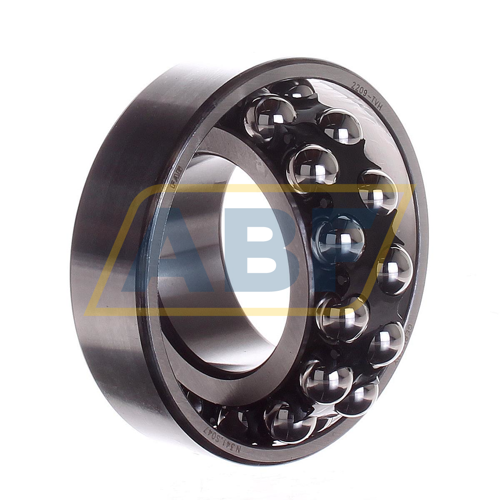

FAG 102209 Self-Aligning Double Row Ball Bearing 45x85x23mm

Manufacturer

Part Number

102209
Black Friday Price

$85.06

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The FAG 102209 is a double-row self-aligning ball bearing manufactured by FAG (Schaeffler Group), featuring a 45mm bore, 85mm outer diameter, and 23mm width. It is designed for industrial applications where shaft misalignment or deflection is a concern.

This bearing's spherical outer raceway allows the inner ring and ball assembly to compensate for angular misalignment between the shaft and housing, without negatively impacting performance or service life. The open design (no seal) makes it well-suited for controlled environments where external lubrication can be applied as needed.

Key Features:

  • Bearing Type: Double-row self-aligning ball bearing
  • Bore Diameter: 45 mm (straight/cylindrical bore)
  • Outer Diameter: 85 mm
  • Width: 23 mm
  • Seal Type: Open (unsealed)
  • Bore Type: Cylindrical (straight)
  • Tolerance Class: P0 / ABEC 1 (standard precision)
  • Cage Type: Steel cage
  • Self-Aligning: Spherical outer ring raceway compensates for shaft misalignment
  • Load Capability: High radial load capacity; moderate axial load capacity in both directions
  • Low Friction: Self-aligning design produces minimal frictional heat even at higher operating speeds

The FAG 102209 is a trusted solution for machinery subject to shaft deflection or housing misalignment, including agricultural equipment, industrial gearboxes, conveyor systems, pumps, and electric motors. As a product of the Schaeffler Group, it meets stringent precision and durability standards relied upon across global industries.
