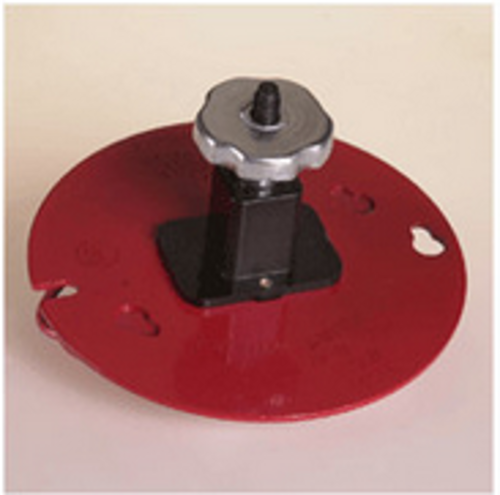

Firomatic TS150B Round Thermal Safety Switch 165°F

Manufacturer

Part Number

TS150B
Sale Price

$22.30

In Stock (9)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Firomatic TS150B is a UL-listed thermal safety switch designed to provide critical protection for fuel burner installations in commercial and industrial HVAC applications. This temperature-actuated safety device operates at 165°F and is designed to be installed in the electrical control circuit of power burners, where it serves as an automatic shutoff mechanism in the event of dangerous temperature conditions.

Key Features:

  • 165°F thermal activation temperature for reliable safety protection
  • Designed for 3-1/4" and 4" round junction boxes
  • UL Listed for safety and compliance
  • Bi-metal switching thermostat configuration for accurate temperature response
  • Fusible handwheel element can be easily replaced after activation
  • Hermetically sealed switching element in alloy housing with glass seal under vacuum
  • Brass housing with nickel-plated sheet metal cover for durability
  • Contact ratings: 120V, 60Hz, 360VA pilot duty; 1/2 HP at 12V, 60Hz

How It Works:

This thermal switch is typically installed on the ceiling near the burner and monitors ambient temperature. When the temperature reaches 165°F, the thermal link activates and immediately cuts power to the burner, preventing potential fire hazards. The fusible element is integrated into the handwheel, which can be simply replaced to restore the switch after activation. When properly installed, there are no exposed electrical wires or contacts.

Important Installation Note:

This thermal switch should NOT be used manually to start and stop the burner—it is strictly a safety device designed for automatic temperature-based shutoff protection.

Also Known As: Part number 12527, TS-150-B
