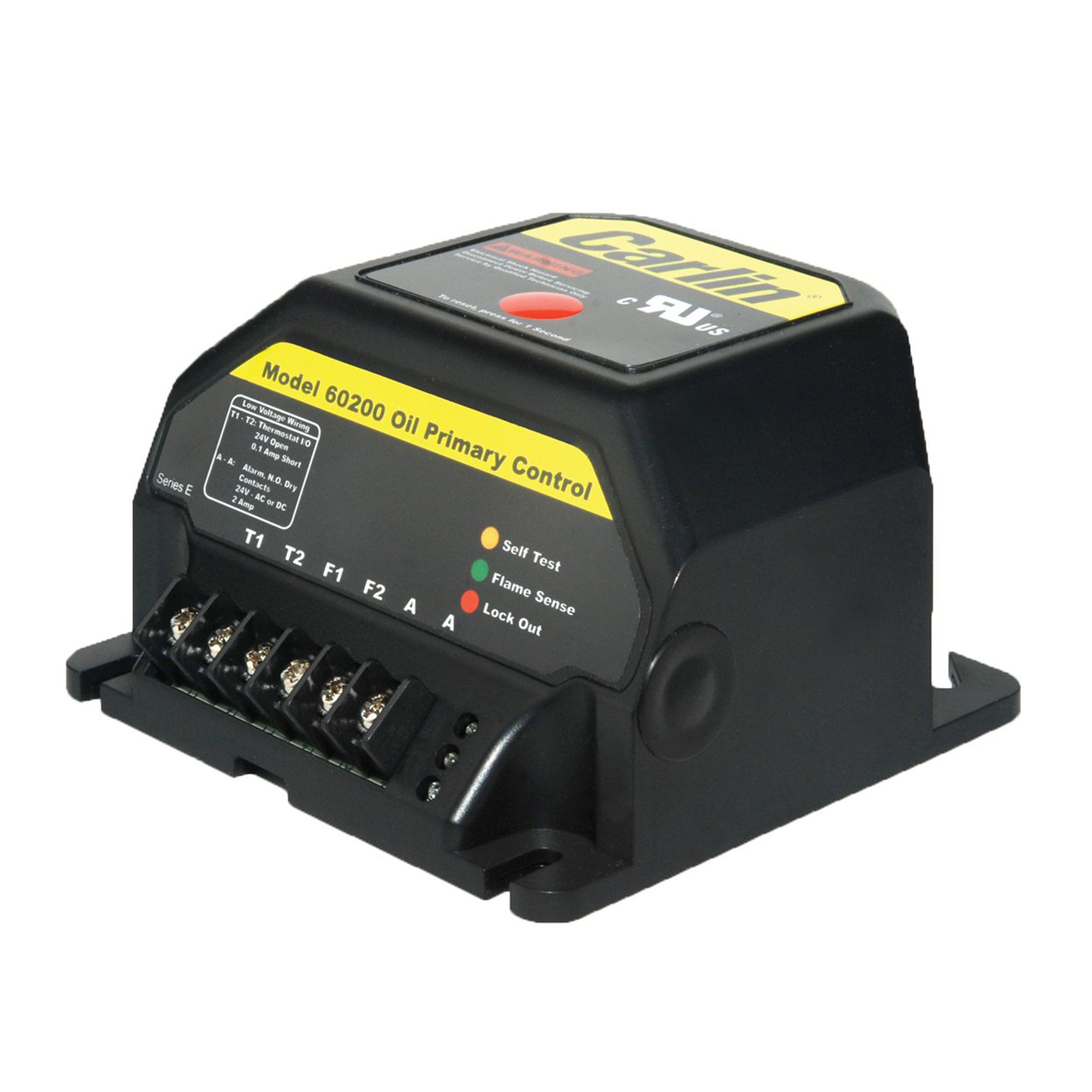

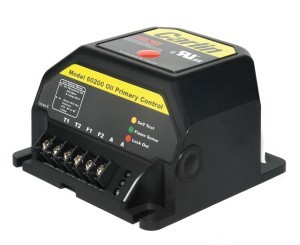

Carlin Combustion Technology 6020002S CAD Cell Oil Primary Control 120V 15/15/15 Timing

Manufacturer

Part Number

6020002S
Black Friday Price

$103.86

In Stock (7)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Carlin 6020002S is a microprocessor-based CAD cell oil primary control designed for interrupted duty applications in residential and commercial oil-fired heating systems. This advanced control features 15-second pre-purge, 15-second trial for ignition (TFI), and 15-second post-purge timing, providing precise combustion management and safety monitoring for oil burners.

Key Features:

  • Interrupted duty ignition with 15-second trial for ignition timing
  • Diagnostic LED indicators for status, lockout, and flame monitoring
  • Recycle on flame failure with automatic restart capability
  • Serviceman reset protection with latch-up after three consecutive lockouts
  • CAD cell resistance monitoring jack compatible with any multimeter
  • Alarm contacts for remote notification (24V AC/DC, 2 amps)
  • Safety Monitoring Circuit (SMC) technology with zero bleed voltage during standby
  • Oil pump bleed assist function (60 seconds)
  • Thermostat and aquastat compatible
  • Flame signal test jack for diagnostic testing

Electrical Specifications:

  • Power Input: 120 VAC, 60 Hz, 9 VA
  • Limit Circuit Input: 120 VAC, 60 Hz
  • Motor Load: 10 FLA, 60 LRA
  • Ignitor Load: 120 VAC, 60 Hz, 500 VA
  • Maximum Ambient Temperature: 140°F

The 6020002S mounts on a standard 4-inch x 4-inch junction box and can be installed on the burner, furnace, or wall. This control provides 1.3-second flame failure response time and works well with generators due to its insensitivity to frequency changes. Replaces Weil-McLain part number 643-900-317.
