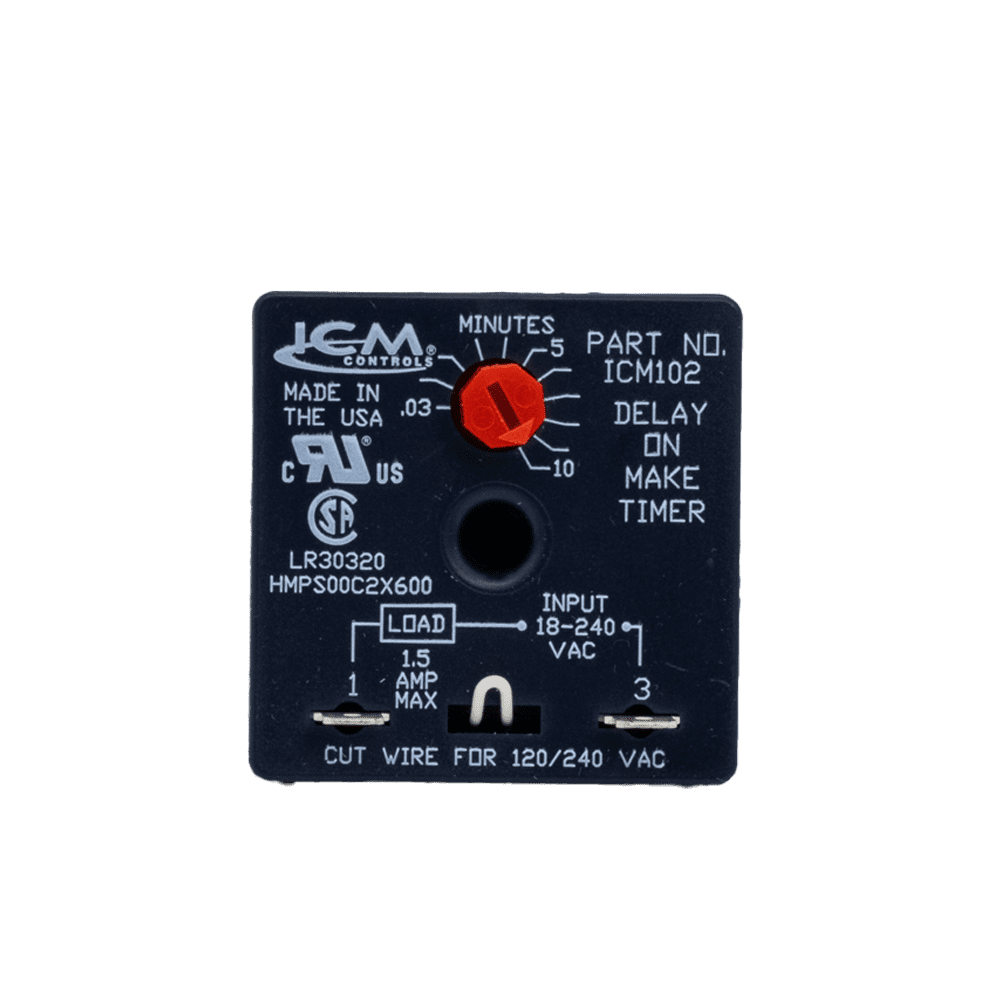

ICM Controls ICM102B Delay On Make Timer 18-240 VAC Adjustable 1.8-600 Seconds

The ICM Controls ICM102B is a delay on make timer with universal voltage operation. When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes. The ICM102B features a knob-adjustable time delay from 1.5 seconds to 10 minutes.

Key Features:

• 18 to 240 VAC/VDC universal voltage operation with 50/60 Hz frequency
• Knob-adjustable from 0.03-10 minutes (1.8-600 seconds)
• 1.5 amp power rating with 2-wire hook-up connection
• Works with anticipator-type thermostats and replaces many timers in the field
• Operating temperature range: -40 to 167°F
• Simple 2-wire installation

Applications:

• Ideal for compressor staging and stagger starting multiple motors and other equipment
• Helps to reduce power surges
• HVAC system startup delay protection
• Anti-short cycle protection for compressors
• Sequential equipment startup control

This timer replaces ICM105B, P284-2391, ICM101, ICM100, ICM102, and cross-references to TMR00157, 99P41, and B11-834. Compact design with surface mount installation for easy integration into control panels and HVAC systems.
