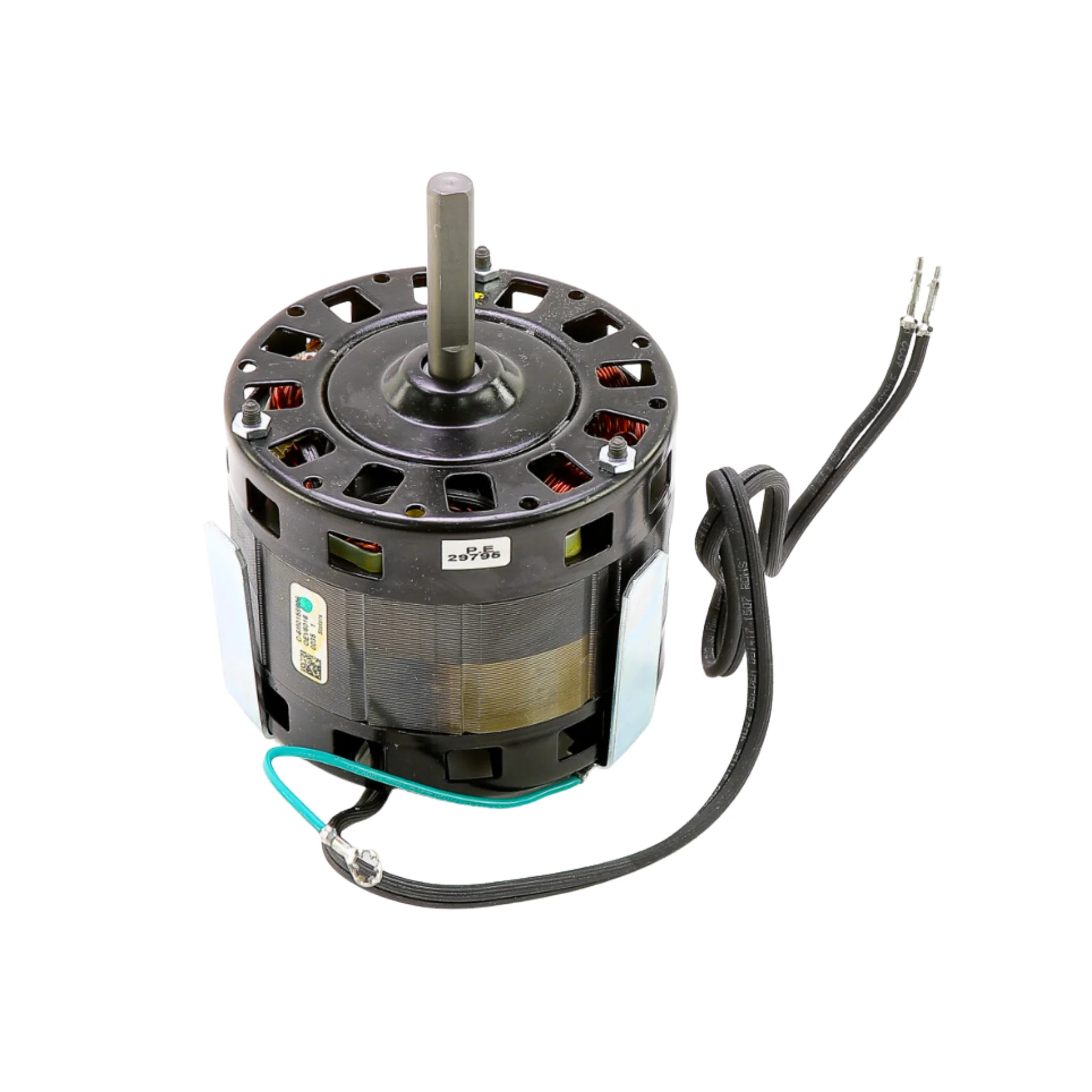

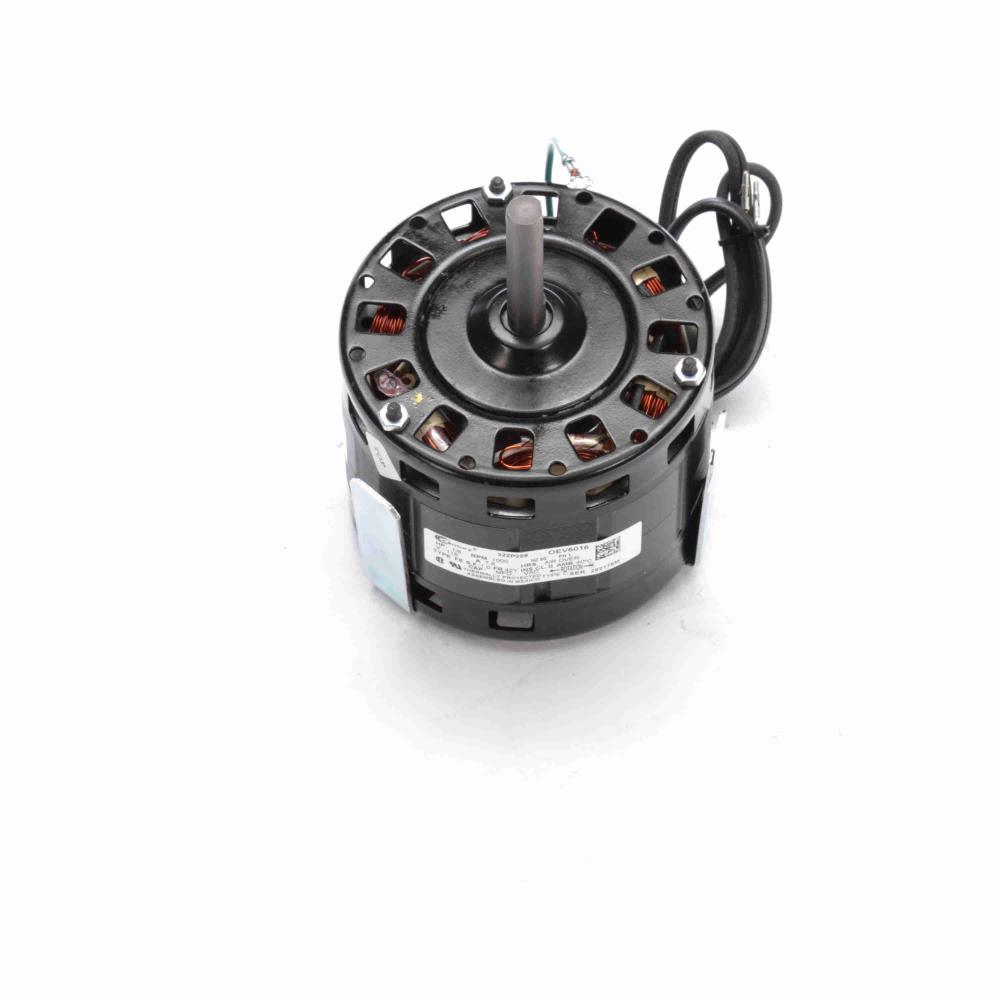

Lochinvar OEV6016 1/6 HP Replacement Motor 1000 RPM 115V Shaded Pole CCWLE

The Lochinvar OEV6016 is a 1/6 horsepower OEM replacement motor designed for reliable operation in heating and cooling equipment. This single-speed motor operates at 1000 RPM on 115 volts, drawing 7.8 amps with CCWLE (counterclockwise lead end) rotation.

Key Specifications:

• Horsepower: 1/6 HP with 1.00 service factor
• Speed: 1000 RPM, single-speed operation
• Electrical: 115V, 60Hz, single phase, 7.8 amps
• Motor Type: Shaded pole with automatic thermal protection
• Frame: NEMA 42Y with 5-inch motor diameter
• Enclosure: Open Air Over (OAO) design
• Bearings: Sleeve bearings for quiet operation
• Shaft: 1/2-inch diameter x 2-1/4-inch length with flat
• Motor Case Length: 3-7/8 inches
• Mounting: Band mount configuration
• Rotation: CCWLE (counterclockwise viewed from lead end)
• Insulation: Class B rated for 40°C ambient temperature

This motor serves as a direct OEM replacement for part numbers 322P289, 7966-311, and 7966-311P, making it compatible with various Lochinvar and Evcon heating units. The sleeve bearing design provides smooth, quiet operation while the automatic thermal protector guards against overheating. The 42Y frame with special mounting configuration ensures easy installation in existing applications.
