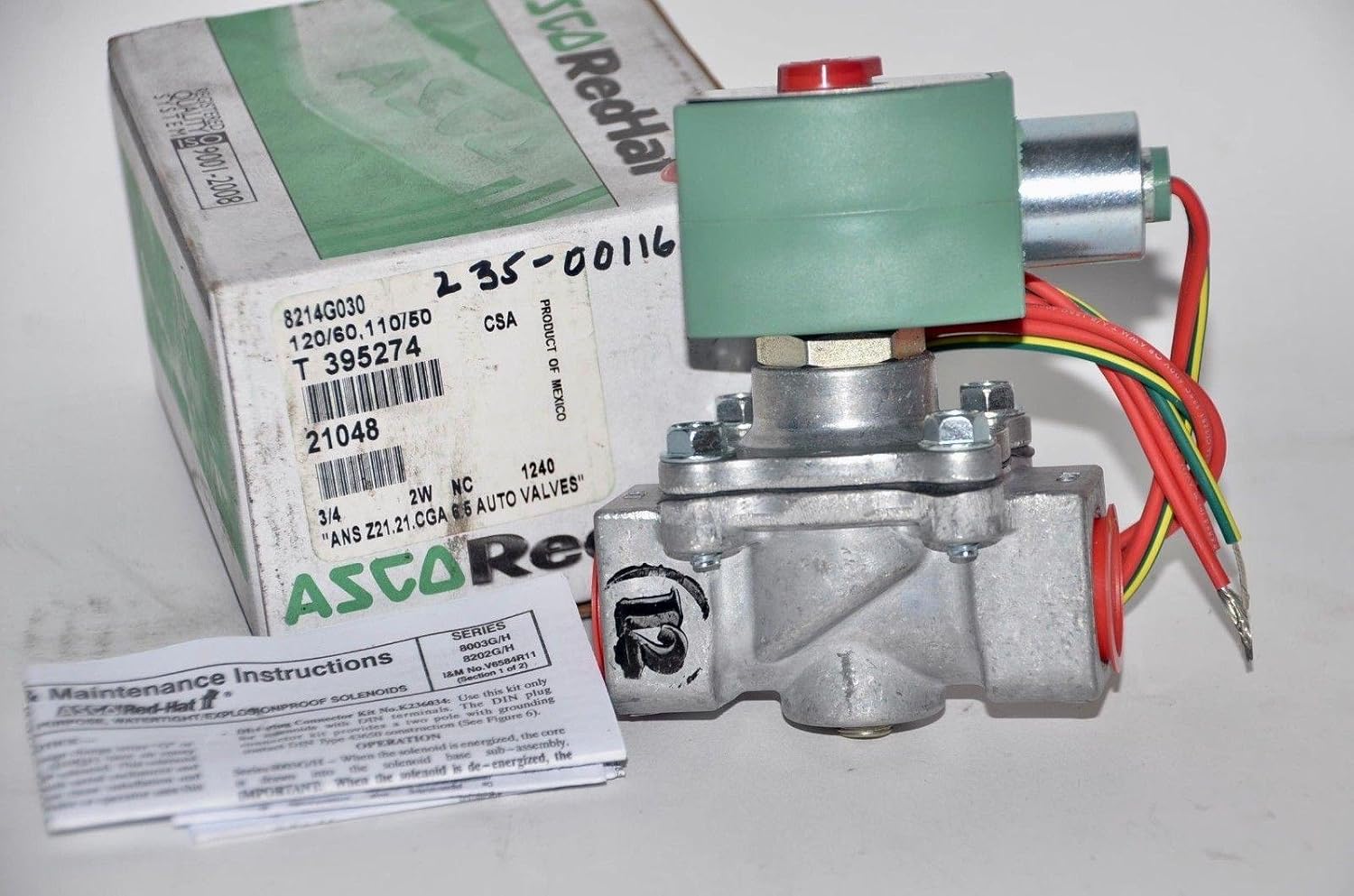

Asco 8214G030 3/4" 2-Way N.C. Gas Solenoid Valve 120VAC 247500 BTU

The Asco 8214G030 is a 3/4-inch normally closed (N.C.) gas solenoid blocking valve designed for reliable shutoff control in gas-fired heating equipment and appliances. This 2-way valve operates on 120/60Hz or 110/50Hz VAC power and is rated for gas service up to 247,500 BTU at 5 PSI maximum operating pressure.

Key Specifications:

• Port size: 3/4 inch NPT threaded connections
• Valve configuration: 2-way, normally closed (N.C.)
• Voltage: 120/60Hz or 110/50Hz VAC
• Maximum capacity: 247,500 BTU
• Maximum operating pressure: 5 PSI
• Function: Blocking valve for gas shutoff applications
• Coil type: General purpose for gas service

Features and Benefits:

• Normally closed design provides fail-safe shutoff when de-energized
• Asco RedHat II series construction ensures long service life
• Suitable for natural gas and LP gas applications
• Compact design for easy installation in tight spaces
• Manual opening option available for testing and emergency operation
• Encapsulated coil resists moisture and contaminants

The 8214G series valves are commonly used in commercial and industrial gas-fired equipment including boilers, furnaces, ovens, and process heaters where automatic gas shutoff control is required. The normally closed configuration ensures the valve blocks gas flow when power is interrupted, providing critical safety functionality.
