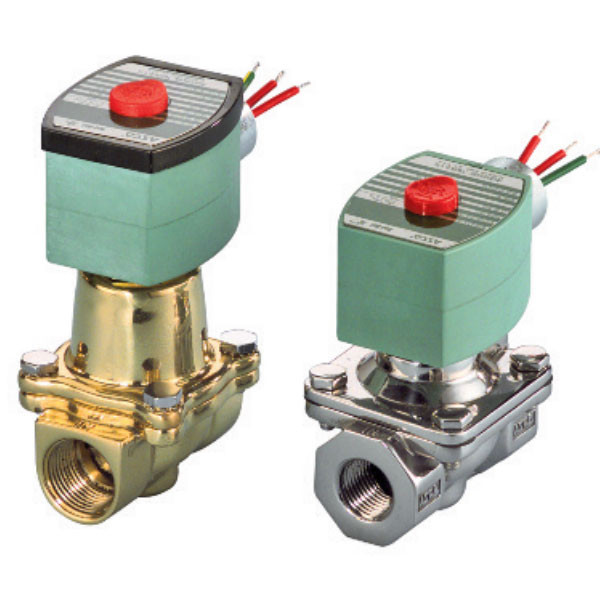

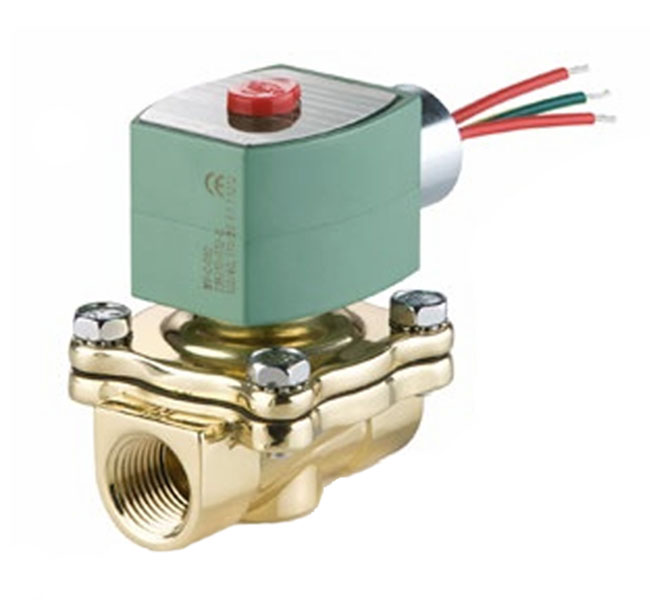

Asco 8210G009HW 3/4" 2-Way Normally Closed Hot Water Solenoid Valve 120V AC

The ASCO 8210G009HW is a pilot-operated, 2-way normally closed solenoid valve specifically engineered for hot water service applications. Designed for industrial applications involving hot water up to a maximum temperature of 210°F, this valve features construction compatible with brass and EPDM seals.

Key Specifications:

• Brass body construction with 3/4" FPT connections and 3/4" orifice
• Operates on 110/50 or 120/60 VAC power
• 5 Cv flow coefficient for high flow capacity
• Maximum pressure rating of 125 PSI and minimum pressure rating of 5 PSI
• EPDM diaphragm ensuring superior high-temperature fluid resistance
• UL Safety Shutoff valve certification

Applications:

• Industrial settings, water systems, and irrigation systems
• Car wash equipment, laundry systems, air compressors, and industrial water control
• Boiler and heat exchanger applications
• Pumps and fluid control systems

Standard enclosure is NEMA 4X, IP65 rated (watertight and corrosion-resistant), with optional explosionproof enclosures available for hazardous locations. This valve replaces the older 8210D009HW model. The normally closed configuration prevents flow until the valve is energized, providing fail-safe operation for critical applications.
