Beckett 1502UR Drain Pan Safety Switch 125-250 VAC with Drill Clamp

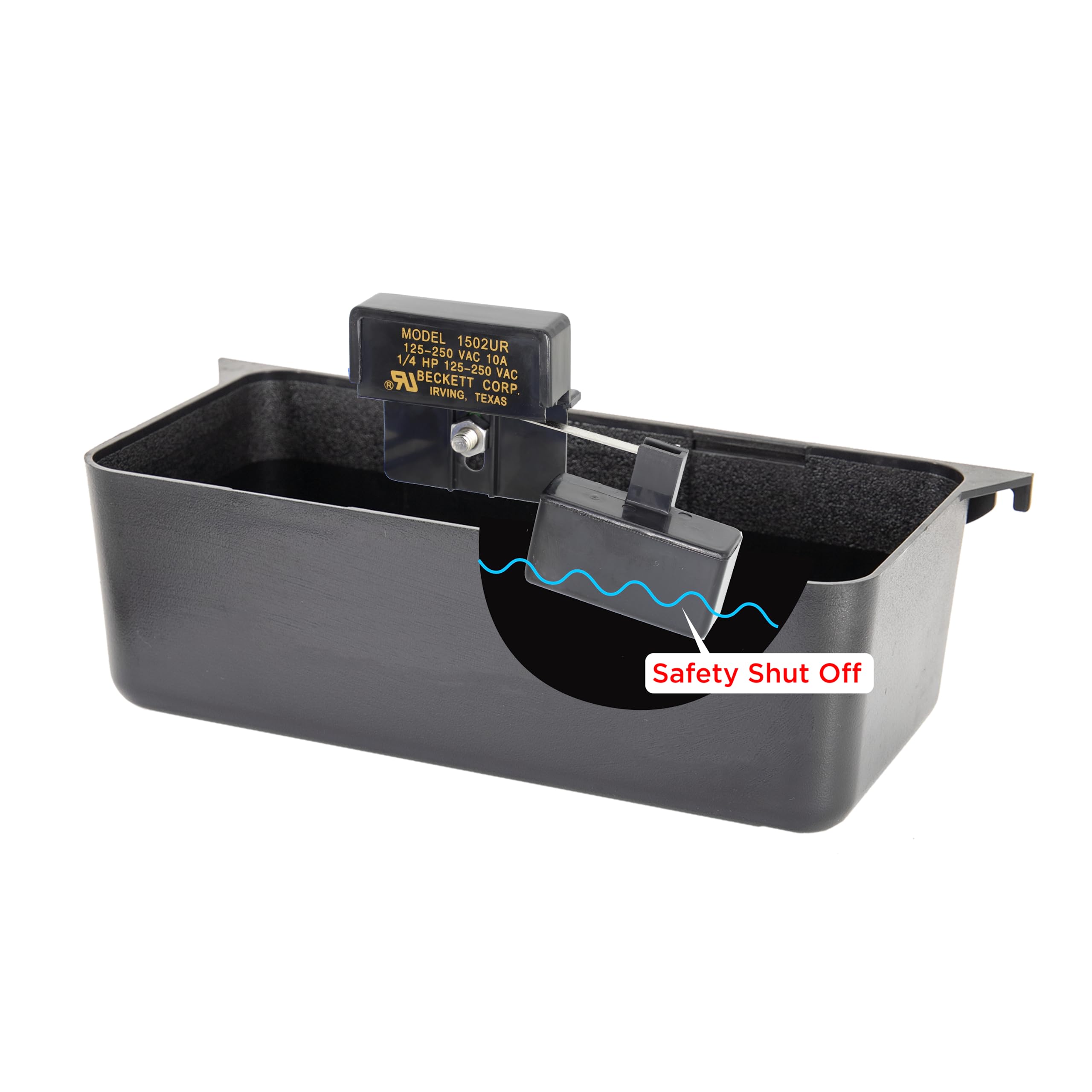

The Beckett 1502UR is an easy-to-use float actuated drain pan safety switch that provides a reliable means to monitor high water levels in HVAC condensate drain pans. This in-pan condensate overflow safety switch serves to prevent the pan from overflowing while offering reliable equipment shutdown.

Key Features:

• 125-250 VAC, 10 Amp rated capacity
• UR rated for safety and reliability

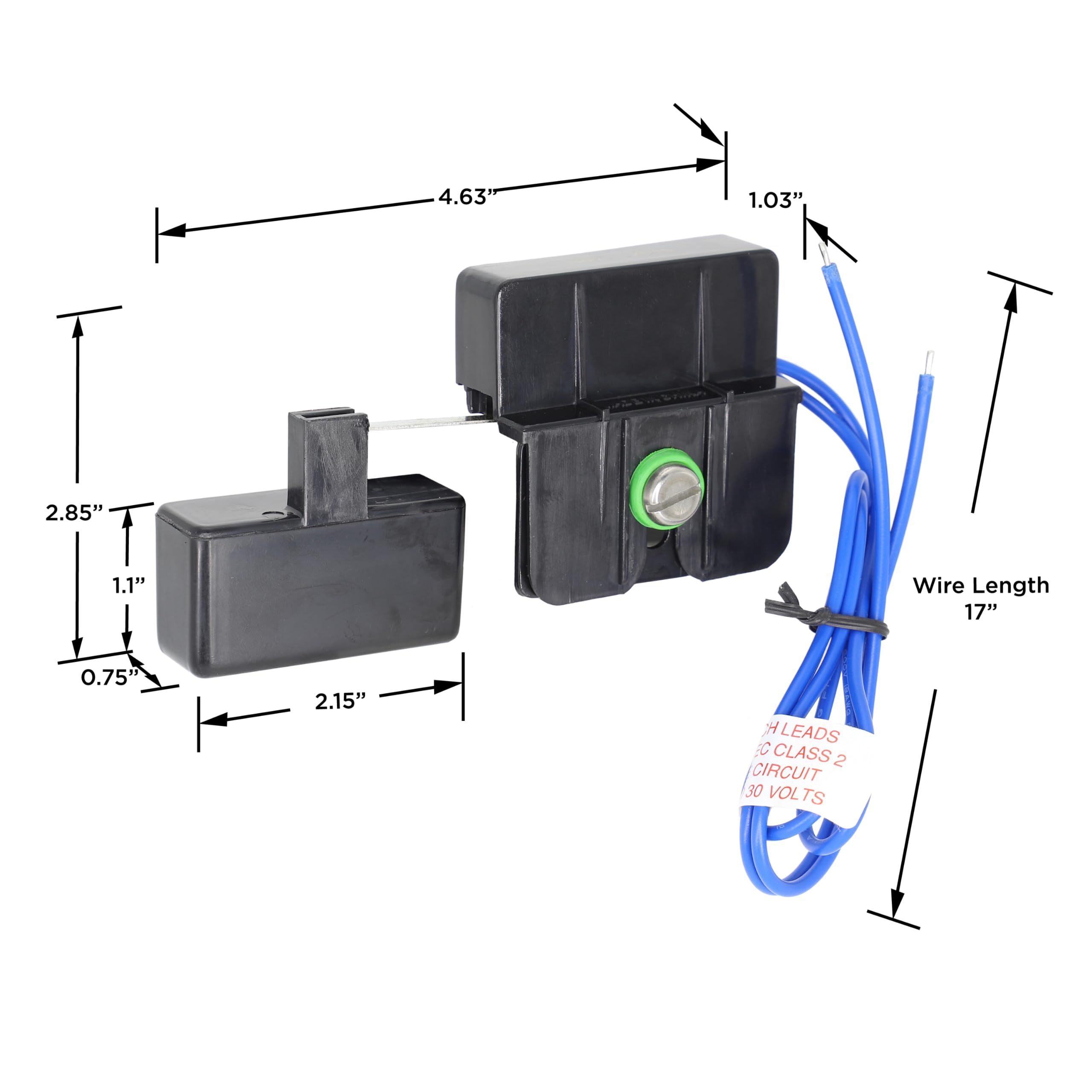

• 17-inch wire length for flexible installation
• Normally closed configuration

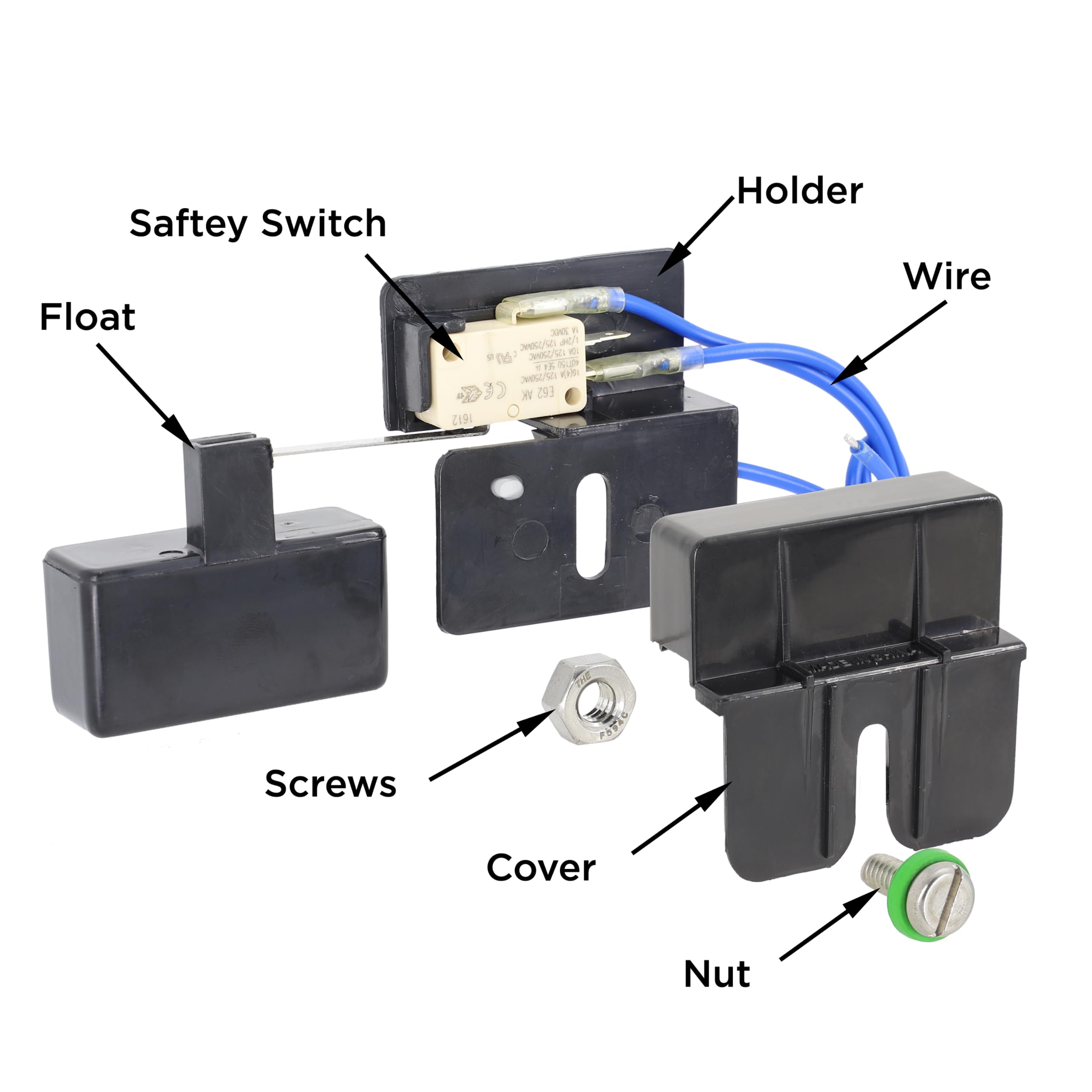

• Single pole, double throw, single break snap action switches with silver contacts
• Includes drill clamp for easy mounting
• Safe for either AC or DC low voltage applications
• Terminals suitable for .020" x .187" female spade connections

The switch may be wired directly to the system to turn off the air conditioner or furnace equipment, or it can be wired to sound an alarm if the water level becomes too high. This provides protection against water damage from condensate overflow in air conditioning and heating systems.
