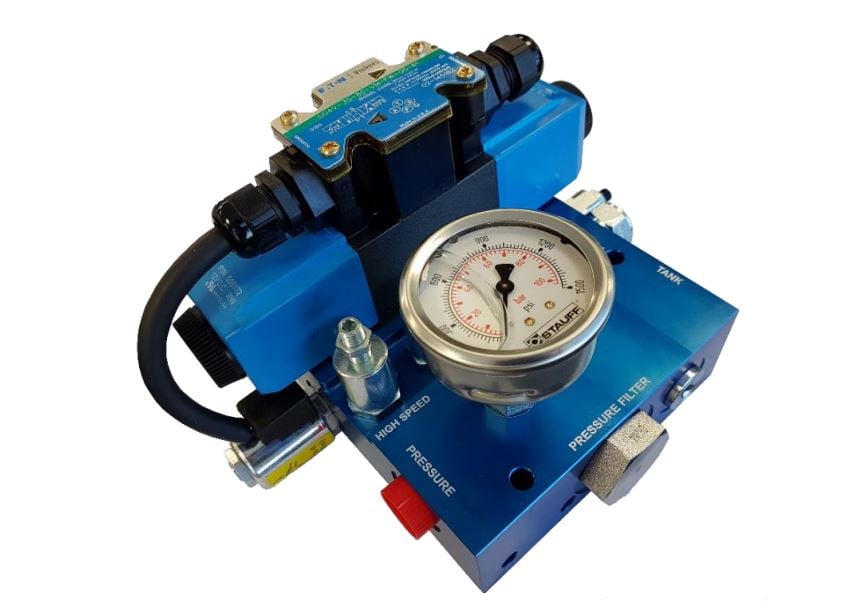

Accusteer 600-0013 Dual Speed Hydraulic Steering Manifold for Autopilot

The Accusteer 600-0013 is a dual-speed hydraulic steering manifold designed to interface hydraulic steering systems with electric autopilot controls on marine vessels. This precision-engineered manifold enables seamless integration between manual hydraulic steering and automated helm control systems.

Key Specifications:

• Dual-speed operation for improved autopilot response and efficiency
• 12V DC solenoid with 2.5 amp maximum current draw
• Maximum input flow rate: 12 gallons per minute
• Low speed flow rate: 4 GPM maximum
• High speed flow rate: 6 GPM maximum
• Maximum operating pressure: 1000 PSI
• Relief pressure: 750 PSI
• -06 SAE ORB port configuration
• Includes -06 SAE ORB to 1/4 inch NPT port adapters
• Operating temperature range: -14°F to +122°F (-10°C to +50°C)

This manifold is essential for vessels equipped with autopilot systems, allowing the autopilot to hydraulically control the rudder or outboard motor while maintaining full manual steering capability. The dual-speed feature provides precise low-speed control for course holding and higher-speed response for course corrections, optimizing both accuracy and pump efficiency.
