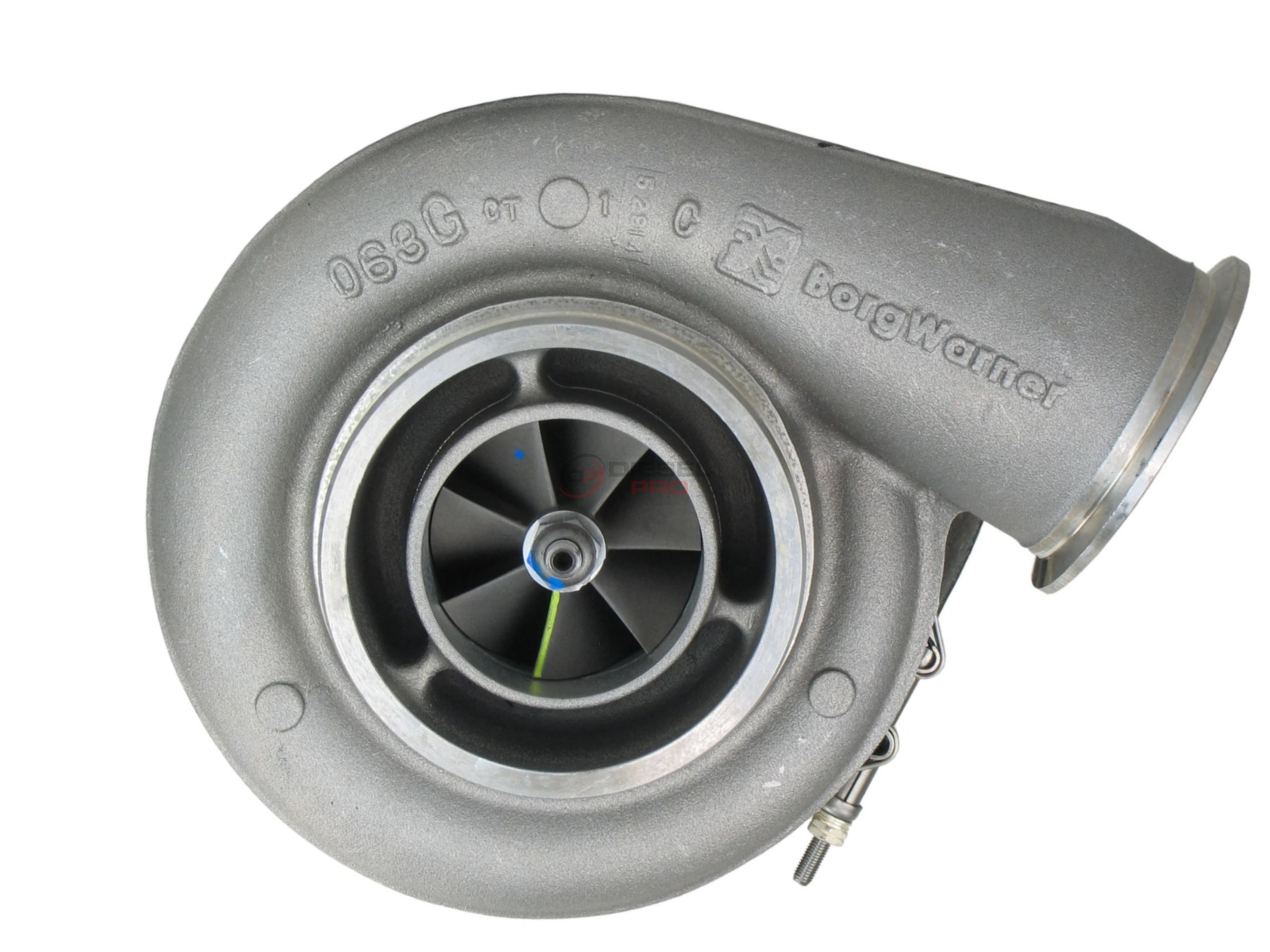

BorgWarner 171702BW S400 Turbocharger for Detroit Diesel Series 60

The BorgWarner 171702BW is a high-performance S400 series turbocharger designed for Detroit Diesel 12.7L Series 60 engines rated at 500-550 horsepower. This genuine BorgWarner turbocharger features advanced engineering to deliver improved boost response, durability, and extended service life for heavy-duty diesel applications.

Key Specifications:

• Turbo Model: S400/TMF5102
• Compressor Inducer Diameter: 75mm (2.94 inches)
• Compressor Exducer Diameter: 100mm (3.94 inches)
• Turbine A/R Ratio: 1.32
• Turbine Exducer Diameter: 88mm (3.47 inches)
• Bearing Style: Journal bearing (non-ball bearing)
• Compressor Outlet: V-Band
• Cooling Method: Oil-cooled
• Cartridge/CHRA: 171703

Features:

• Upgraded bearing system for enhanced durability
• Cast aluminum compressor housing with natural finish
• Cast iron turbine housing
• QR code warning tag for diagnostic information
• Includes necessary gaskets

What's Not Included: Wastegate actuator, exhaust adapter, intake adapter, and oil adapter are sold separately.

Cross Reference Part Numbers: 171702, 171710, 23523197, D91080006N, D91080006R, 170-070-0483, 23518588, 23518597, 2585838C91, 466713-X005, AVT171702, BWC171702, KYS171702, TUR103DD, R23518588, 14969880029

This turbocharger is designed for 2000 and newer Detroit Diesel Series 60 engines and is also compatible with select International/Navistar applications. The unit delivers proven performance and reliability for demanding commercial trucking and heavy equipment applications.
