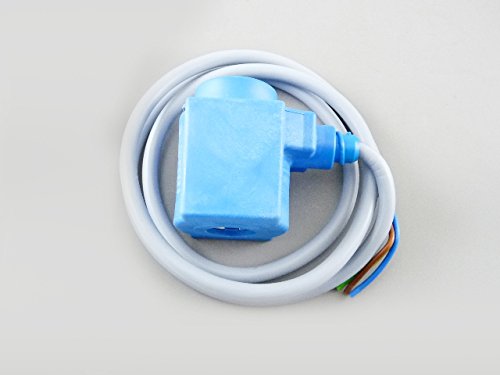

Danfoss 018F6260 Solenoid Coil AC with Cable - BF115CS 115V 1M

The Danfoss 018F6260 is a BF115CS solenoid coil designed for 115V AC operation with IP67 enclosure rating, making it ideal for refrigeration, freezing, and air conditioning applications in moist environments. This clip-on style coil features a molded 1-meter (40-inch) 3-core cable connection for reliable electrical connection in demanding conditions.

Key Features:

• 115V AC supply voltage, 60 Hz frequency
• IP67 enclosure rating for protection in high humidity environments
• 13.5mm actuator size
• Class H coil winding insulation to IEC 85 standard
• Power consumption: 11W at 50Hz, 13W at 60Hz
• Wide ambient temperature range: -40°C to +80°C (-40°F to 175°F)
• Clip-on fastening system allows tool-free installation
• Continuous duty rating for reliable long-term operation

Danfoss solenoid valves and coils are ordered separately to allow maximum flexibility with both clip-on and traditional fastener systems. The encapsulated design ensures long operating life even under extreme conditions found in refrigeration systems. This coil meets EN60730-1 approval standards for safety and reliability.
