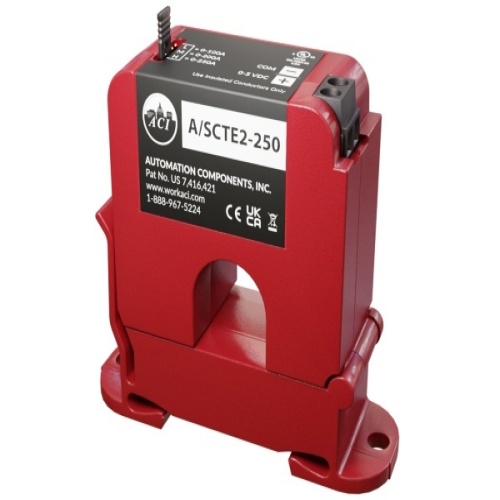

ACI 142383 Split Core Current Sensor 0-5 VDC 250 Amp

The ACI 142383 (A/SCTE2-250) is a split-core analog current sensor designed for AC current monitoring applications where equipment status and performance need to be tracked. This voltage output sensor provides a 0-5 VDC signal and can monitor currents up to 250 amps, making it ideal for monitoring pumps, compressors, fans, and other single-speed loads.

Key Features:

• Split-core design allows installation without disconnecting wires, perfect for retrofit applications and service technician use
• 0-5 VDC voltage output for direct connection to building management systems and PLCs
• 250 amp maximum current rating
• DIN rail mounting foot included for easy panel installation
• Average current measuring method optimized for pure sinusoidal AC waveforms
• Five-year limited manufacturer warranty

Applications:

• Load trending and preventative maintenance
• Single-speed motor monitoring (pumps, compressors, fans)
• Process control and equipment verification
• LEED projects and ROI calculations

Important Note: This voltage output sensor is designed for applications with pure sinusoidal waveforms and should not be used with switching power supplies or variable frequency drives. For VFD applications or waveforms with distortion/noise, ACI recommends their RMS series sensors with 4-20 mA output.
