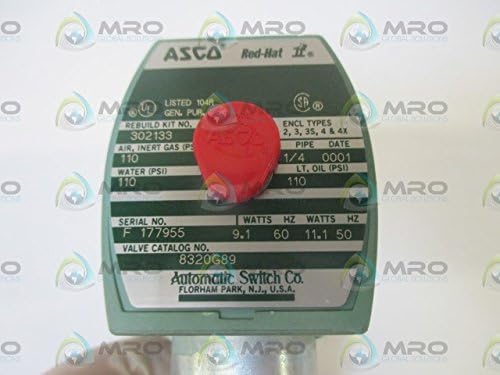

Asco 8320G89 3-Way Direct Acting Solenoid Valve 1/4" NPT Brass Normally Closed

The ASCO 8320G89 is a direct-acting, general service solenoid valve designed for industrial and commercial fluid control applications. This 3-way valve features a durable brass body construction and 1/4" NPT threaded connections, making it suitable for controlling air, inert gases, water, and light oils up to 300 SSU viscosity.

Key Features:

• 3-way normally closed (NC) configuration with direct-acting poppet design
• Brass body construction for corrosion resistance and durability
• 1/4" NPT pipe connections on all three ports for in-line piping flexibility
• Operating pressure range: 0-110 PSI differential pressure
• No minimum pressure differential required for operation
• Mountable in any position for installation versatility
• Compatible with air, inert gases, water, and light oils
• Available with multiple voltage options (specify when ordering)
• Optional watertight or explosionproof enclosures available

The ASCO 8320 Series is known for its reliability and broad application range. The 3-way design features three pipe connections and two orifices, where one orifice opens while the other closes and vice versa. This configuration is ideal for alternately applying and exhausting pressure to valve actuators or single-acting cylinders. All NPT connections are integrated into the valve body to facilitate straightforward in-line piping installation.
