Dinosaur Electronics IMT-24VAC 24V AC Park Model Ignitor Board Tester

The Dinosaur Electronics IMT-24VAC is a dedicated ignition control circuit board tester designed specifically for diagnosing 24 Volt AC park model furnace ignitor boards. An essential tool for RV technicians and service professionals, this tester takes the guesswork out of troubleshooting park model heating system failures.

Key Features:

• 24V AC Compatibility: Designed exclusively for 24 Volt AC park model ignitor boards
• Independent Sense Circuit Testing: Tests local and remote flame sense circuits separately for precise diagnostics

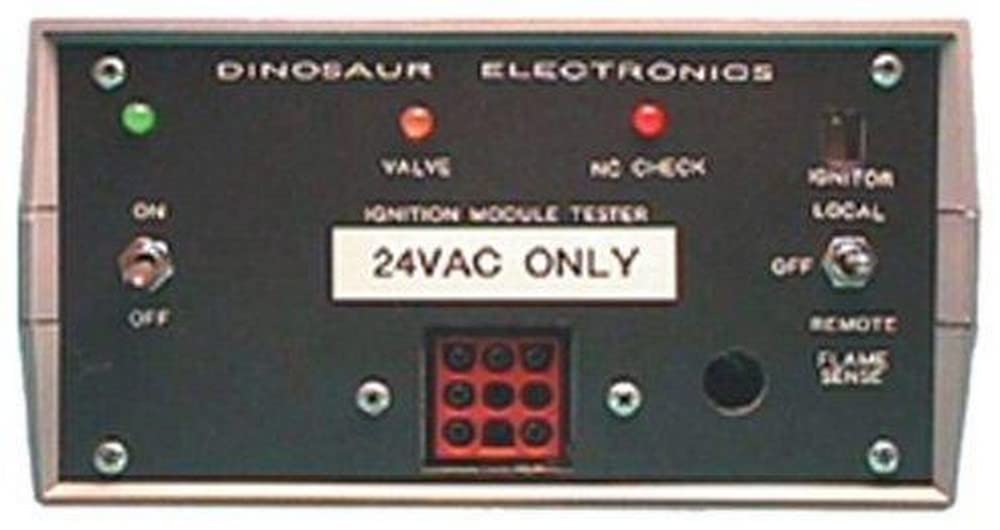

• Visual Indicator Lights: Includes a Tester Power light, Valve Light (illuminates when the board applies power to the gas valve circuit), NC Check Light (activates on power-up and during lockout), and a Spark/Ignitor Lamp to confirm spark output
• Flame Simulation: Built-in Flame Switch simulates a flame signal to verify board response
• Complete Cable Set: Includes a Main Cable (connects to edge connector on board) and a High Voltage Wire (connects to spark terminal)
• Compatible OEM Part Numbers: Supports boards including OEM part numbers 5119 and 7705-315

The IMT-24VAC connects directly to the ignitor board's edge connector and spark terminal, allowing technicians to walk through the full ignition sequence — including delay timing, ignition attempts, valve output, and flame sense — without installing the board in the appliance. A must-have diagnostic tool for anyone servicing 24 VAC park model furnaces.
