Carrillo M9056 High-Performance Forged Piston Compression - 93mm 12.5 1

The Carrillo M9056 is a high-performance forged piston designed for Polaris RZR XP900 and RZR XP1000 applications. Engineered by CP-Carrillo, a globally respected name in motorsport, this piston delivers exceptional strength and reliability for both street performance and racing applications.

Key Specifications:

• Bore diameter: 93mm standard bore
• Compression ratio: 12.5:1
• Premium forged construction for maximum strength
• Compatible with CPN-3661 ring pack
• Designed for non-OEM turbo applications
• Uses W787-2000-15CP1C wrist pin

Applications:

• 2014-2018 Polaris RZR XP1000 (93mm bore x 73.5mm stroke, 999cc)
• 2015-2018 Polaris RZR XP900 (93mm bore x 64.4mm stroke, 999cc)

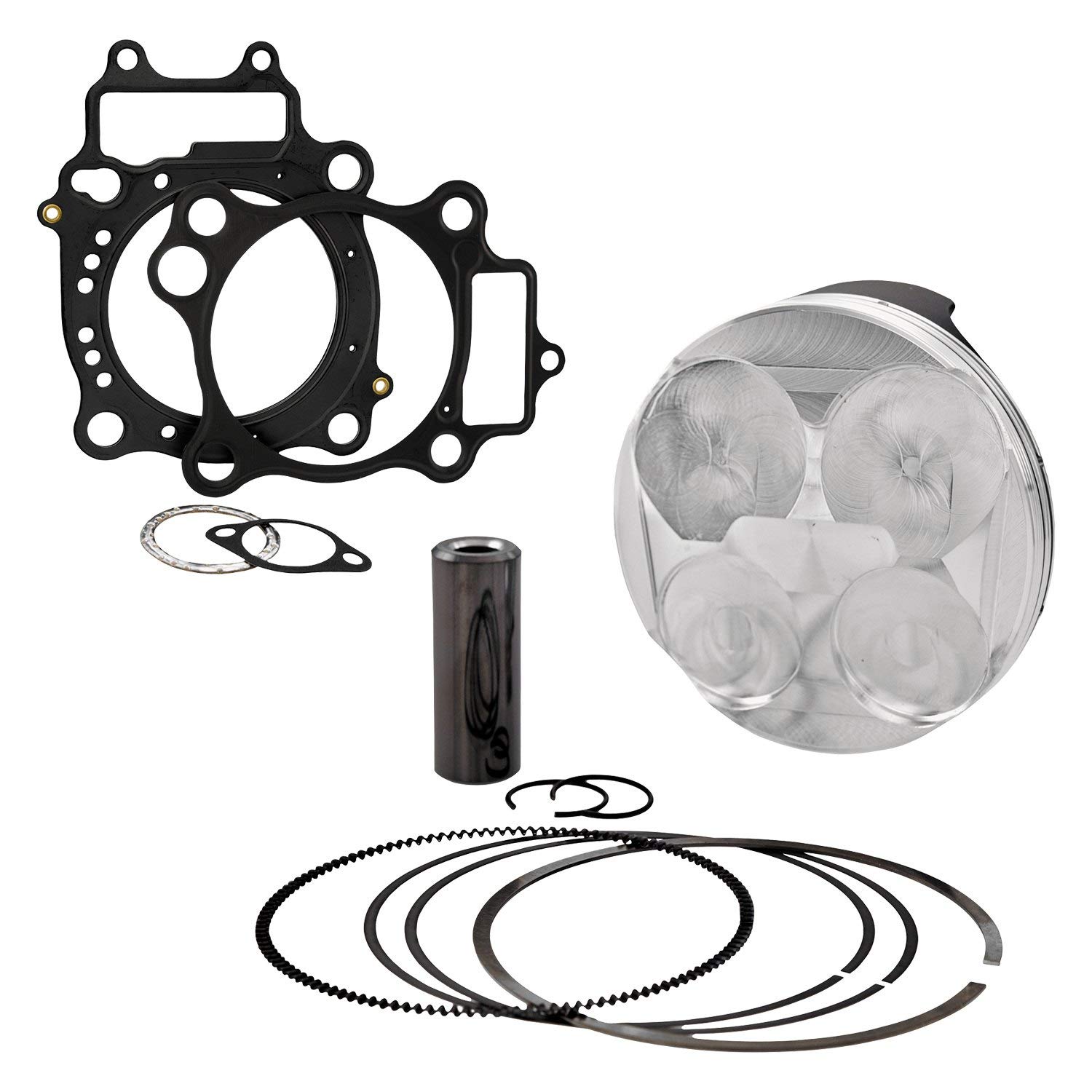

This piston is part of a complete kit (CPK9056) and requires proper installation by a qualified technician. CP-Carrillo pistons are precision-engineered to meet the demands of high-performance powersports engines, offering superior durability and consistent performance under extreme conditions.

Note: Not CARB-approved. Not legal for use in California on pollution-controlled vehicles.
