Carrillo M9014 High-Performance Forged Piston Kit 97mm Bore 60.8mm Stroke

The Carrillo M9014 is a premium forged aluminum piston kit designed for high-performance powersports applications, particularly Can-Am DS450 models. Featuring a 97mm bore and 60.8mm stroke configuration with a 13:1 compression ratio, this complete kit delivers enhanced power and durability for demanding ATV applications.

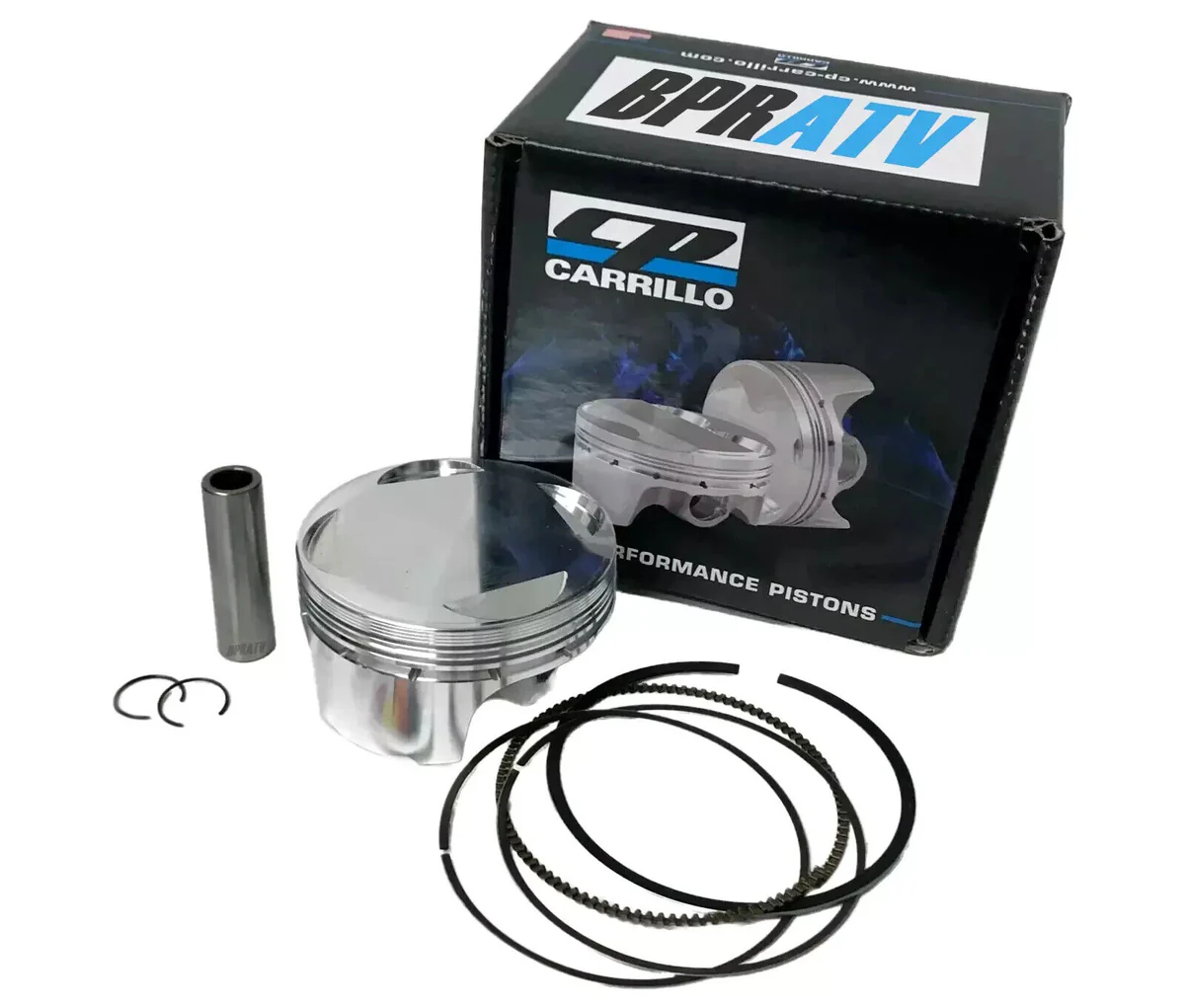

Kit Includes:

• Forged aluminum piston constructed using CP's X-forging process for optimal strength-to-weight ratio
• Wrist pin with floating pin style design
• Pin locks (wire locks/circlips)
• Complete ring set with gas nitrided steel top ring, cast iron second ring, and nitride coated stainless steel oil ring

Key Performance Features:

• Double pin oilers deliver increased lubrication from cylinder wall to wrist pin
• Radiused dome design maximizes quench while eliminating hot spots that can cause detonation
• V-shaped accumulator groove machined into second ring land to manage excess blowby
• Gas nitrided top ring facing for superior wear resistance
• X-forging technology minimizes friction and weight without compromising structural integrity

CP-Carrillo pistons are manufactured in the USA using advanced 5-axis CNC machining and sophisticated 3D modeling software. Each piston undergoes rigorous quality control and inspection to ensure the tightest tolerances in the industry. Designed through extensive research and development with input from top motorsports teams, the M9014 represents over 50 years of CP-Carrillo engineering excellence.
