UMI Performance 363534-R Front & Rear Sway Bar Kit Red GM B-Body

The UMI Performance 363534-R is a complete front and rear sway bar kit engineered to dramatically reduce body roll, minimize understeer, and improve cornering stability. Both bars are manufactured from 4140 chromoly steel and formed as a single piece for maximum strength and long-term durability. Available in UMI red powder coat finish (suffix -R) or gloss black (suffix -B).

Front Sway Bar (Part No. 3635):

• 1.375" tubular construction — significantly more rigid than the factory bar
• CNC-bent for a precise, accurate fit every time
• Installs in the stock location — no modifications required
• Includes greasable polyurethane bushings and new polyurethane end links
• Available in UMI red or gloss black powder coat

Rear Sway Bar (Part No. 3634):

• 1.125" diameter solid bar for reduced body roll
• Heat-treated and heat-formed for superior shape memory over cold-bent alternatives
• Direct bolt-on design for UMI control arms
• Compatible with factory control arms using optional bracket kit (PN 3636, sold separately)
• Mounting location mirrors GM's original design for a clean, straightforward installation
• Supplied with Grade 8 mounting hardware and locknuts
• Available in UMI red or gloss black powder coat

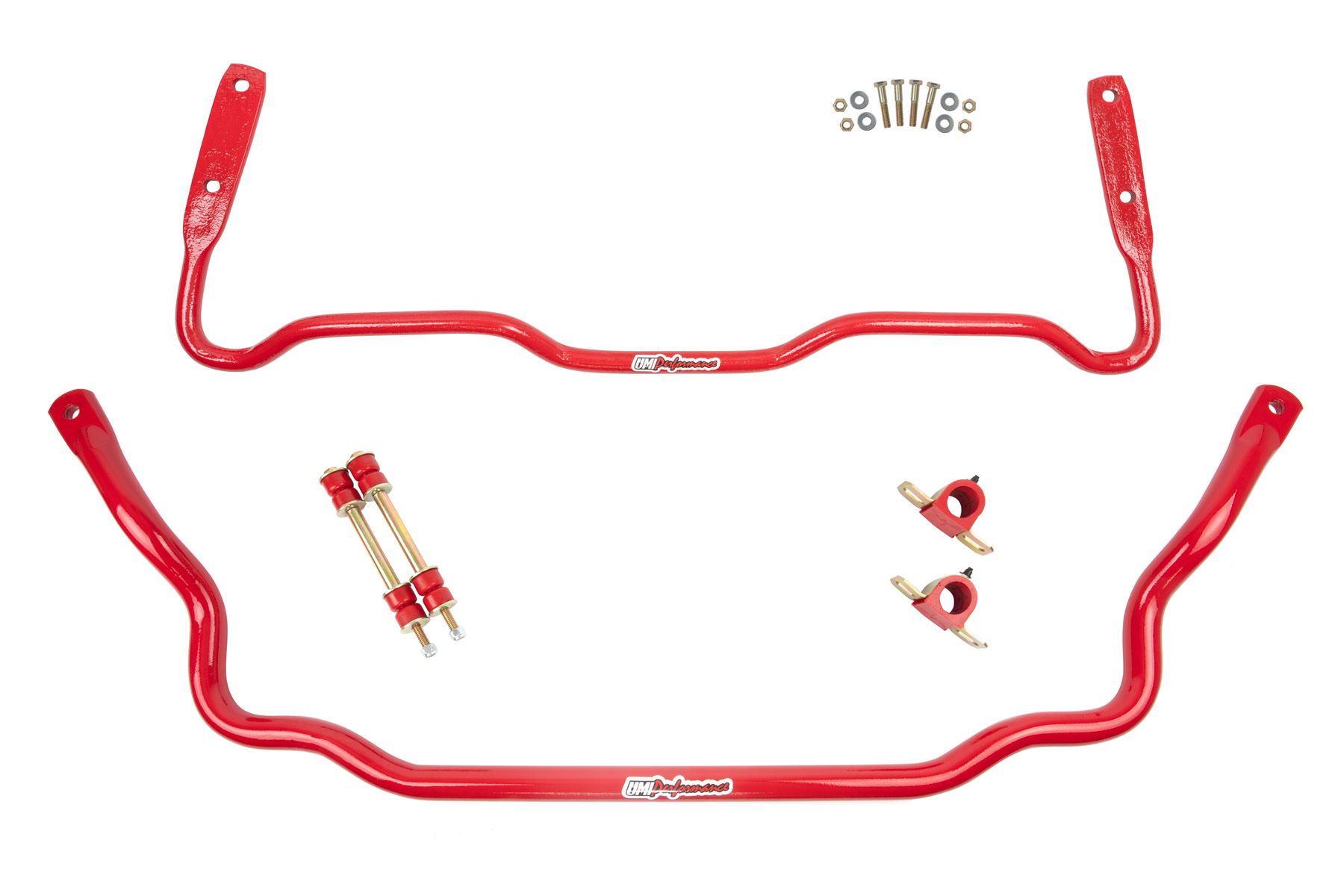

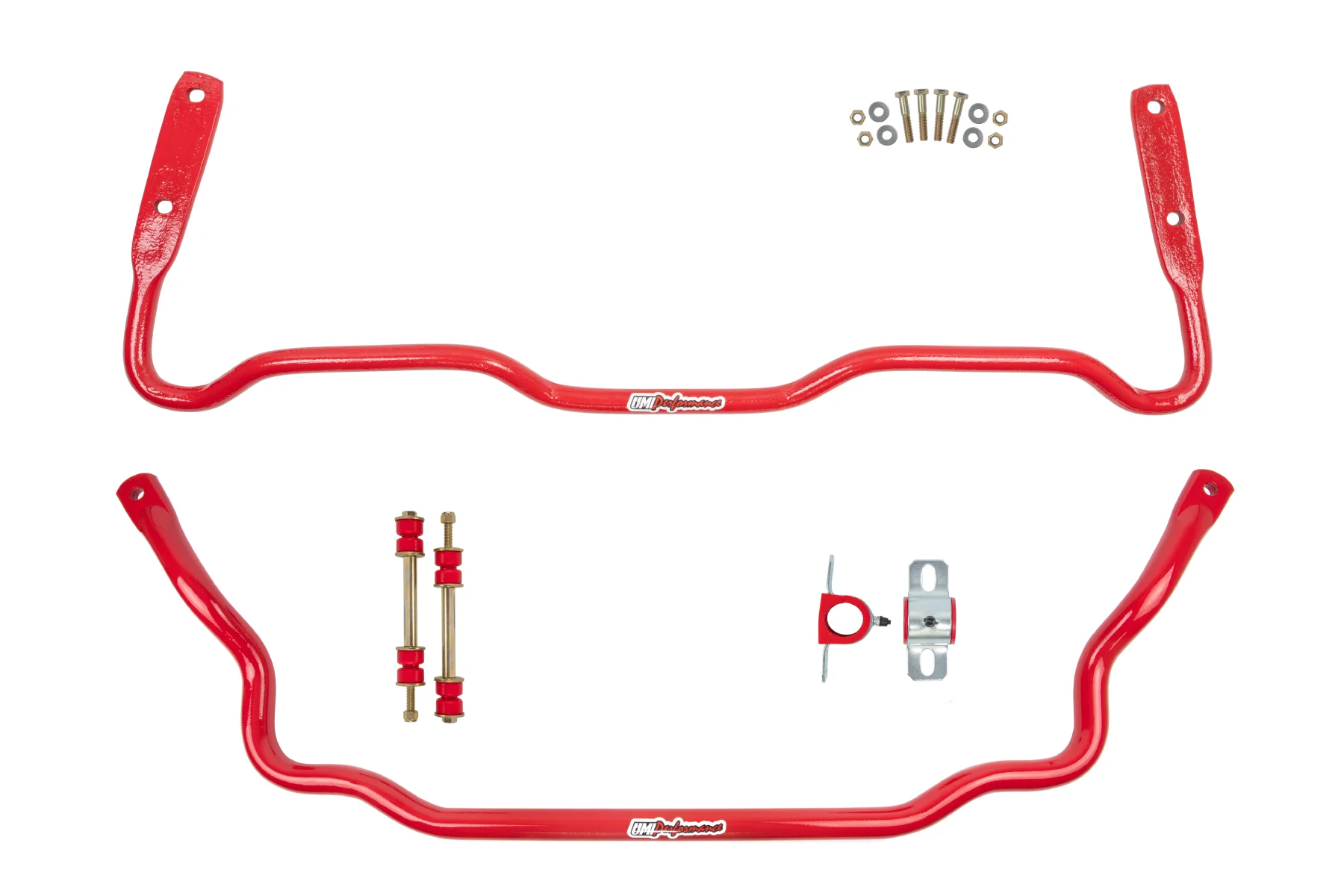

Kit Includes:

• Front sway bar (PN 3635) with polyurethane bushings and end links
• Rear sway bar (PN 3634) with Grade 8 mounting hardware

Construction & Finish: UMI sources premium North American steel and applies a high-quality Tiger Dry Lac powder coat finish for lasting corrosion resistance. All components are designed and manufactured in the USA.

Note: Does not fit wagon models. For installation on stock control arms without factory sway bar provisions, optional bracket kit PN 3636 is required (sold separately).
