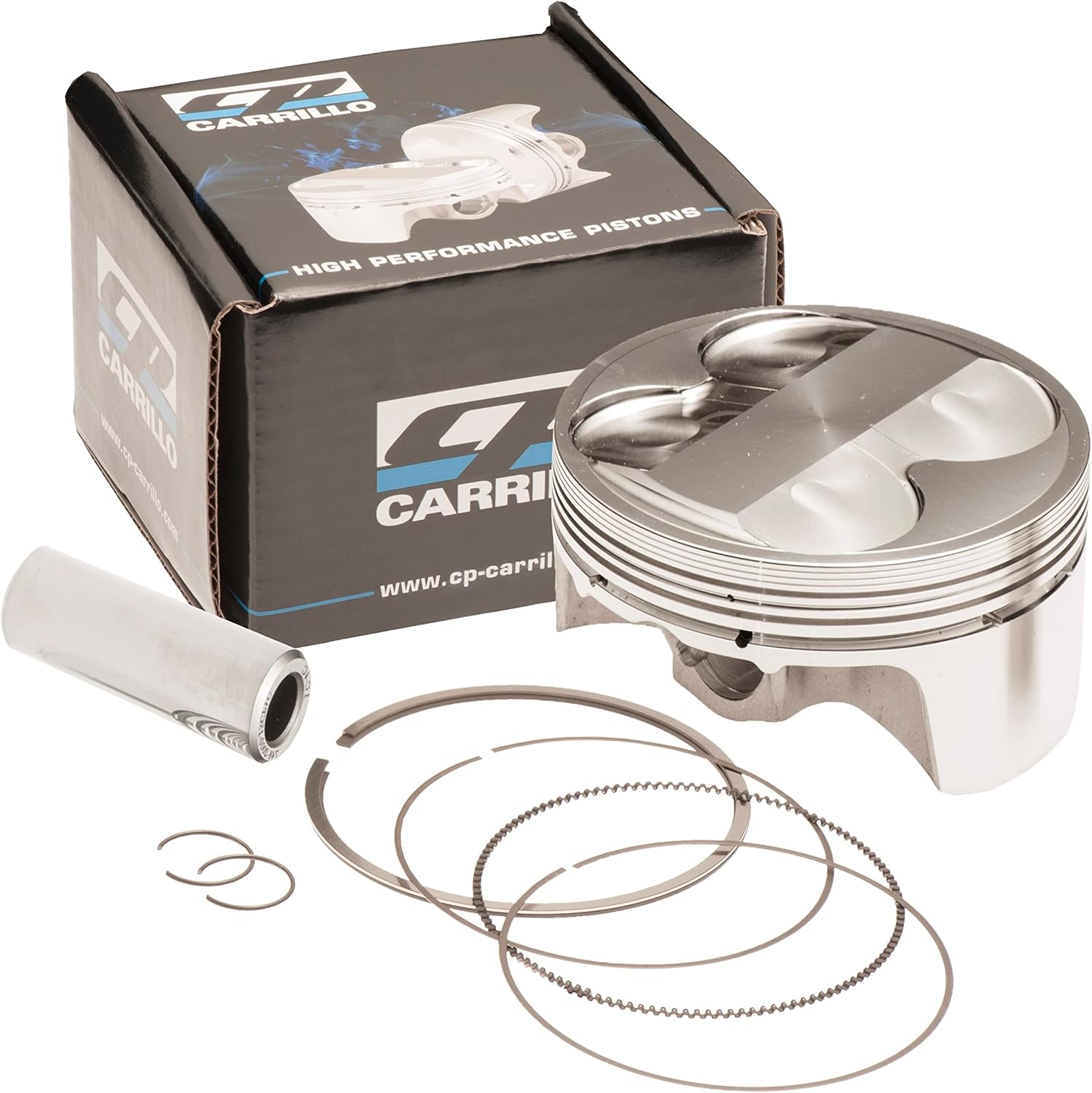

Carrillo M4033 High-Performance Piston Kit for 2008-2015 Suzuki Hayabusa 85mm Bore

The Carrillo M4033 is a high-performance forged piston designed specifically for 2008-2015 Suzuki Hayabusa GSX1300R motorcycles. This premium piston features an 85mm bore size (+4mm oversize) and is engineered for a 65mm stroke, creating a displacement of 1475cc when used as a complete set. With a 14.0:1 compression ratio and gas ports, this piston is built for maximum power output in high-performance and racing applications.

Key Specifications:

• Bore Size: 85mm (+4mm oversize)
• Compression Ratio: 14.0:1
• Stroke: 65mm
• Displacement: 1475cc (complete set)
• Gas ported design for improved performance
• X-style forging for greater strength and reduced weight
• Full radius dome design

Compatible Components:

• Ring Pack: CPN-3347 (3-ring design with gas nitrided steel top ring)
• Wrist Pin: 708-2000-12CP1C (18mm)
• Pin Locks: 708x050 SWL
• Connecting Rod: Carrillo 4721
• Gasket: C8659

CP Carrillo pistons incorporate advanced forging technology and full radius dome designs to deliver exceptional strength, durability, and performance. Engineered for demanding applications including high-compression street builds and racing, these pistons are precision-machined to exacting tolerances. Note that pistons and rings are typically sold separately, and this part number represents a single piston.
