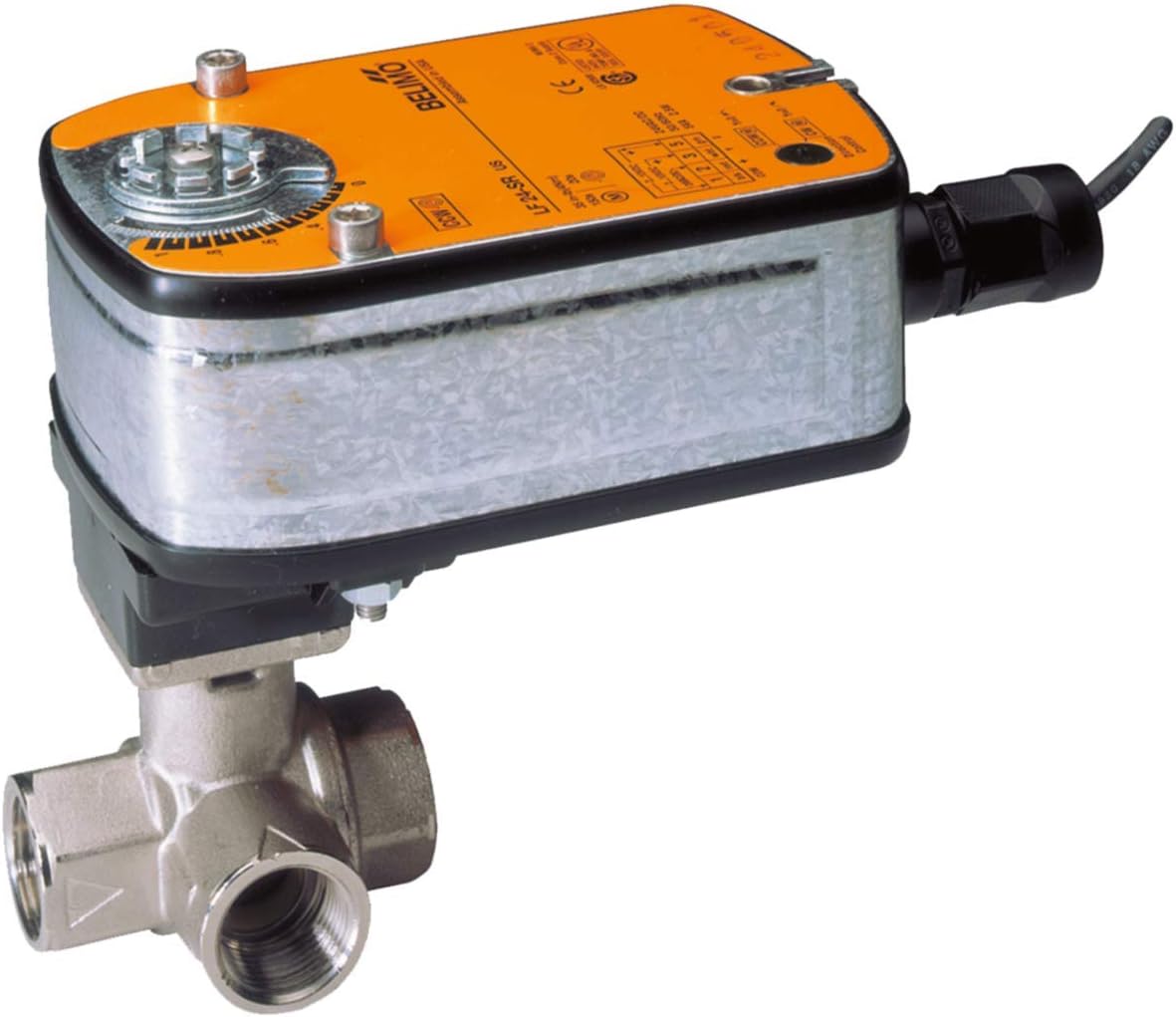

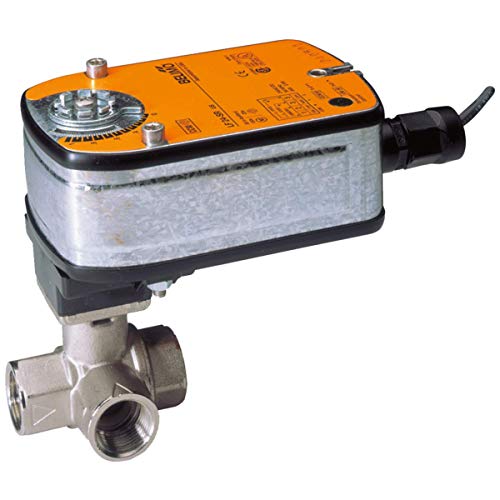

Belimo B325L+LF120-S 1" 3-Way Ball Valve with Actuator 11 Cv 120V On/Off Spring Return

The Belimo B325L+LF120-S is a complete valve and actuator assembly designed for reliable control in HVAC and building automation systems. This 1-inch three-way ball valve features an integrated spring return actuator for fail-safe operation.

Key Specifications:

• Valve size: 1 inch (DN 25)
• Configuration: 3-way ball valve
• Flow coefficient (Cv): 11
• Power supply: 120V AC
• Control type: On/Off (floating control)
• Spring return for fail-safe positioning
• One auxiliary switch for status indication

Features and Benefits:

• Spring return actuator ensures valve returns to safe position upon power loss
• Compact ball valve design provides tight shut-off and reliable performance
• Auxiliary switch enables remote monitoring and integration with building automation systems
• Belimo quality construction for long service life in demanding applications
• Suitable for heating, cooling, and mixing applications in commercial HVAC systems

This valve assembly is ideal for zoning applications, mixing circuits, and changeover duties where reliable on/off control with spring return safety is required.
